9. Convergence
3
6

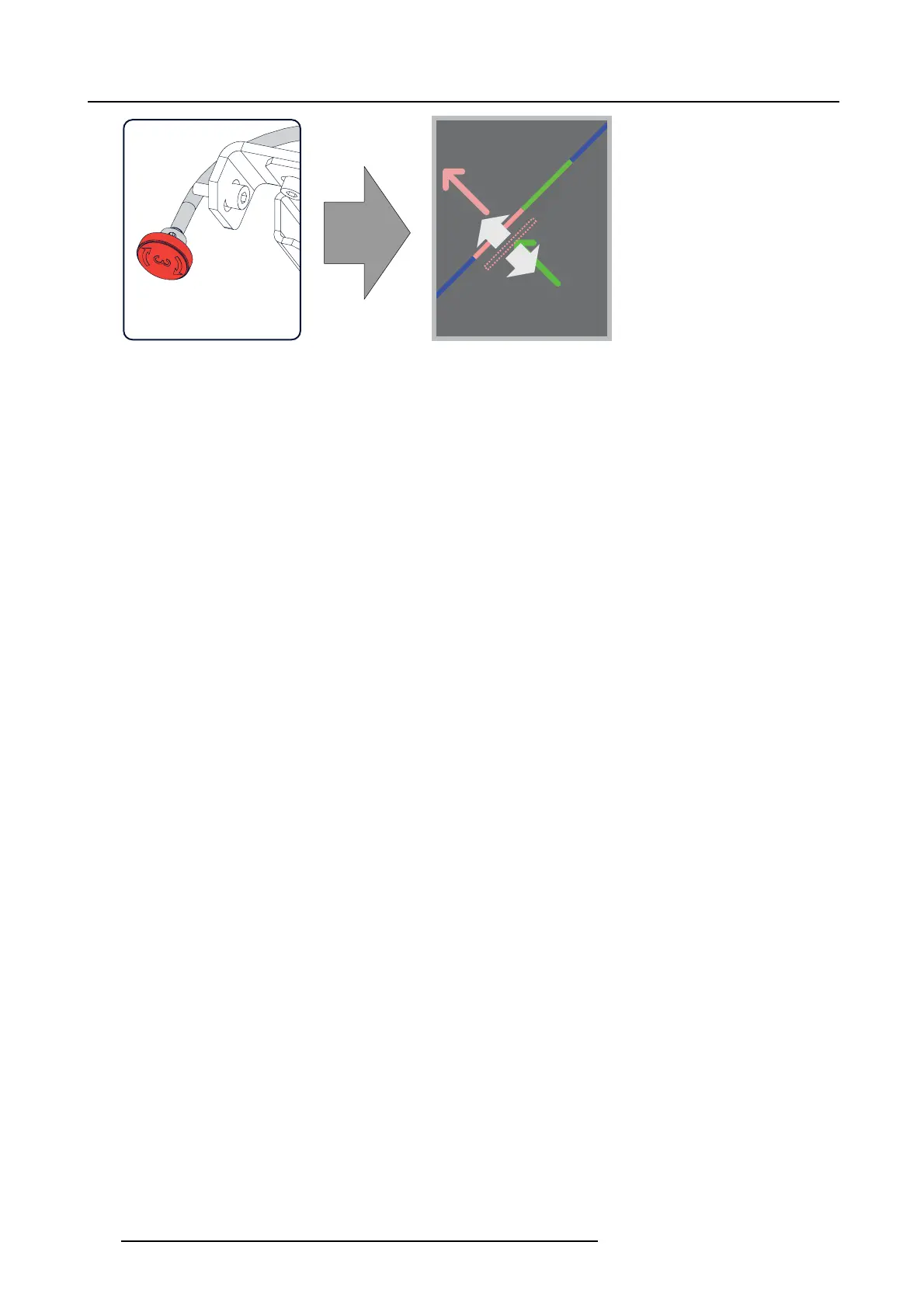

Image 9-7
Clockwise turning will move line upwards.
4. Repeat step 2 and step 3 until coincidence is obtained of the red pattern in the lower left and upper right of the pr ojected image.
5. Repeat from step 1 until full coincidence is obtained of the red pattern in the center, lower left and upper right of the projected
image.
164
R5905043 DP2K-12C/11CX 19/02/2018
