11. Lenses and Lens holder
10
11

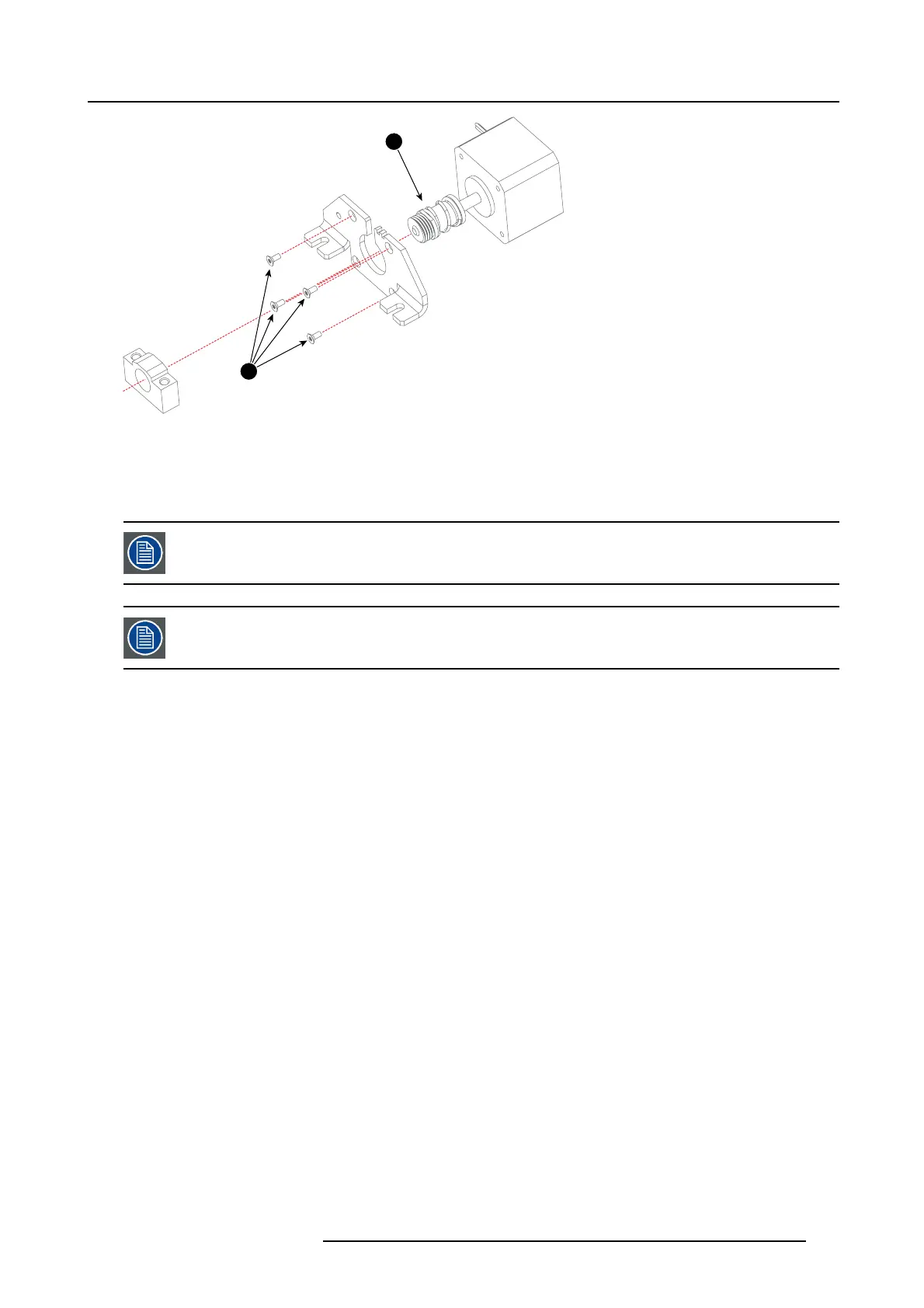

Image 11-27
4. Reinstall the stepper m otor on the as sembly as illustrated in image 11-26. Fasten the four screws (reference 9) with a 3mm Allen
wrench.
5. Reinstall the front plate from the Lens Holder. Use a 13mm open end wrench to fasten the four big nuts (reference 7 image 11-25).
Fasten the big nuts crosswise bit by bit. Ensure that the u pper two rods and the lower left rod contain a big spring.
Proceed with reinstalling the Lens Holder. See procedure "Install the lens holder", page 189.
The Lens Holder has to be ad justed after installation. See p rocedure "Scheimpug adjustment", page 192.
R5905043 DP2K-12C/11CX 19/02/2018 197
