15. Power input

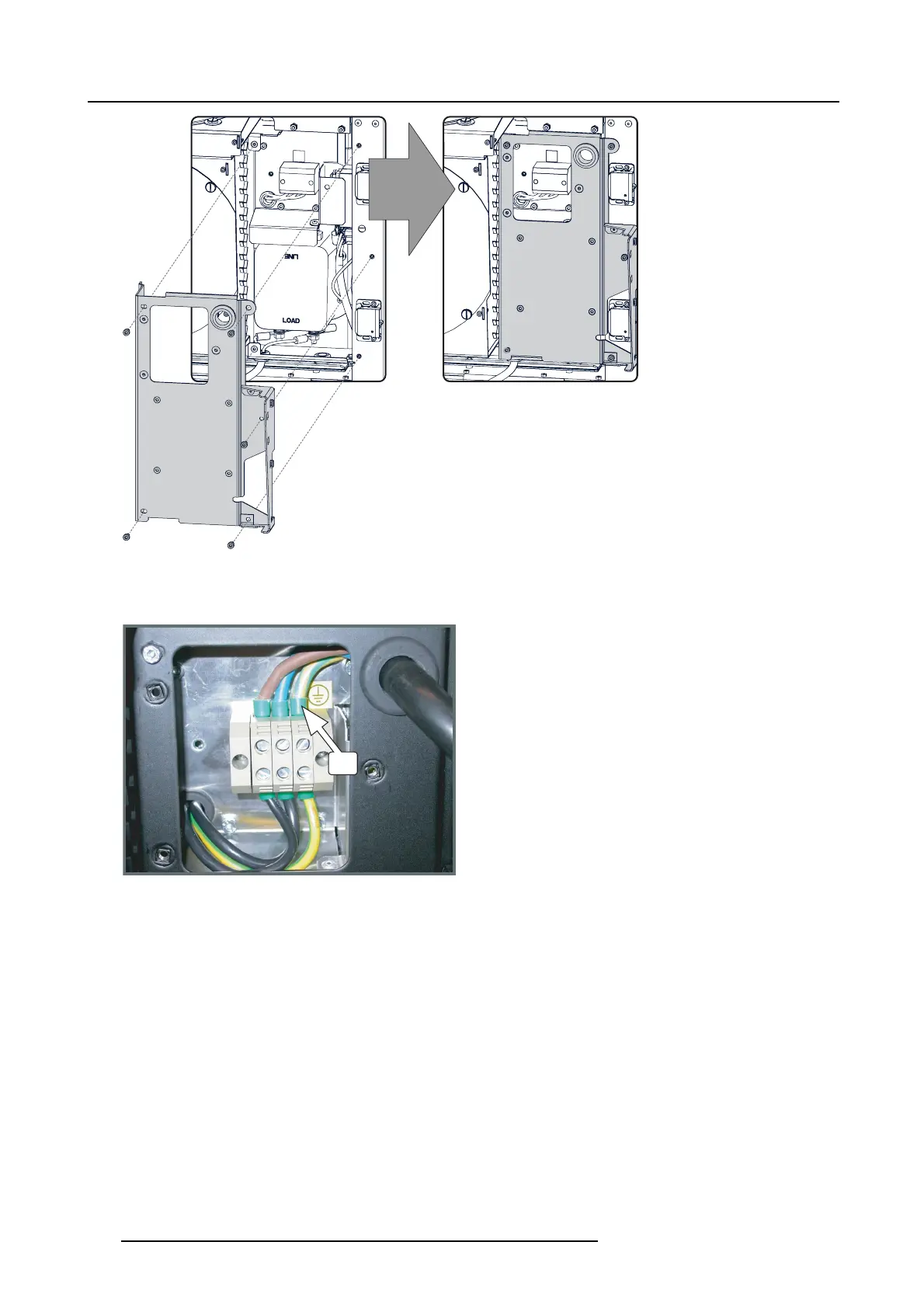

Image 15-11
Mains input c over, ins t allation
4. Guide the AC pow er cord through the cable gland and c onnect the wires to the 3-terminal strip as illustrated.
Warning: Always connect first the ground wire (PE).
PE
Image 15-12
Wire connections
5. Reinstall t he cover of the main AC compartment.
276
R5905043 DP2K-12C/11CX 19/02/2018
