TotalAlert Innity™ HTM Medical Gas Notication System
4107 9016 60.01
1.0 Introduction
1.1 Product Identication
Each alarm is identied by a Reference number, Item
number, and Lot Code.
Installation procedures vary depending on the alarm
conguration.
The product ID label is located on the inside of the
alarm back box (Figure 1.1).
1.2 User Interface Layout
1.2.1 TotalAlert Innity
™
Features:
• 8” Touch Screen LCD Display.
• User-dened Instructions for Hospital Response
Plan
• 10/100base-T Wired Ethernet Connection
• WIFI 802.11 b/g/n interface
• Embedded Web server for viewing alarm
information through a computer or tablet
• Electronic Notication of Alarms through e-mail/
text messaging
• History Event Log for Documentation
• Electronic User-dened Gas Labels for any mixes
• Electronic User-dened Location Labels
• Ability to “mirror” alarms from other panels using
the wired Ethernet interface
Power LED Alarm System
Fault LED
Mute ButtonAudible
Warning
Home
Button
Mute
Indicator
LED

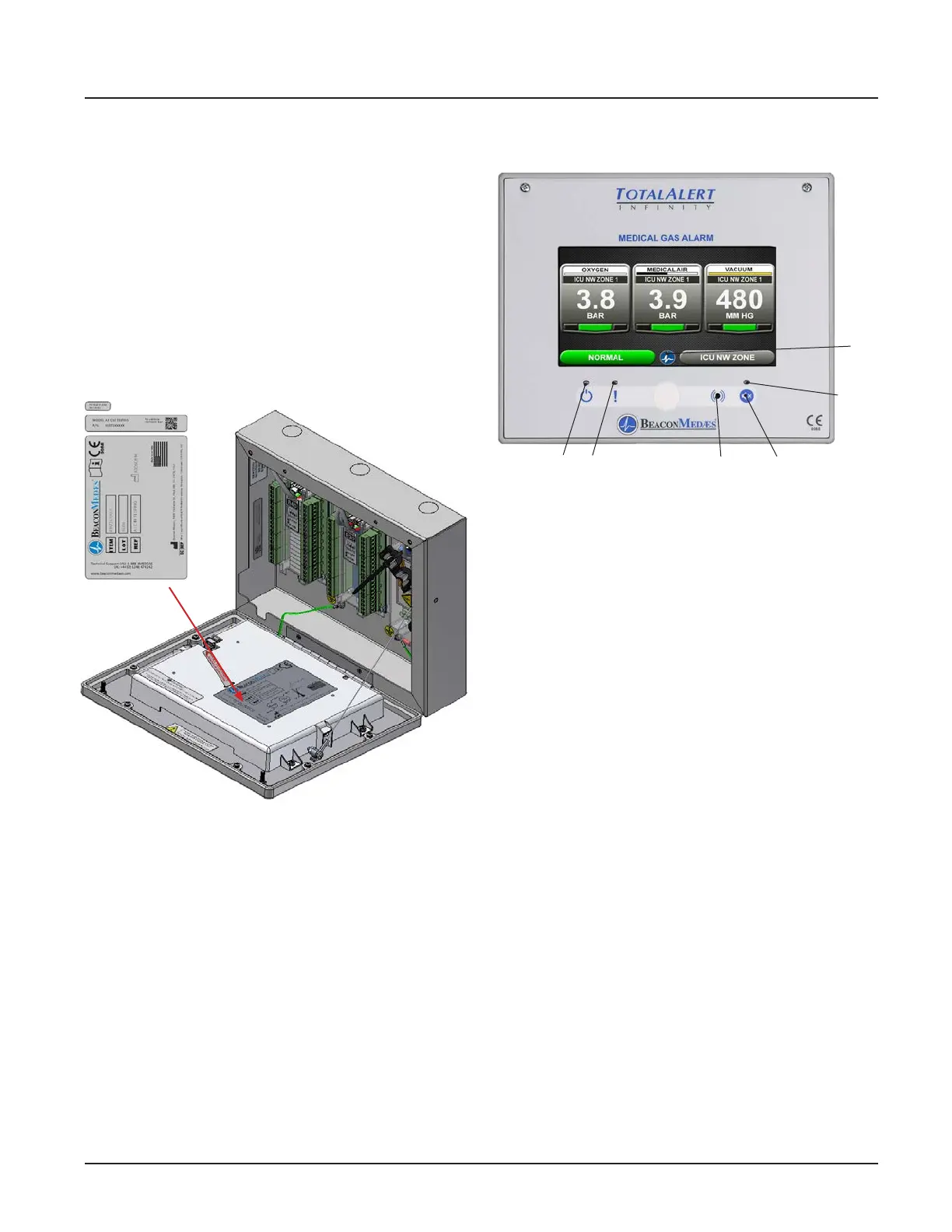

Figure 1.2: User Interface Layout
Figure 1.1: Product Identication Labels
