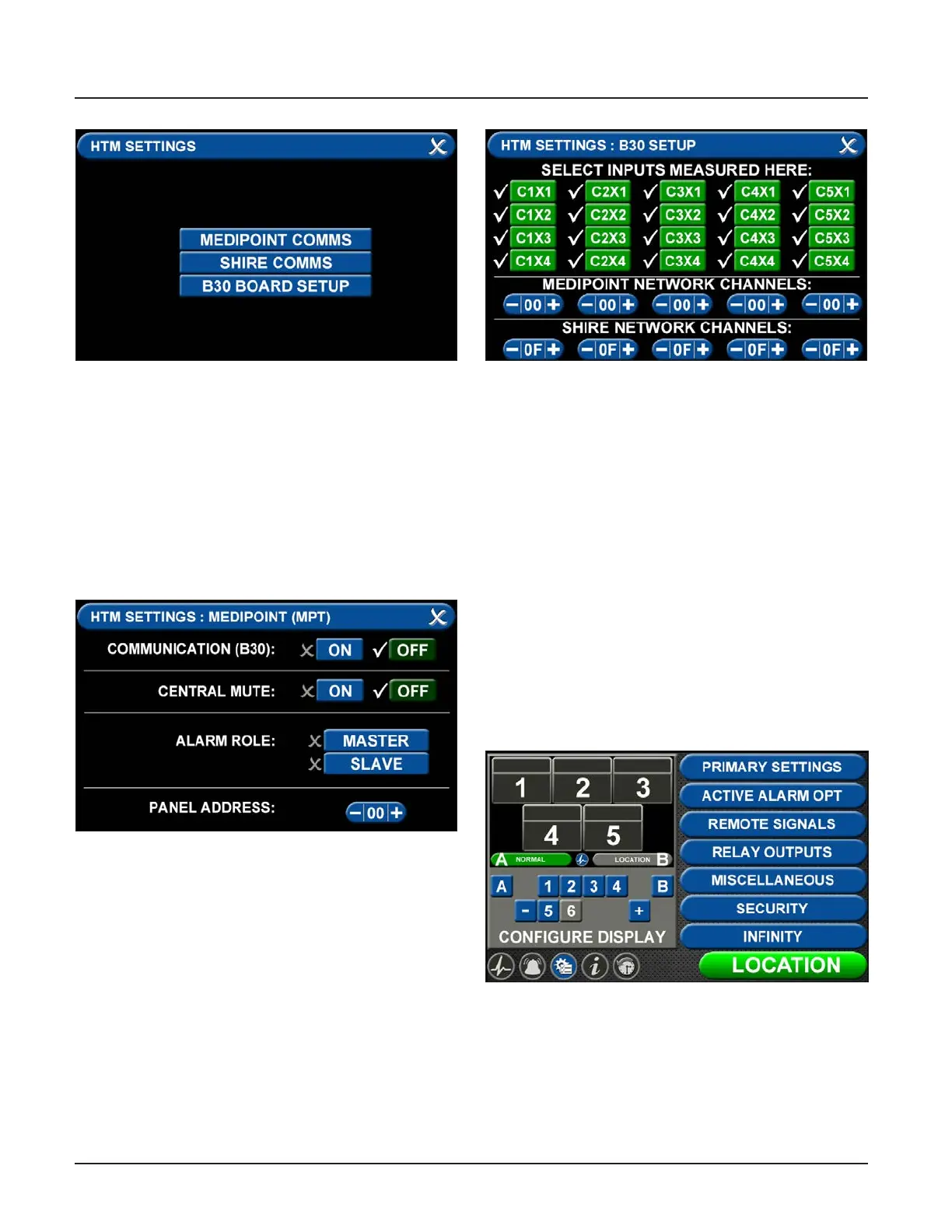

Figure 154: Medipoint Network Setup
• To communicate with a Medipoint network, press
the MEDIPOINT COMMS tab.
• Communication (B30) can be toggled OFF or ON by
pressing the correlating tabs. Alarm Role between
MASTER and SLAVE can also be selected by press-
ing the correlating tab.
• Setup the PANEL ADDRESS by pressing the + or -
tab to the correct setting.
• Press save icon to complete setup.
Figure 155: Medipoint Network Setup
• To transmit and recieve signals, the HTM Settings
tab has to be initialized (Figure 153).
• Press the B30 BOARD SETUP tab (Figure 154).
Figure 156: Medipoint Network Setup
• Select the inputs for signals that will be wired
locally to the alarm.
• Individual tabs can be toggled o and on by adding
or eliminating the check mark by the inputs where
you are landing the wires on the B30 board. Also,
if you are transmitting MEDIPOINT signals, set the
appropriate network channels by pressing the + or
– tab to the correct setting.
• Press save icon to complete setup.
4.8.3 Medipoint Network Gas Badge
Setup
To setup gas badges to communicate on the Medipoint
network:
• Go to conguration screen and select the gas
badge.
Figure 157: Conguration Screen
• Touch ALARM POINT tab to congure gas badge
