TotalAlert Innity™ HTM Medical Gas Notication System
4107 9016 60.01
Note:
Maximum wired input signals allowed is 20.

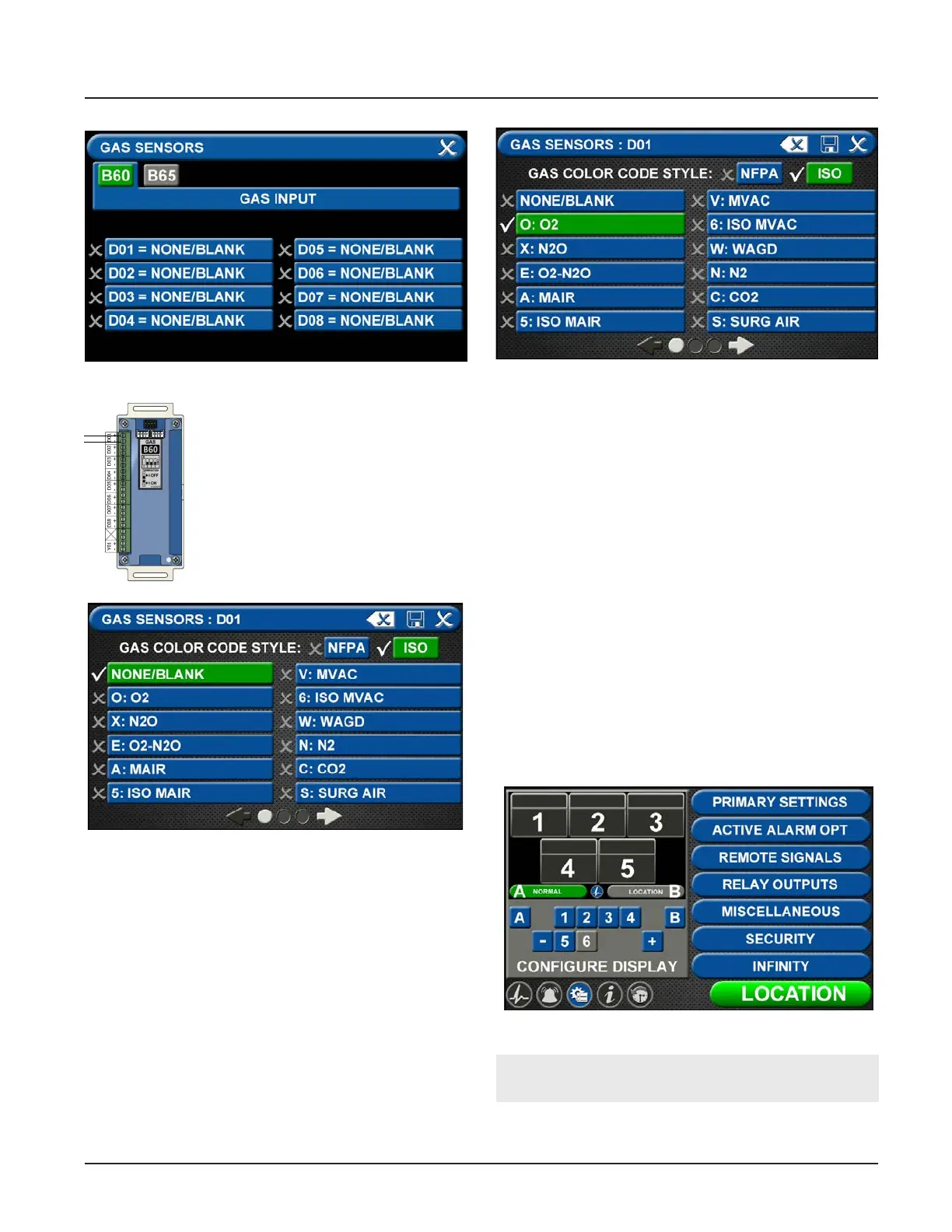

Figure 60: Conguration Screen
Select the gas that is wired into the D01 input on the
GAS INPUT / B60 board. Touch the right and left arrows
at the bottom of the screen to scroll through additional
gas choices, including options to create custom mixes.
Figure 57: Gas Input Screen
Up to eight dierent gases may be
selected on the GAS INPUT screen.
These gases correspond to the digital
gas sensors wired into the GAS INPUT
/ B60 board. To select the rst gas,
touch the D01 = NONE/BLANK tab.
Figure 58: Gas Sensors Screen
Touch the Save button when you see a check beside
your selection (If an alarm sounds, press the Mute
button on the panel under the screen and continue
with setup).
Repeat starting at step 4.57 to add additional gases.
Touch the X button in the upper right to close the GAS
SENSORS screen and return to the PRIMARY SETTINGS
screen. Touch the X button in the upper right to close
the PRIMARY SETTINGS screen. The alarm will retain
your information.
4.4.2 Conguring Source Badges
The TotalAlert Innity
™
central alarm is designed to
allow the setup and monitoring of 6 source badges.
Forty source locations with up to 8 source signal inputs
for each location can be congured (maximum of 20
locations per gas type).
To congure alarm points in the rst badge, touch the
Figure 59: Gas Sensors Selection
