1-6
TotalAlert Innity™ HTM Medical Gas Notication System
4107 9016 60.01
1.5.2 Area Alarms

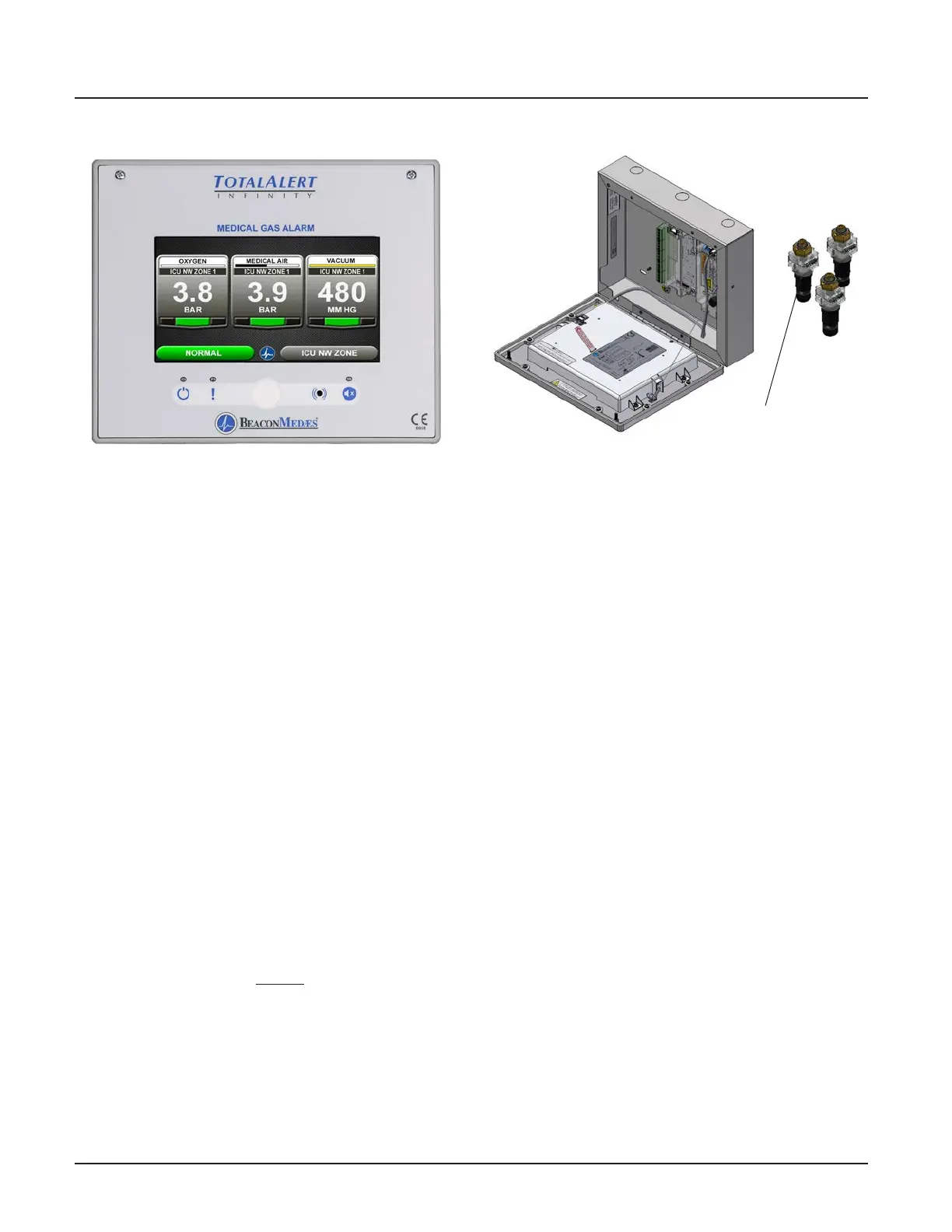

Figure 1.12: Remote Sensors
Sensor modules are
mounted outside alarm
backbox
Figure 1.11: Area Alarm Front Panel
Area alarm panels include the following modular
components:
• Gas Sensor input board (B60) that are used for up
to 8 digital sensors modules
• Digital gas sensor module (B06), can be mounted
remotely on the gas pipeline. A maximum of 8 digi-
tal gas sensor modules are allowed per Area alarm
panel.
Area alarm panels may be congured for 1 to 8 gas
inputs. If alarm is congured with gas inputs, the
sensors will be included for connection to pressure/
vacuum pipeline.
Sensors have a 1/4” BSPP male tting for attaching to
the hospital pipeline.
Model Number Scheme:
____ - _______ - ____
Series - Conguration - Retrot
See Model Number Chart in Section 1.6.
Example:
TotalAlert Innity™ Area Alarm
Example Model Number: A3-A10
