6-2
TotalAlert Innity
™
HTM Medical Gas Notication System
4107 9016 60.01
Part Number Gas Sensor Assembly
4107 2131 25 O2 Sensor Assembly
4107 2131 26 N2O Sensor Assembly
4107 2131 28 MedAir Sensor Assembly
4107 2131 32 MedVac Sensor Assembly
4107 2131 35 N2 Sensor Assembly
4107 2131 30 CO2 Sensor Assembly
4107 2131 31 HE-O2 Sensor Assembly
4107 2131 29 LAB-AIR Sensor Assembly
4107 2131 33 LAB-VAC Sensor Assembly
4107 2131 34 Surgical Air Sensor Assembly
4107 2131 27 O2-N2O Sensor Assembly
*Table 1: Gas Sensor Module Options
(Service replacement only)
Cleaning:
Use clean dry microber cloth or soft lint-free cloth
to remove any smudges located on the touchscreen.
Make sure not to apply too much pressure on the
screen when cleaning it. Never use paper towels or
tissue paper which contain wood bers that will scratch
any plastic surface.
Periodic Maintenance:
Inspect the alarm periodically and perform a self test
(see Section 4.1.6 - Information Screen). This ensures
proper operation of the alarm. Any damaged com-
ponents inside the alarm should be replaced by an
authorized BeaconMedæs service technician.
For TotalAlert Innity
™
alarms, Order Service Replace-
ment Kit by calling Customer Service at 1-800-4MED-
GAS.
Batteries:
The backup batteries and the coin cell battery on
the Advanced Module needs to be replaced every 5
years.
Do Not Dispose of in General Waste”
Follow local ordinances related to the proper dis-
posal of batteries.

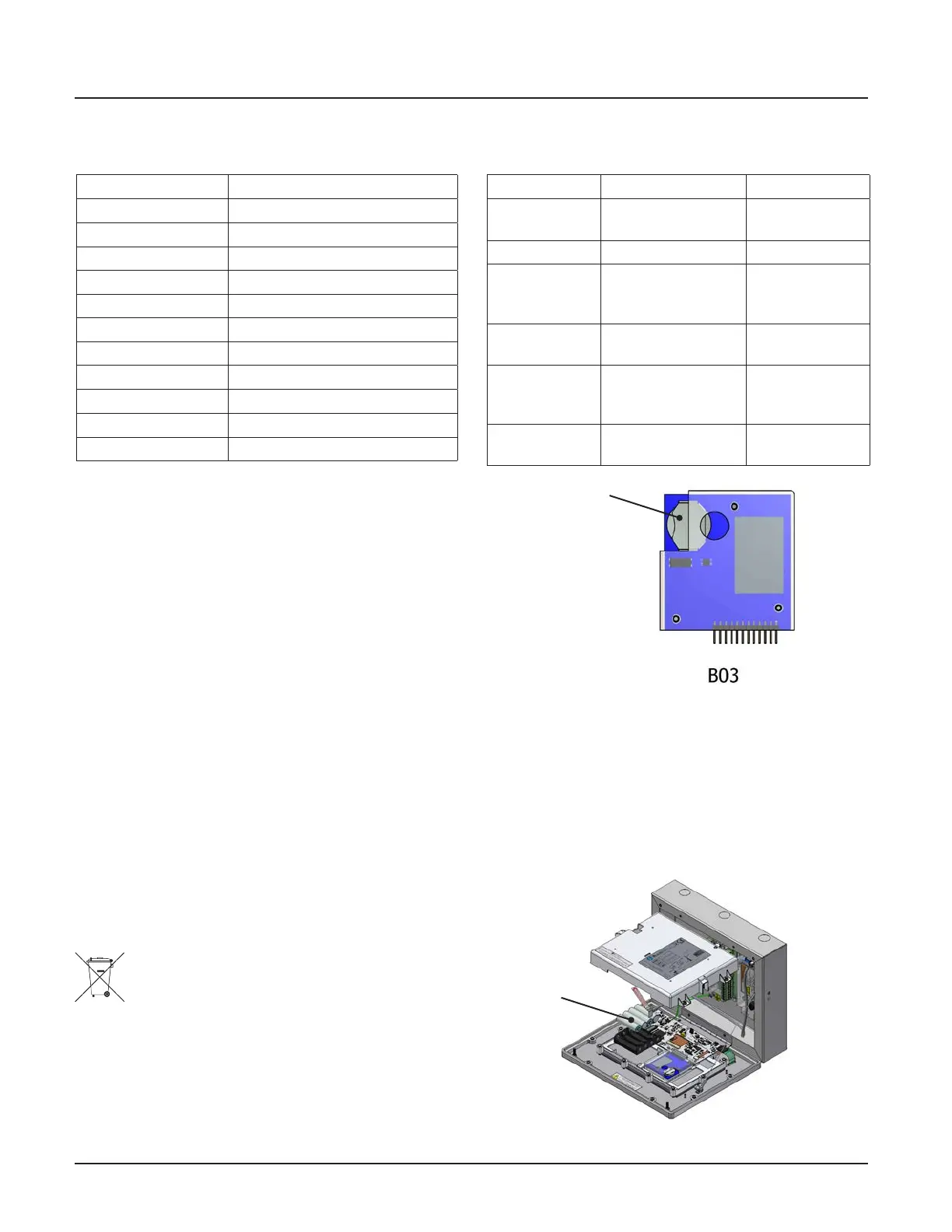

Figure 6.2: Coin Cell Battery
Coin Cell
Battery
Part Number I/O Boards Description
4107 4016 36 B03 Advance
Module
Advanced
features board
4107 4016 37 B05 Power Module Power supply
4107 4016 40 B30 (HTM Signal
Input Board)
20 Line Contact
Monitoring
Inputs
4107 4016 41 B4X (Relay Board) 16 Relay
Outputs
4107 4016 42 B50 (4-20mA
Combination
Board)
4 Inputs for
4-20mA Signals
4107 4016 43 B60 (Gas Input
Board)
8 Gases
**Table 2: I/O Boards
(Service replacement only)
Figure 6.3: Rechargable Battery
Backup
Battery
Pack
Backup Battery Testing:
Open front panel and locate the grey power cable con-
necting to back of front panel. Disconnect grey cable
from front panel (power will be removed at this point).
If batteries are working, power LED light located on
front panel will be on. If power LED light is not on, bat-
tery’s need to be replaced.
