Description - Beacon Details View
5
Course deviation indicator view:
CDI units, vertical bar range and CDI mode of indications are
settable see "Table 11: Mission Mode - Description Config Menu
View" page 104.
DIST: 4-digits distance to the target.
ETA: 6-digits is equal to (ETA + UTC offset) see "Table 11:
Mission Mode - Description Config Menu View" page 104.
If CDI is invalid arrow and deviation value is not visible.
If distance to the target is invalid: ---.- is shown.
If ETA is invalid or more than 23:59:59: --:--:- is shown.
Long push to rotary knob: current device position is stored as
fixed position. New CDI and navigation values are calculated.

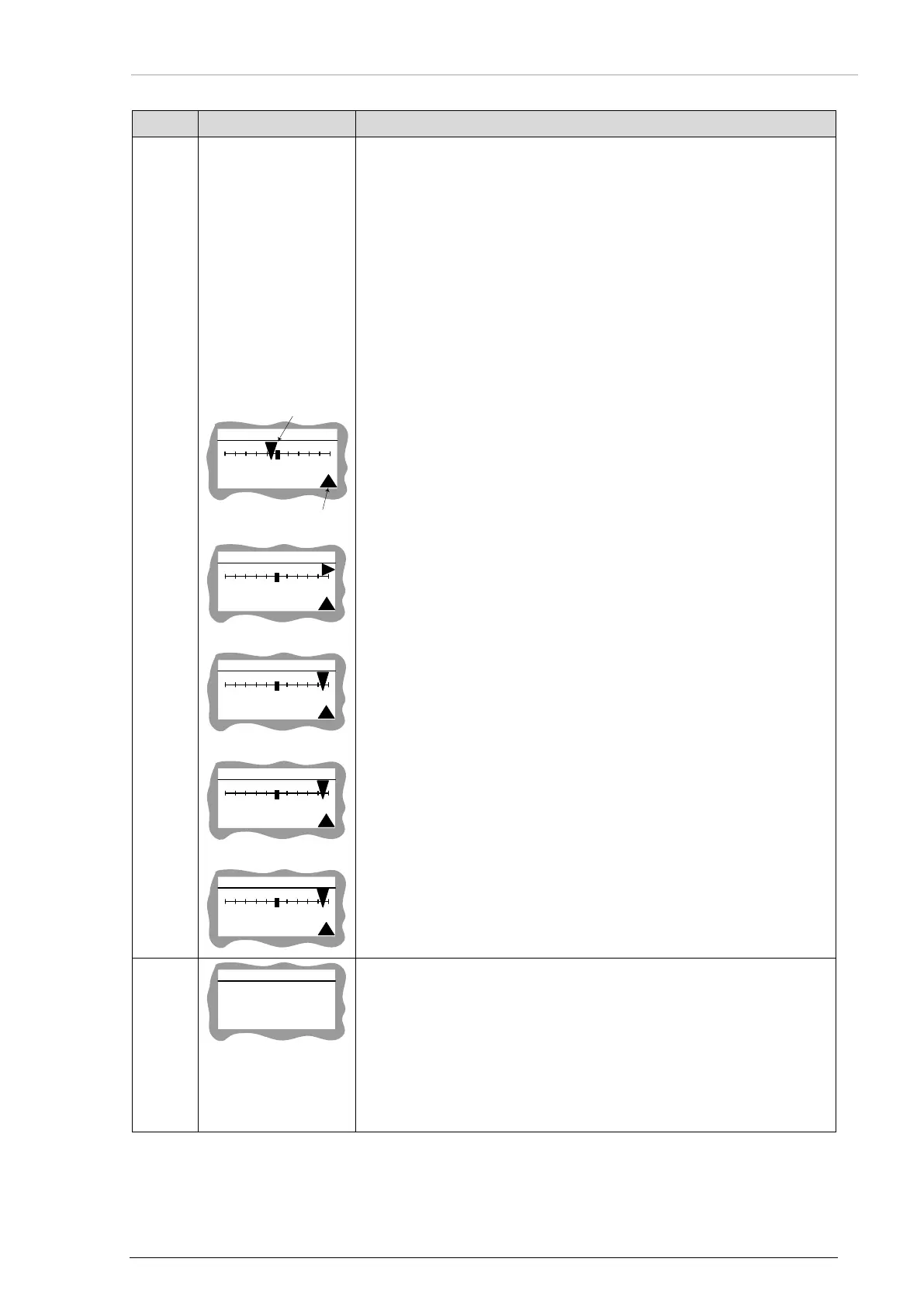

a)
B 03/15
5/6
031.6 NM
DIST:
ETA:
01 : 20 :56
-2
NM
CDI
TO/
FROM
a) CDI position (arrow on screen a)) and TO/FROM indicator
correspond to the course deviation see "Course Deviation Indicator
(CDI) – Beacon/NavPoint detailed Menu" page 94.
b)
B 03/15
5/6
031.6 NM
DIST:
ETA:
01 : 20 :56
+48 NM
b) If CDI is out of range – arrow changes its orientation (screen b))
and shows direction of required course correction to eliminate
deviation.
c)
B 03/
15
5/6
031.6 NM
DIST:
ETA:
01 : 20 :56
+18 NM
c), d) CDI in distance mode (km/NM) value ranges [-999…999] of
selected units (screens c), d)).
d)
B 03/15
5/6
031.6 km
DIST:
ETA:
01 : 20 :56
+18 km
e)
B 03/15
5
/6
031
.6
NM
DIST:
ETA
:
01
: 20 :
56
+18 DEG
e) Number visible near the arrow corresponds to CDI value. For
angular CDI value ranges [-90…90] degrees (screen e)).
6
B 03/15
6/6
FT:
LT:
26 :: 01 : 20 :56
26 :: 05 : 35 :18
[ DD :: HH : MM : SS ]
Timestamps for current beacon:
Screen shows time markers for currently selected beacon in format:
DD – days, HH – hours, MM – minutes, SS – seconds.
FT: equal to First Message Detection Time + UTC Offset – time
where first signal from the beacon is received.
LT: equal to Last Message Detection Time + UTC Offset – last
time where beacon was detected.
If values are invalid: --::--:--:-- is shown.
Table 7: Mission Mode - Description Beacon Detail View
