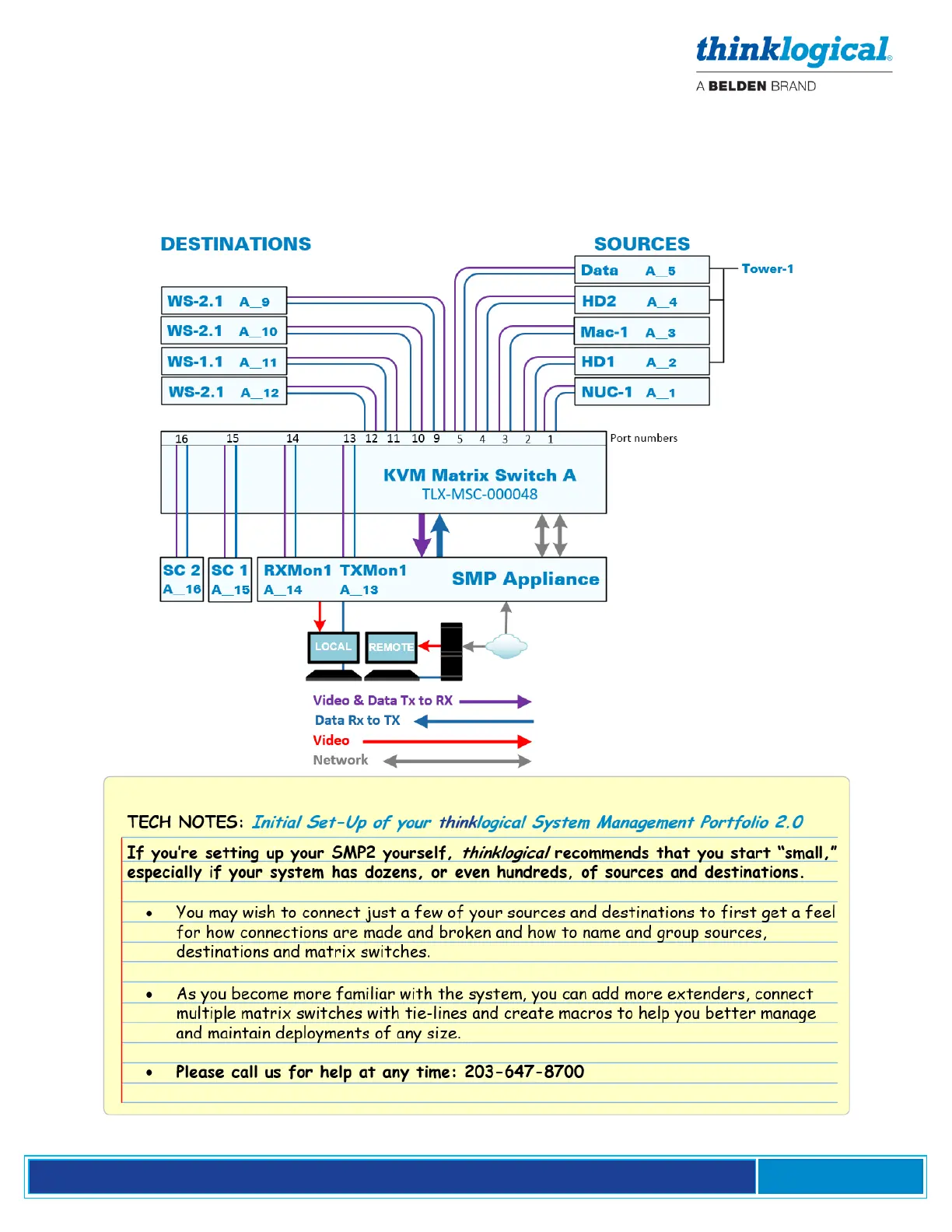

In the following scenarios we will use a typical, but not overly complicated, Thinklogical deployment
with one Matrix Switch (also referred to as a Switch or Router) and four Sources (NUC-1, Mac-1,
Tower-1 HD1 and HD2 with fiber for a Data module), plus TX Mon1, RX Mon1 from the SMP Appliance
and three Destinations (one fiber at Work Station-1.1, two fibers at Work Station-2.1 and one fiber at
Work Station-2.2), as shown below. Two SMP Client modules (SC1 and SC 2) are used for initial
configuration only. This is the configuration represented by most of the screen-shots that follow.
