The TIE LINES Tab
Tie lines provide a means for connecting sources and destinations across two or more Matrix Switches.
This tab displays the tie lines that connect Matrix Switches together. Tie lines are typically bi-directional,
providing video and data Tx to Rx and back-channel data Rx to Tx. (SMP2 is not supported on the
VX40, VX160 or VX320 Matrix Switches due to hardware restrictions.)

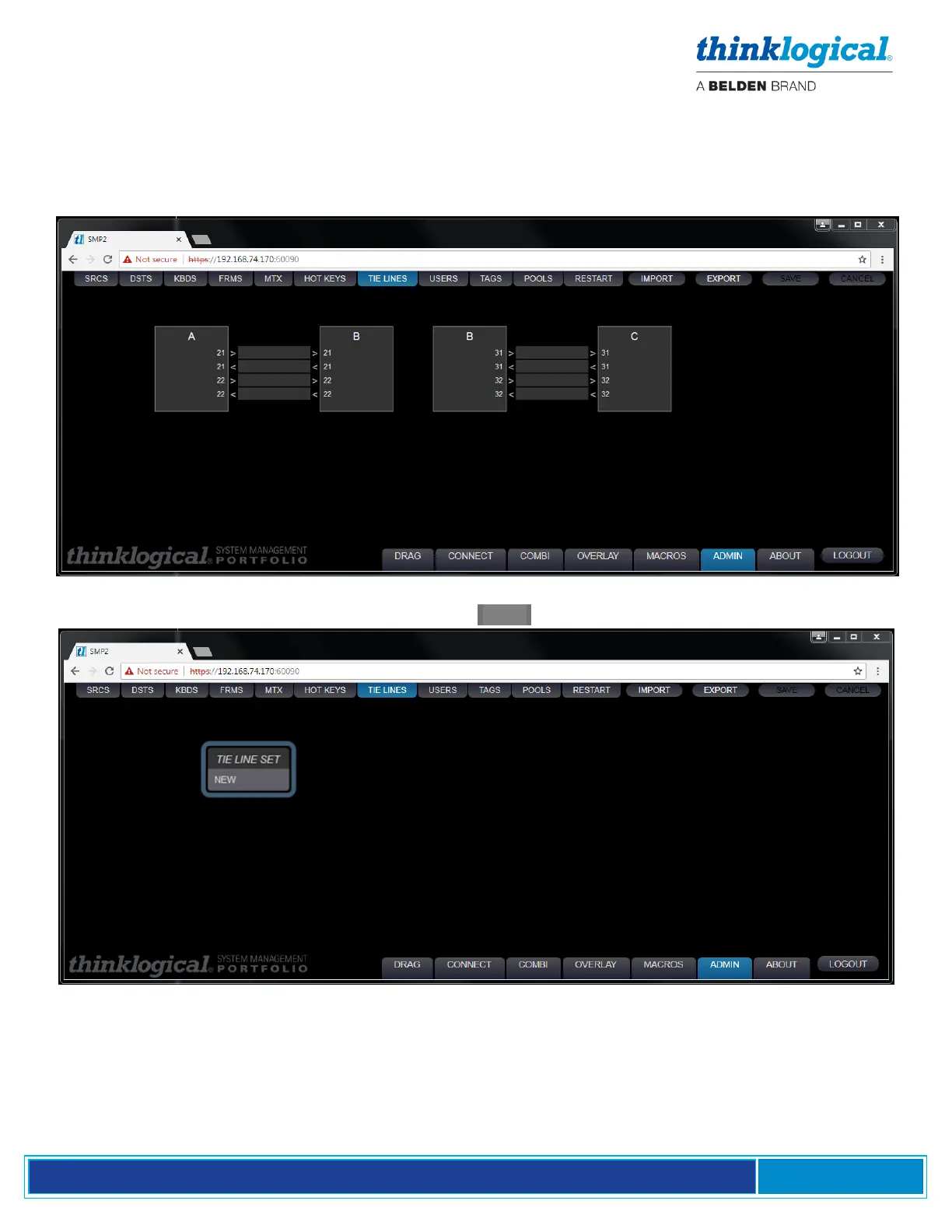

To create tie lines, right click in the field and select NEW .
