Cable Connection Diagram

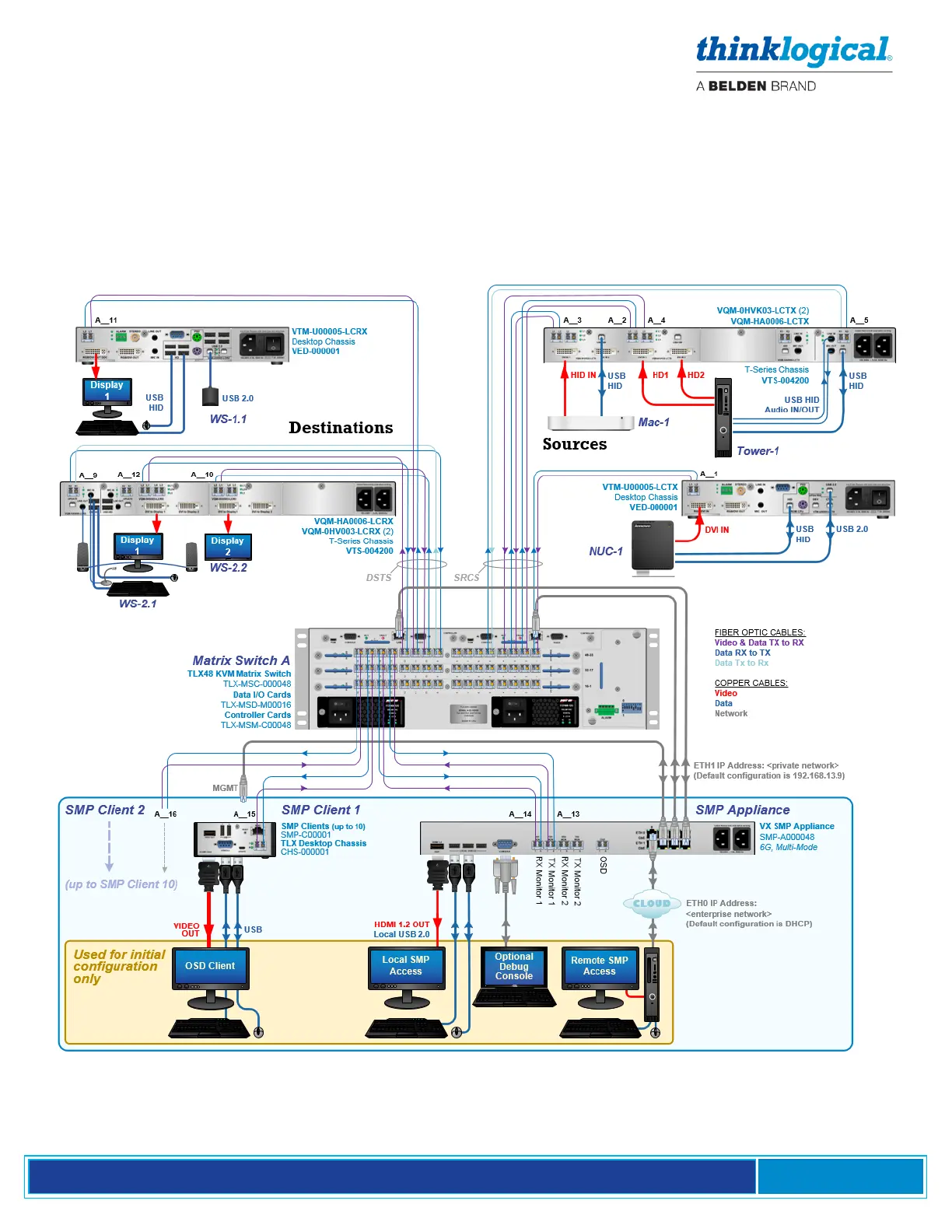

Depicted below is a simple, but typical 6G system with four Sources (NUC-1, Mac-1 and Tower-
1 HD1 & HD2), three Destinations (WS-1.1, WS-2.1 and WS-2.2), TX Mon1 and RX Mon1 from
the SMP2 Appliance, through Matrix Switch A (TLX48), all of which are managed by the SMP
Appliance (below, in blue). Two SMP Clients are used for this initial set-up. (Can use up to ten.)
This is the configuration that is referenced in most screen-shots and other examples throughout
this document.
