HYDRAULIC SYSTEMS
Studio ti 03312 540-04usa
189

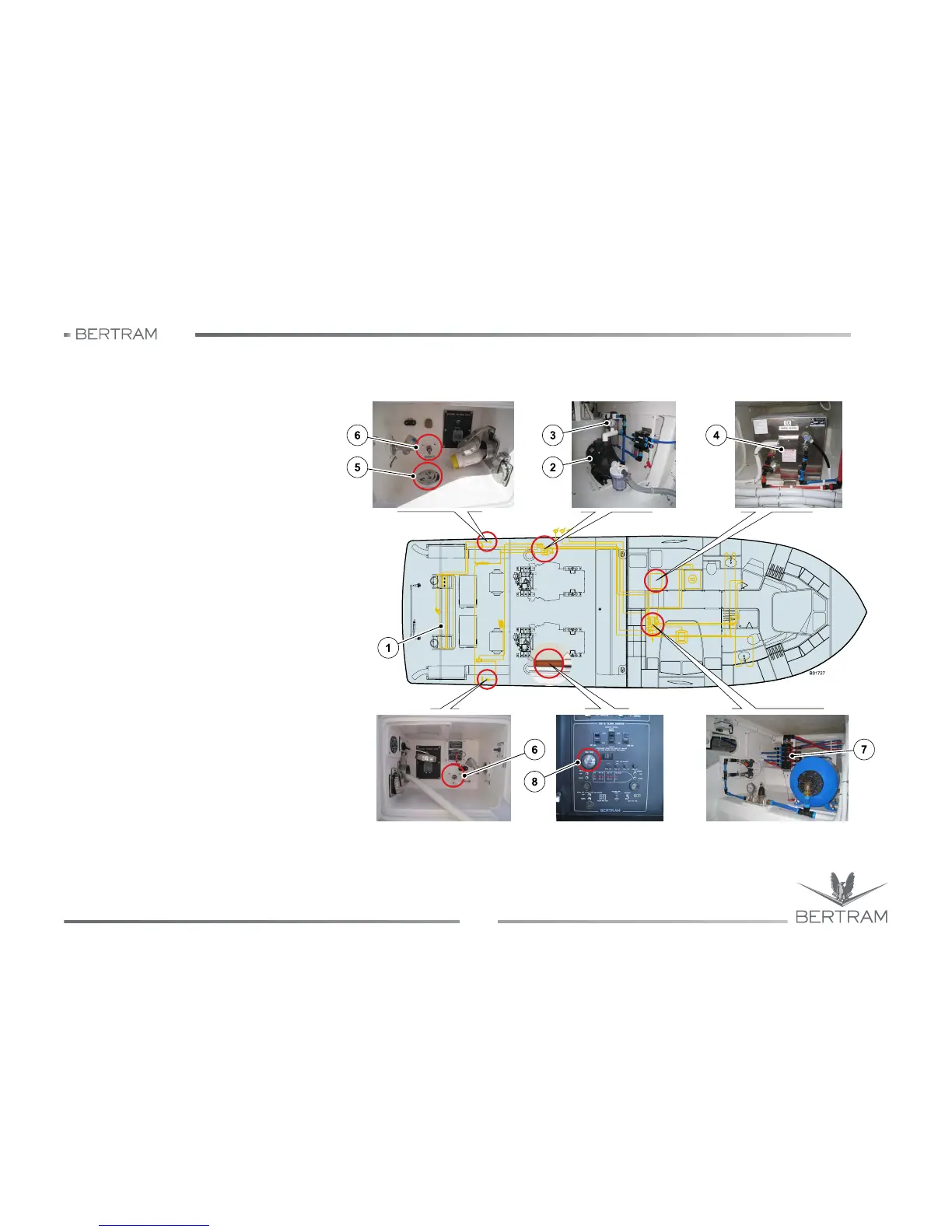

1. Tank
2. Fresh water pump
3. Fresh water pump
4. Water heater
5. Fill fitting
6. Shoreside water inlet with quick-connect
fitting
7. Distribution manifolds
8. Tank water level gauge on the main electric
panel in the salon
Distribution manifolds and
pressure switch
Tank level gauge
Pump & filter
Shore water inlet and
fitting
Water heater
Shore water inlet
