Bertram 540 - Page 388

R0.969
2.219
8.250
6.500
0.125
BYD 143137
APPV. BY DATE DESCRIPTION LET.
REVISIONS
AS "HVL1".
BE EASED.
#30-7001-OM.
TOLERANCES
UNLESS OTHERWISE SPECIFIED
ANGULAR: 1/2
DECIMAL : .0156"
+
+
_
_
2. FINISH: PANEL TO BE FLAT. FACE VERTICAL
GRAINED 240 GRIT. EDGE & CORNERS TO
3. PAINTING: PRIME COAT-ALODINE OR IRRIDITE.
FINISH COAT-FACE & EDGES
BERTRAM YACHT XXXXXX
4. SILKSCREEN LETTERING: A BLACK FONT KNOWN
1. MATERIAL: 5052 ALUM. 0.125" THICK.
(DWG).
DRAWING IS AN AUTOCAD (VERSION 14) EXTENSION
DRAWING ON DISK CAN BE PICKED UP AT BERTRAM.
4.2500
4.2500
F/ROOM
STEREO
AMPLIFIER
STEREO
STEREO
F/B
S/ROOM
STEREO
STEREO
P/ROOM
15A
15A
15A
20A
15A
15A
15A
40A
15A
60A
15A
2
1
TEST
BATTERY
8-16 VDC
VOLT METER
8
10
12
14
16
LINE VOLTAGE
12 VOLTS DC
8.250
11.000
MAIN
SPARE
SPARE
SPARE
SPARESPARE
-
B54000/3UIM
- IM 00/3U B540
A
540

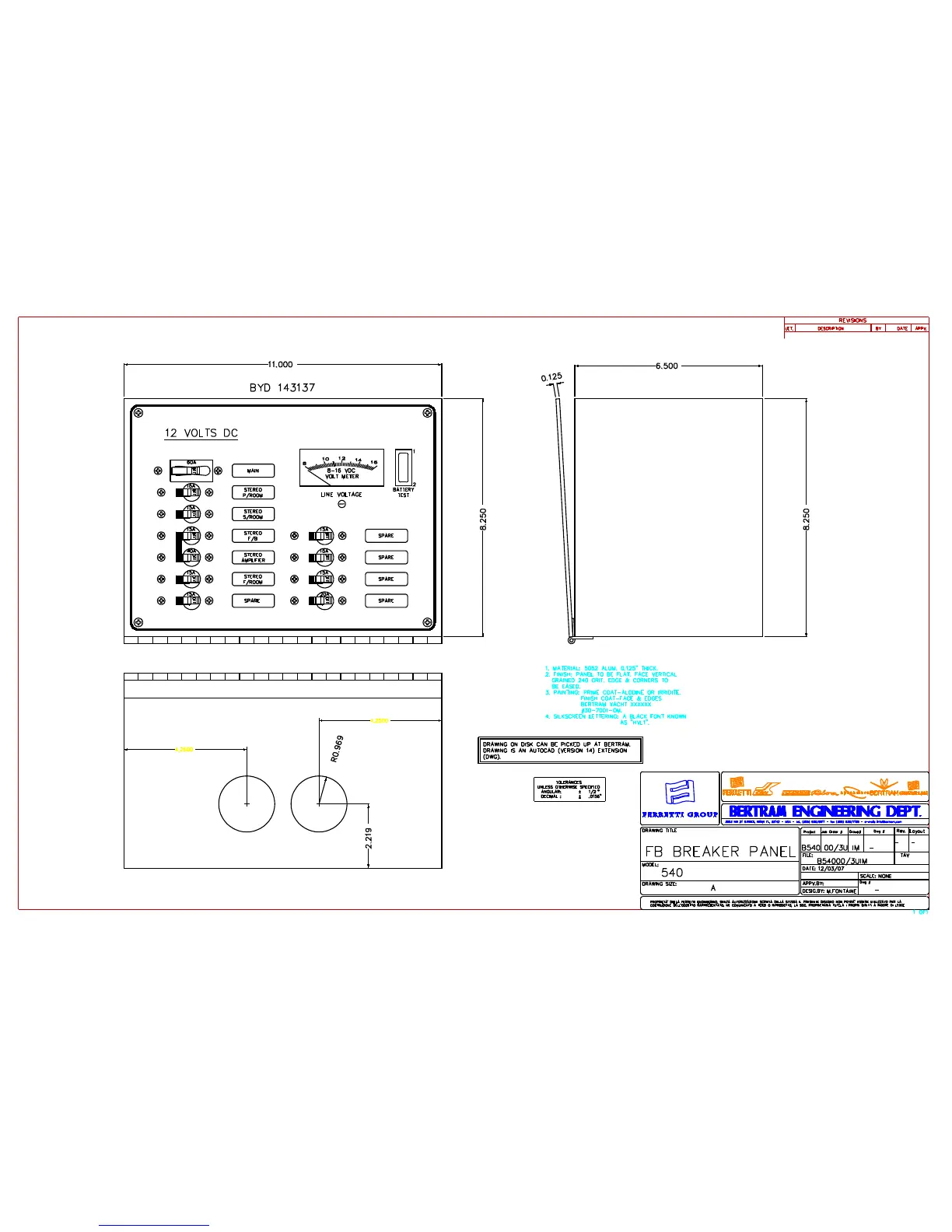

FB BREAKER PANEL
TAV
12/03/07
M.FONTAINE
-
-
Group#
Job Order #
DESIG.BY:
FILE:
DATE:
APPV.BY:
Project
SCALE:
Dwg #
Layout
Dwg #
NONE
Rev.
DRAWING TITLE
MODEL:
DRAWING SIZE:
3663 NW 21 STREET, MIAMI FL. 33142 - USA - tel. (305) 633/8011 - fax (305) 633/7188 - e-mail: info@bertram.com
PROPRIETA’ DELLA FERRETTI ENGINEERING. SENZA AUTORIZZAZIONE SCRITTA DELLA STESSA IL PRESENTE DISEGNO NON POTRA’ ESSERE UTILIZZATO PER LA
COSTRUZIONE DELL’OGGETTO RAPPRESENTATO, NE COMUNICATO A TERZI O RIPRODOTTO. LA SOC. PROPRIETARIA TUTELA I PROPRI DIRITTI A RIGORE DI LEGGE
1 OF1
