AS "HVL1".
REV
D
143138
BE EASED.
#30-7001-OM.
540
APPV
DATE
MODEL
TITLE
SCALE
BY
DATE
MFONTAINE
NONE
2-22-08
TOLERANCES
UNLESS OTHERWISE SPECIFIED
ANGULAR: 1/2
DECIMAL
: .0156"
+ +
_
_
2. FINISH: PANEL TO BE FLAT. FACE VERTICAL
GRAINED 240 GRIT. EDGE & CORNERS TO
3. PAINTING: PRIME COAT-ALODINE OR IRRIDITE.
FINISH COAT-FACE & EDGES
BERTRAM YACHT XXXXXX
4. SILKSCREEN LETTERING: A BLACK FONT KNOWN
BERTRAM YACHT
MIAMI, FLORIDA, USA
1. MATERIAL: 5052 ALUM. 0.125" THICK.
NOTES

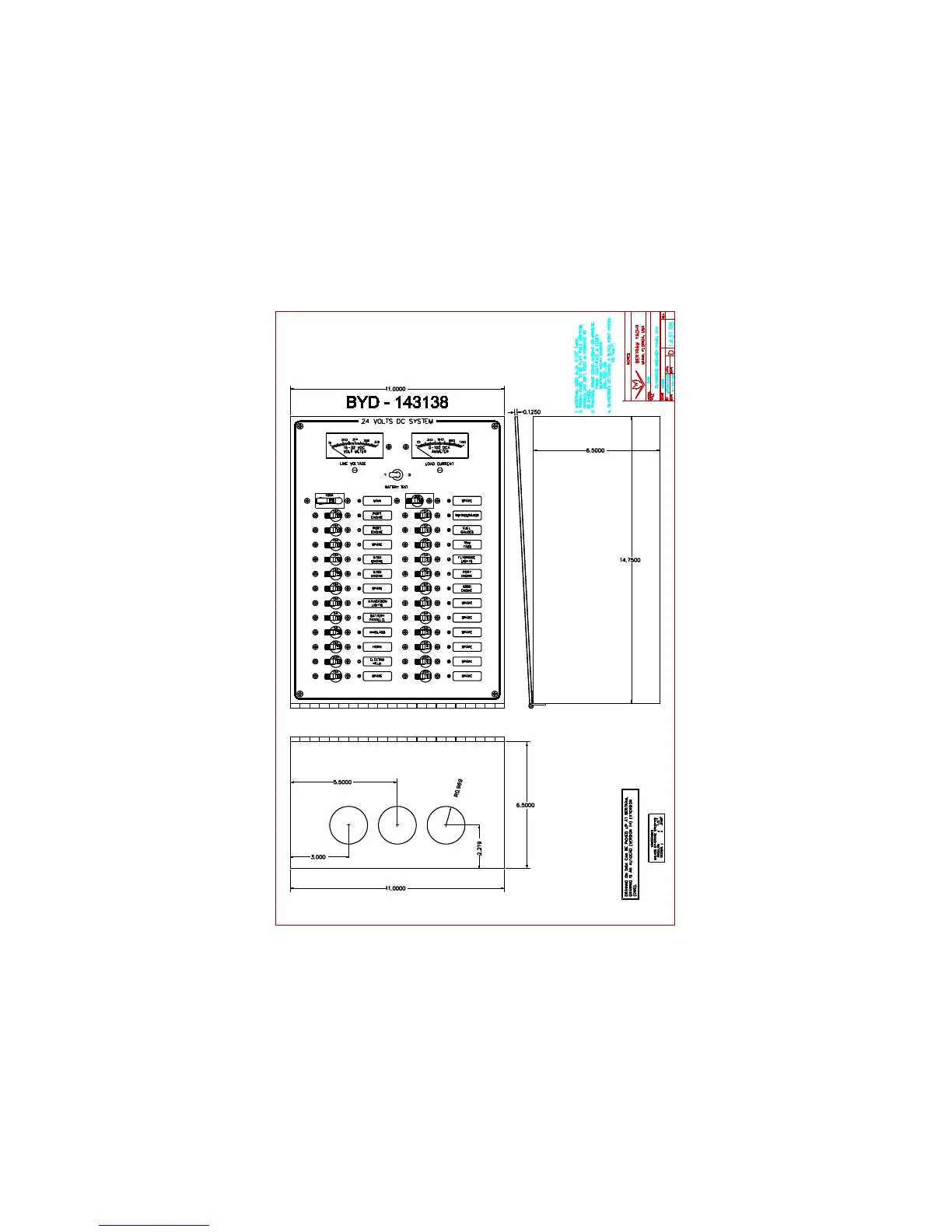

FLYBRIDGE BREAKER PANEL 24V
(DWG).
DRAWING IS AN AUTOCAD (VERSION 14) EXTENSION
DRAWING ON DISK CAN BE PICKED UP AT BERTRAM.
SPARE SPARE
SPARE
HORN
SPARE
SPARE
WINDLASS
SPARE
SPARE
SPARE
SPARE
MAIN
REFRIGERATOR
24 VOLTS DC SYSTEM
100
80
50
30
0
AMMETER
0-100 DCA
LOAD CURRENT
32
28
24
20
16
VOLT METER
16-32 VDC
2
1
BATTERY TEST
14.7500
6.5000
6.5000
11.0000
3.000
2.219
R0.969
5.5000
0.1250
BYD - 143138
11.0000
ENGINE
PORT
SPARE
15A
100A
15A
15A
15A
15A
15A
15A
LIGHTS
NAVIGATION
BATTERY
PARALLEL
5A
5A
15A
HELM
ELECTRO
20A
15A
30A
15A
15A
20A
TRIM
TABS
FLYBRIDGE
LIGHTS
ENGINE
PORT
ENGINE
STBD
15A
10A
10A
10A
15A
15A
15A
20A
20A
LINE VOLTAGE
ENGINE
PORT
STBD
ENGINE
ENGINE
STBD
FUEL
GAUGES
