BioLogic BCS-810 - BCS-PDU Front Panel Detailed Description

BCS-8xx series installation manual
15
Logic line (UPS) Power line
Serial #
Bio-Logic SAS
www.bio-logic.info
Mode l: BCS-PDU
ATTENTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
Made in France
N L1 L2 L3 N L
A
E
B
F
C
G
D
H
Power line:
3 Phases 40 A
200-240 Vac line to neutral
50/60 Hz
Pmax: 16 kVA
Emergency stop
Logic line (UPS):
100-260 Vac
50/60 Hz
Pmax: 1000 VA
E E

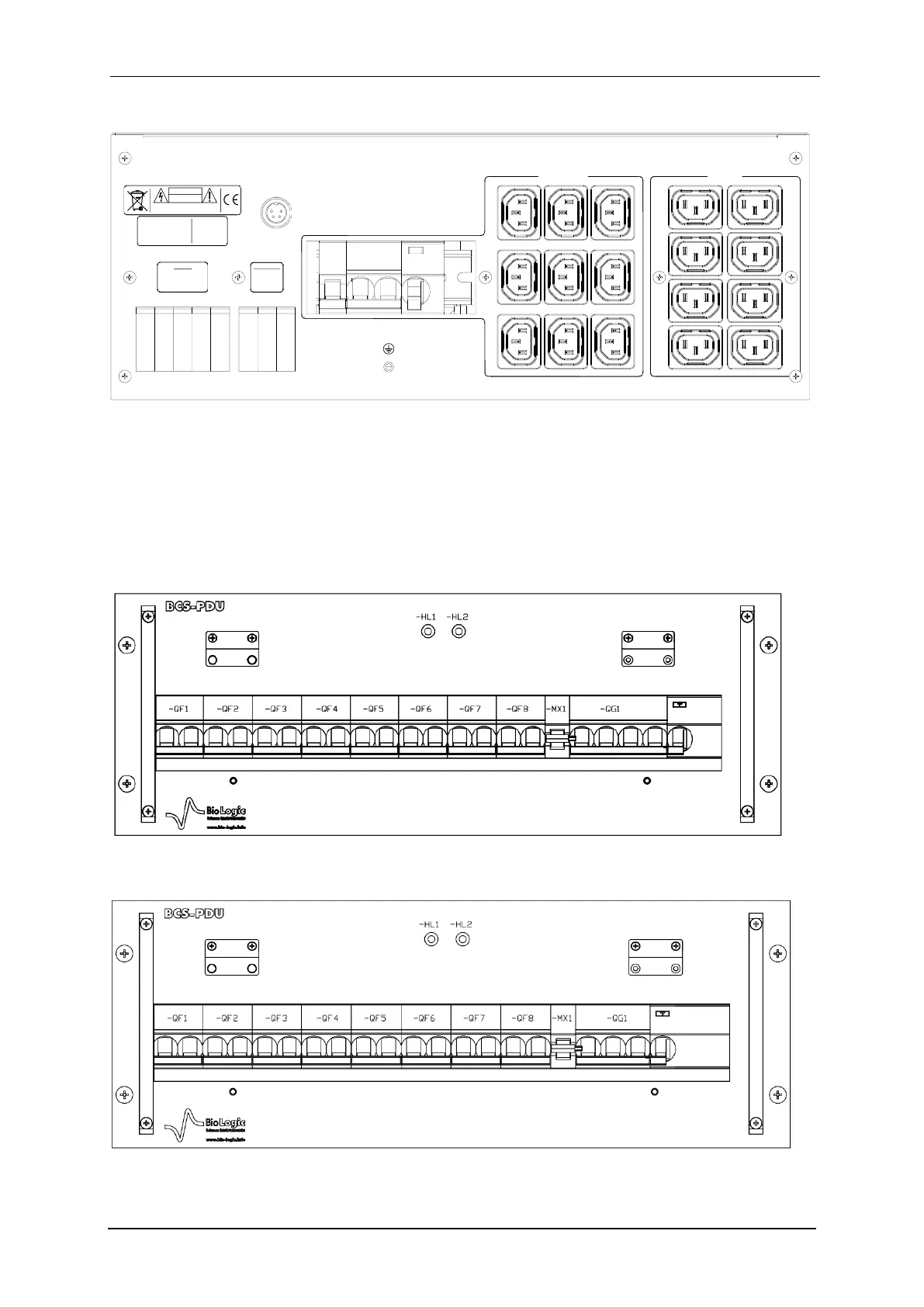

Fig. 14: BCS-PDU rear panel.
The BCS-PDU units are designed to distribute incoming power to the BCS-815 units. The
BCS-PDU unit has two power inputs equipped with 30 mA ground fault protections, one 10 A
circuit breaker for each power line output (labeled from A to H on the front panel), a general
10 A circuit breaker for all the logic line outputs, and an IP20 to prevent accidental electrical
contact.
1.2.5.1 BCS-PDU front panel detailed description
Fig.15: BCS-PDU front panel for European model.
Fig. 16: BCS-PDU front panel for North American model.
