BCS-8xx series installation manual
53
7.2 Ventilation
The user must carefully check that the ventilation grids are not obstructed on the rear of the
cabinet. An external cleaning of the front dust-filter should be periodically made with a Vacu-
um cleaner if necessary. Replacement has to be done periodically as well.
7.3 Fuses
WARNING! To maintain protection from
electric shock and fire, only replace fuses
with the same rating and type.
BCS-815
Power Line:
Rating: 10 A Fast /
250 VAC
Size: 5-20 mm
Logic Line:
Rating: 2 A Fast /
250 VAC
Size: 5-20 mm
BCS-810
Rating: 4 A Fast / 250 VAC
Size: 5-20 mm
BCS-805
Rating: 2 A Fast / 250 VAC
Size: 5-20 mm
BCS-COM
Rating 1.6 A Fast / 250
VAC
Size 5-20 mm
7.4 BCS-8xx power contour plots
Hereunder are presented the power contour plots for the BCS-8xx series instruments. These
plots indicate the maximum power each instrument can deliver for different cable lengths.
These specifications are indicated for an ambient temperature of 23°C. Operation over 23°C
will produce a decrease in the maximum power generated (de-rating).

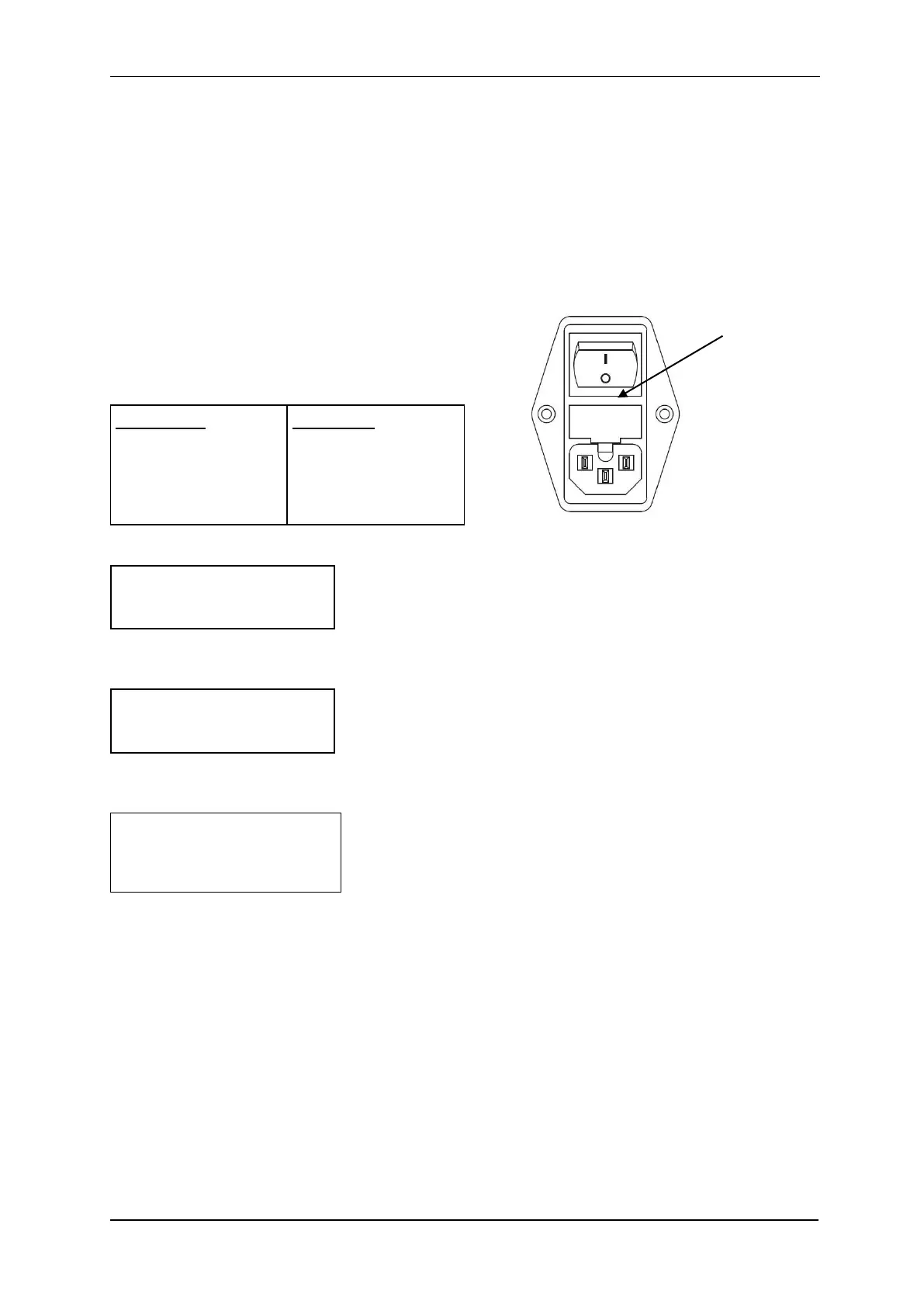

Fuse location
