2.4 BCS-PDU electrical connections
Two different PDU versions are available, one for North American and one for European
electrical system.
WARNING!
Never use the North American PDU with European electric system: the phase splitting
is different: EU is line to neutral (230 VAC), US is line to line (208 VAC).
The PDU unit must be connected to three-phase electric power. Two modes of connection
are possible, depending on whether the logic line is connected to an Uninterruptible Power
Supply (UPS).
Note: the UPS unit is not provided with the BCS unit.
PE: Protective
Earth
N: Neutral
L1: Line 1
(Phase 1)
L2: Line 2
(Phase 2)
L3: Line 3
(Phase 3)
2.4.1 European model
(Split phase line to neutral)
Fig. (in 10.2 Appendix) exhibits a three-phases split simplified diagram
Electric wiring with separated Logic Line in-
put (from an UPS system)
Electric wiring without separated Logic Line
input (without UPS)

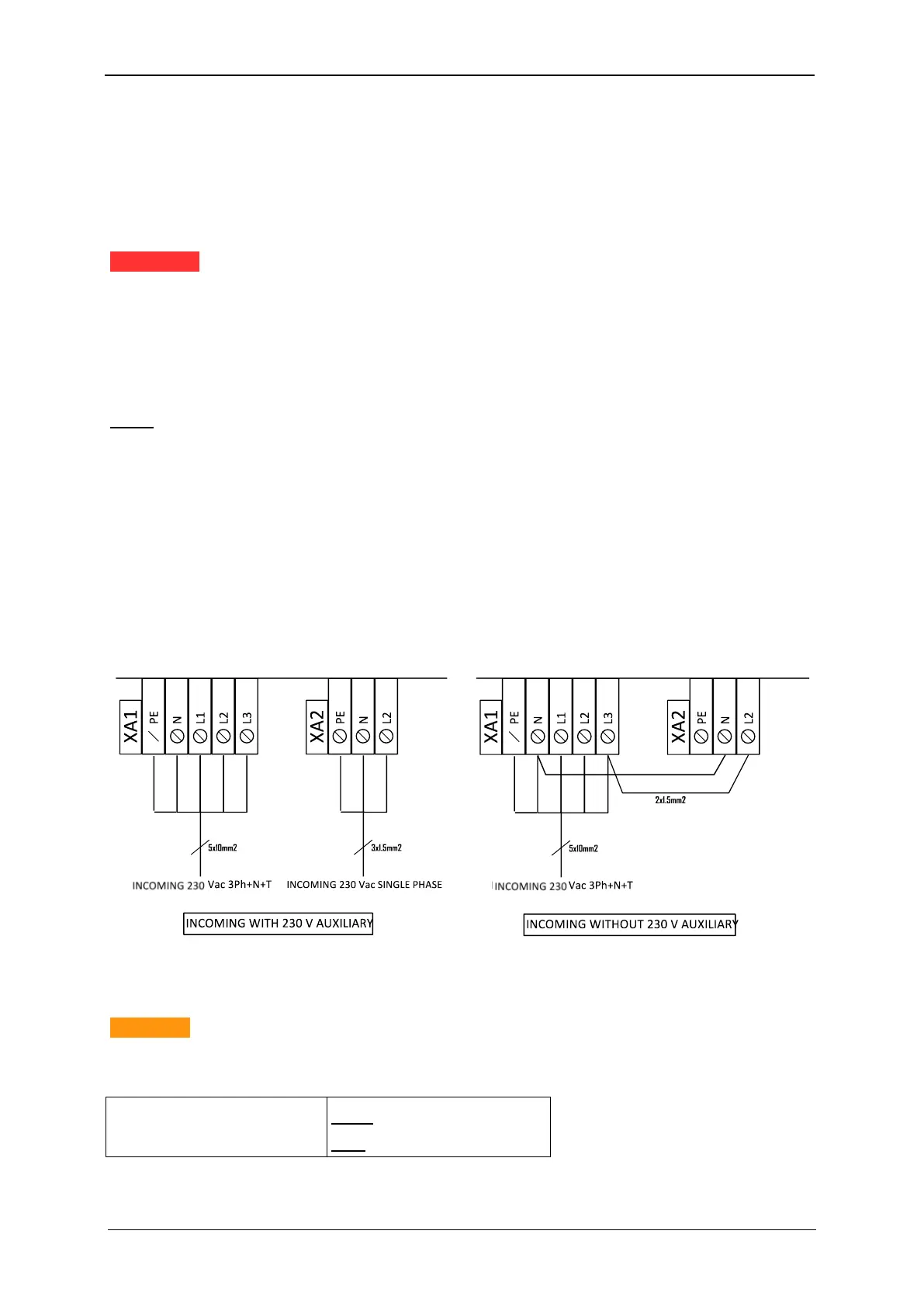

Fig. 25: Wiring diagram of the European model of PDU with/without UPS system.
Caution !:
Before power up the module, check that the voltage between phase and neutral is lower than
260 VAC
Section of
incoming cables
Main: 10 mm² (7 AWG)
Aux: 1.5 mm² (16 AWG)
