BCS-8xx series installation manual
70
10 Appendix
10.1 Simplified Electrical split-phases diagrams

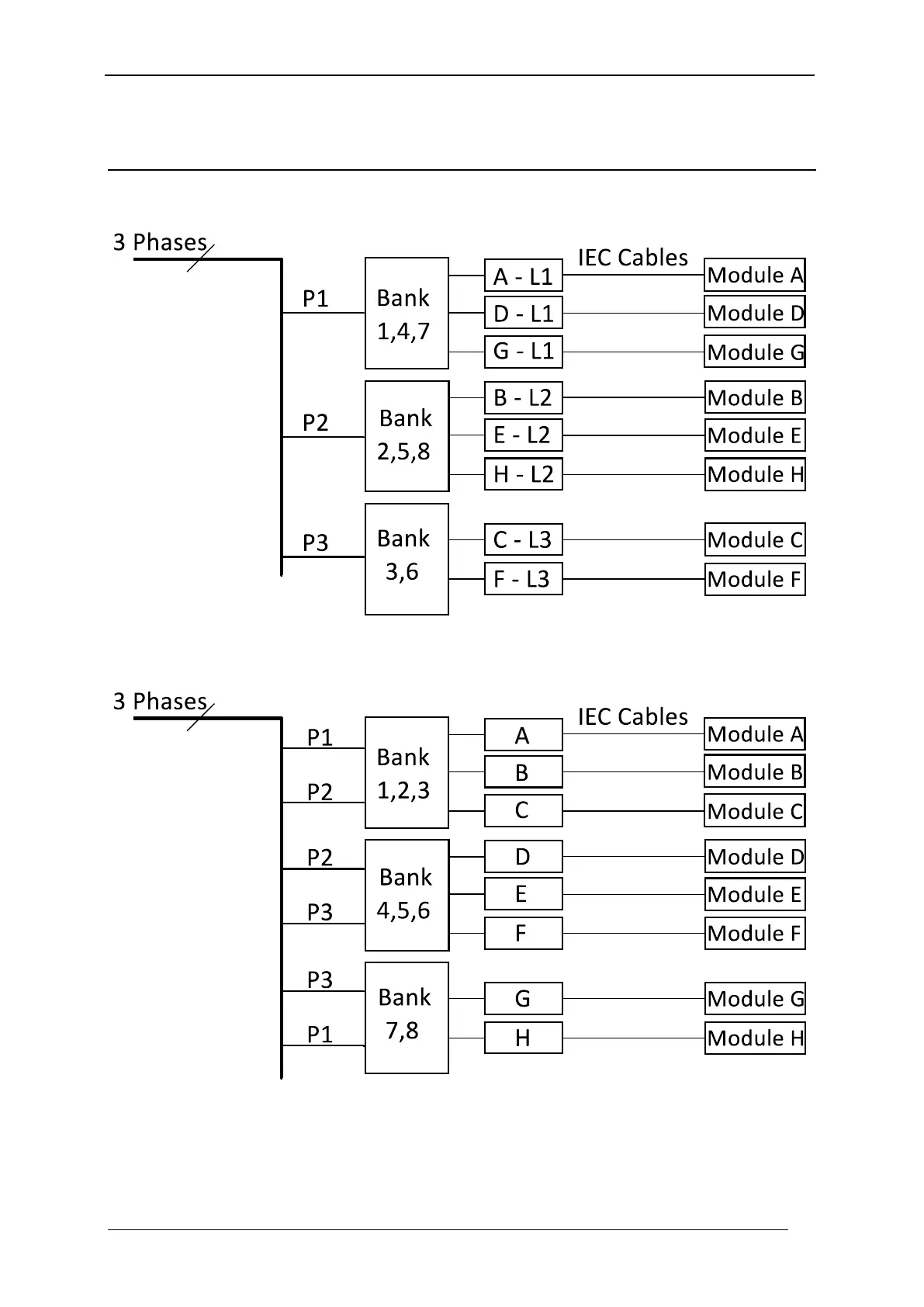

Fig. 68: Simplified split-phase diagram for European PDU.
Fig. 69. Simplified split-phase diagram for North American PDU
