BCS-8xx series installation manual

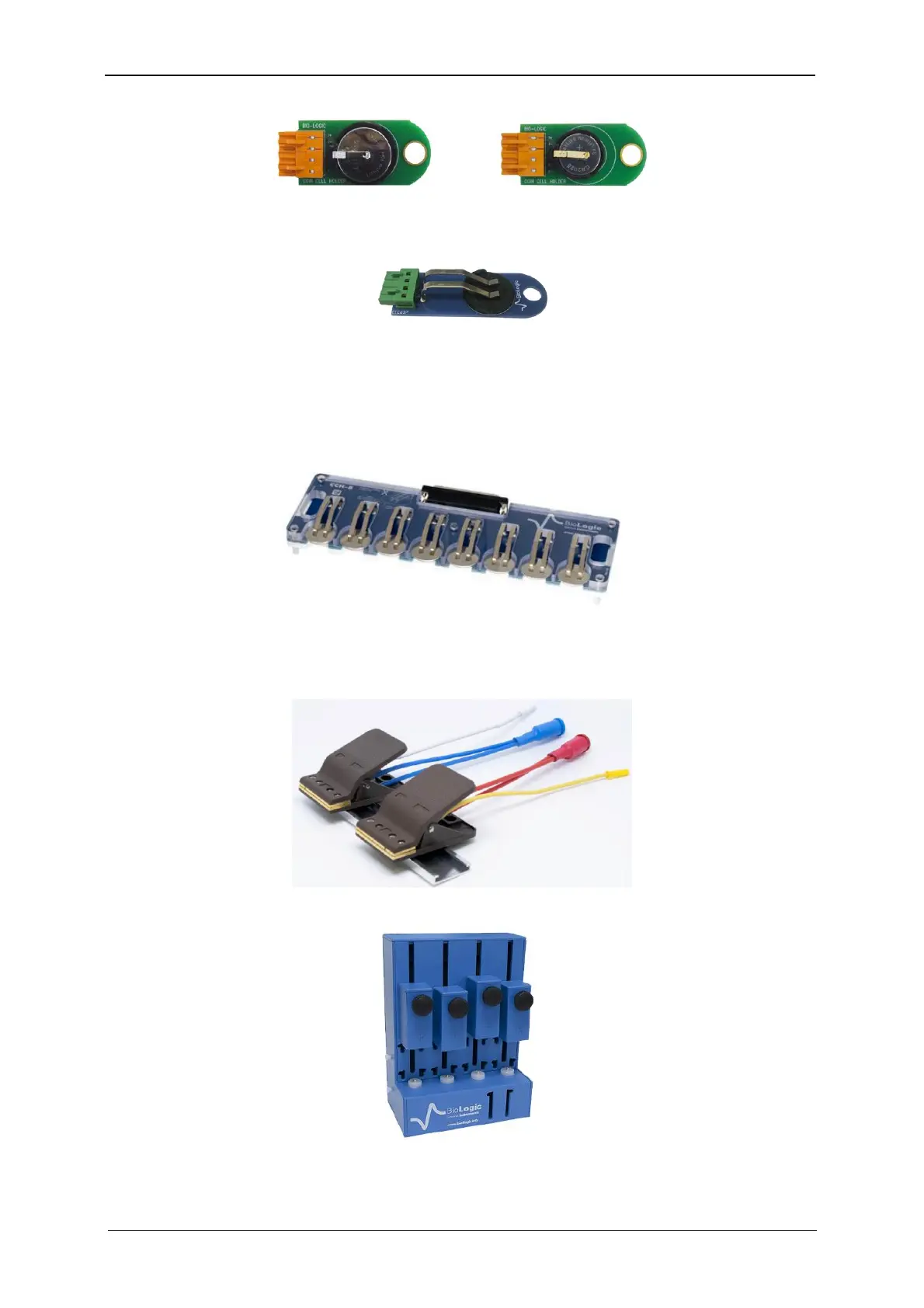

CCH-124 (left) and CCH-120 (right) coin cell holder for BCS-805/810.

CCH-1 four points coin cell holder for BCS-805/810.

CCH-8 8 positions coin cell holder for BCS-805/810

PBH-125 pouch cell holder clamp for BCS-8xx.

BH-1i 4 positions cylindrical cell holder for BCS-8xx.
