Instruction manual NSF VSI / VSI W / VSI T / VSI
TW Maintenance
38065447002 en-US 81 / 101

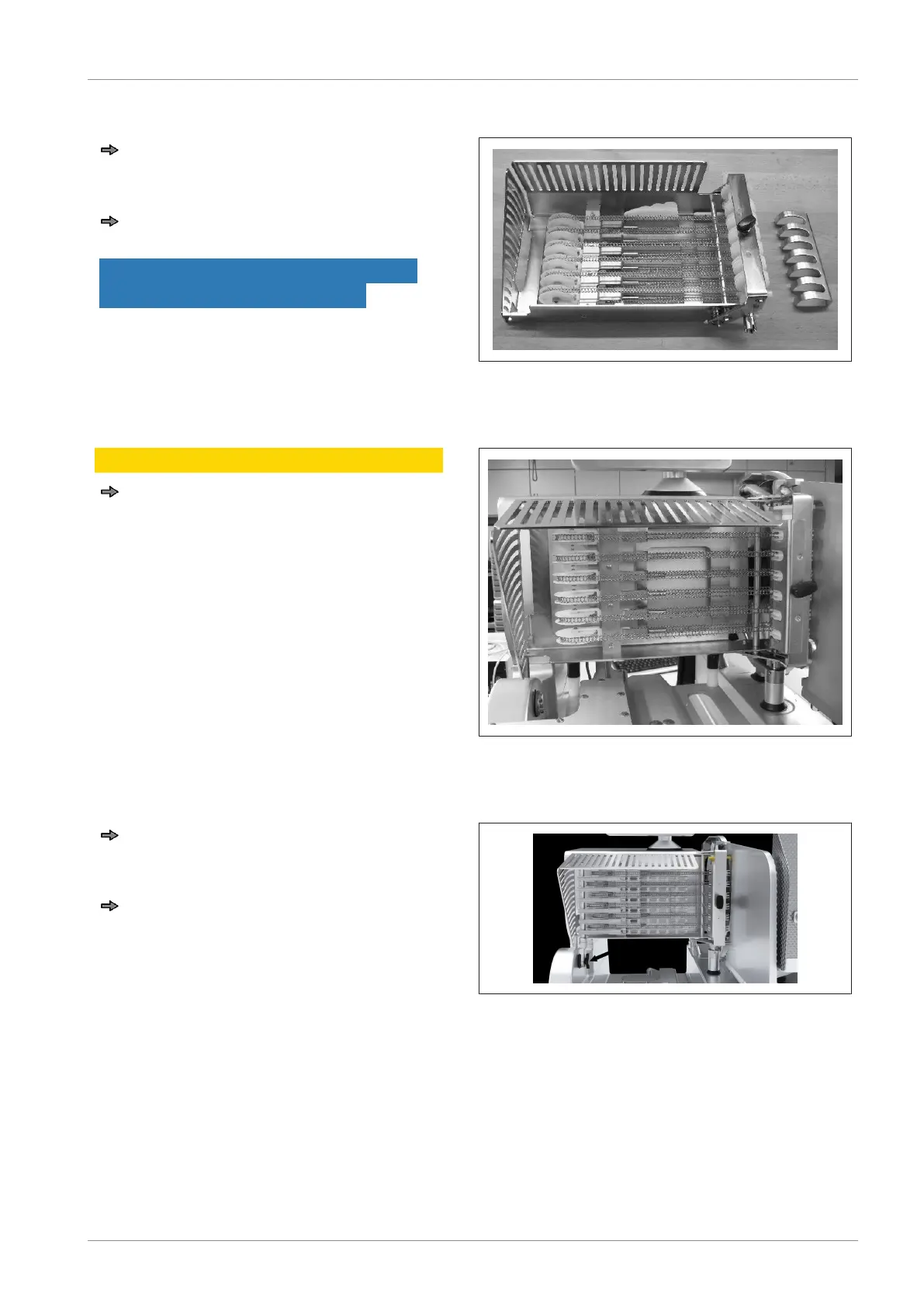

Guide cam
Insert guide cam between the transport
chains and fasten it using the clamp han-
dle.
By turning the feed roller check if chains
are mounted correctly.
NOTICE!Twisted guide cam or chain
spikes can cause malfunctions.
Fig.97: Guide cam
Chain frame
CAUTION!Risk of injury at chain spikes.
Install chain frame with swiveled in feed
roller from the top in the holding fixtures
and drive shaft.
Fig.98: Chain frame
Depositing arm
Push depositing arm onto carriage shaft
and turn until the hub catches the
groove.
Tighten.
Fig.99: Depositing arm
