Maintenance
Instruction manual NSF VSI / VSI W / VSI T / VSI
TW
84 / 101 38065447002 en-US
Conveyor VSI TW
Use both hands to hold on to the sides of
the conveyor belt, place onto support bar
with the recesses and move to the right
as far as it will go.

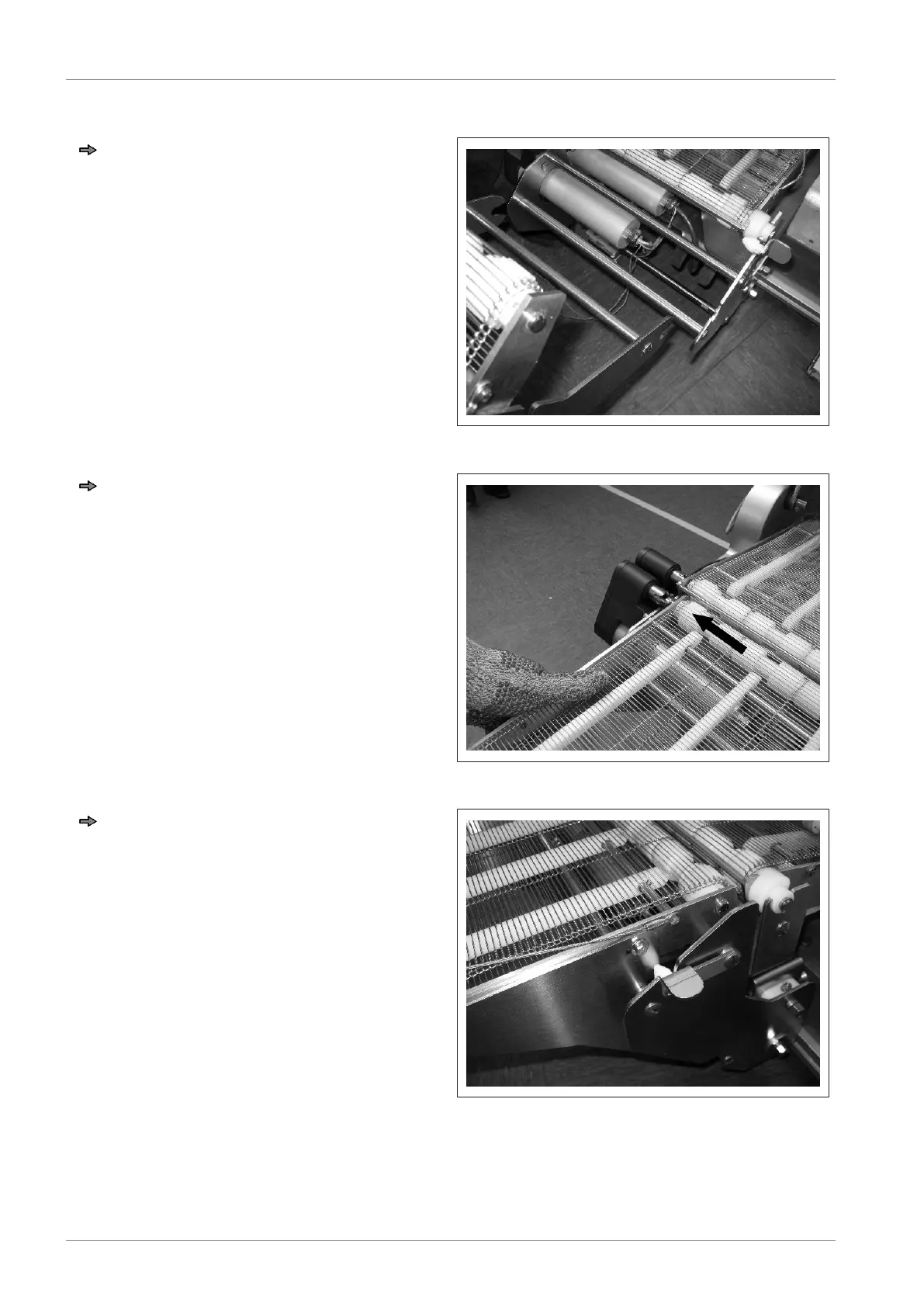

Fig.106: Attach conveyor belt VSI TW
Lift conveyor belt and push it to the left
towards the coupling. If necessary turn
the drive shaft until it connects with the
coupling bolts.
Fig.107: Couple conveyor belt VSI TW
Push lock at belt support towards the
front.
Conveyor belt is coupled and secured.
Fig.108: Lock conveyor belt VSI TW
