Instruction manual NSF VSI / VSI W / VSI T / VSI
TW Maintenance
38065447002 en-US 83 / 101
Push the conveyor as far as it will go to-
wards the coupling, if necessary turn the
drive shaft until it connects with the cou-
pling bolts.

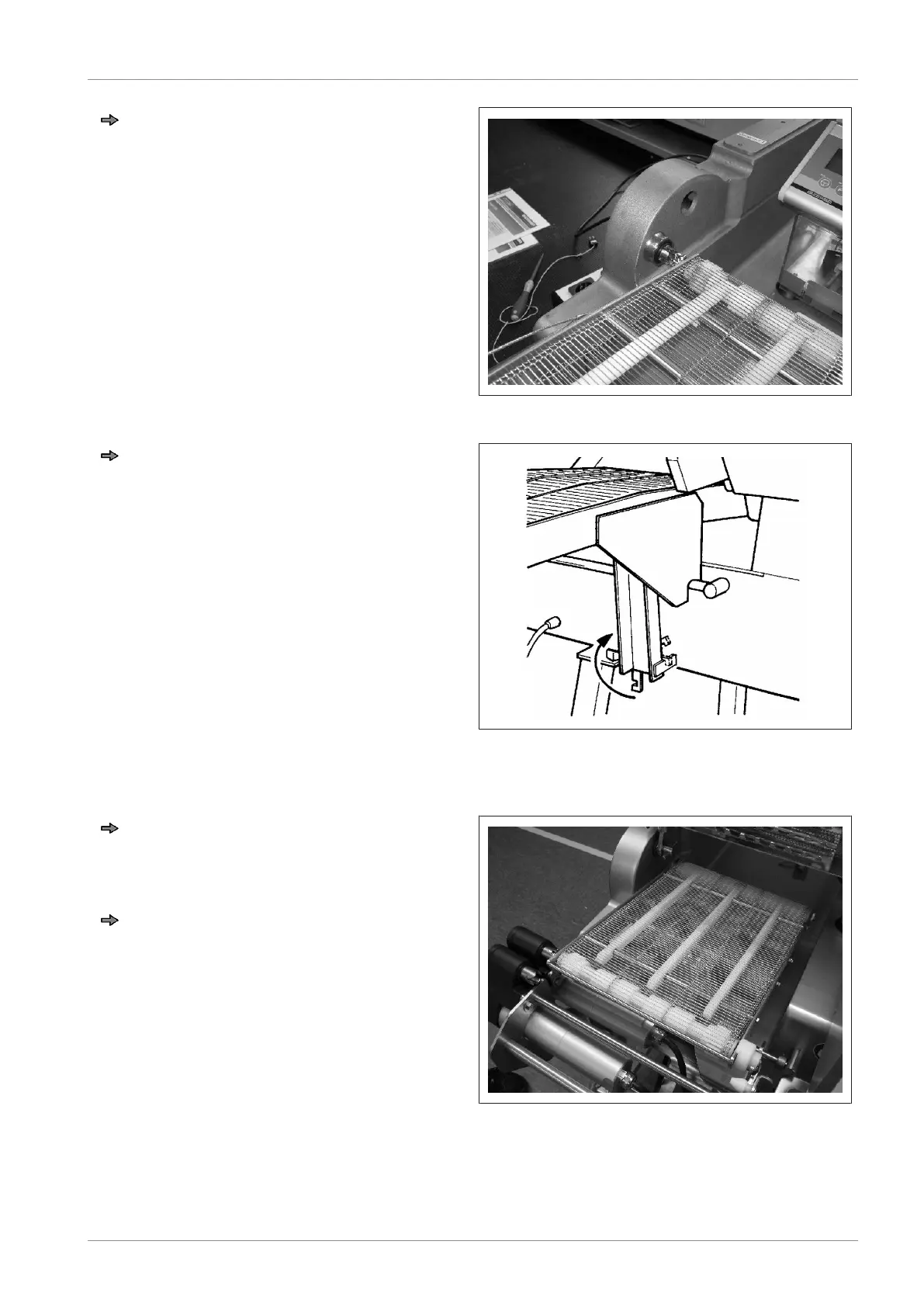

Fig.103: Couple conveyor belt VSI T
Secure the conveyor belt by setting the
lock at the belt support.
Fig.104: Lock conveyor belt VSI T
Weighing conveyor VSI TW
Bring the weighing conveyor in a slightly
inclined position on the left into the cou-
pling, if necessary turn the drive shaft
until it connects with the coupling bolts.
Place right shaft end into the guidance,
lower weighing conveyor at the back.
Fig.105: Weighing conveyor
