The two possible objects PKW and PZD are available in the BV Drive menu. The
required object can be assigned to the frequency inverter (drag & drop).

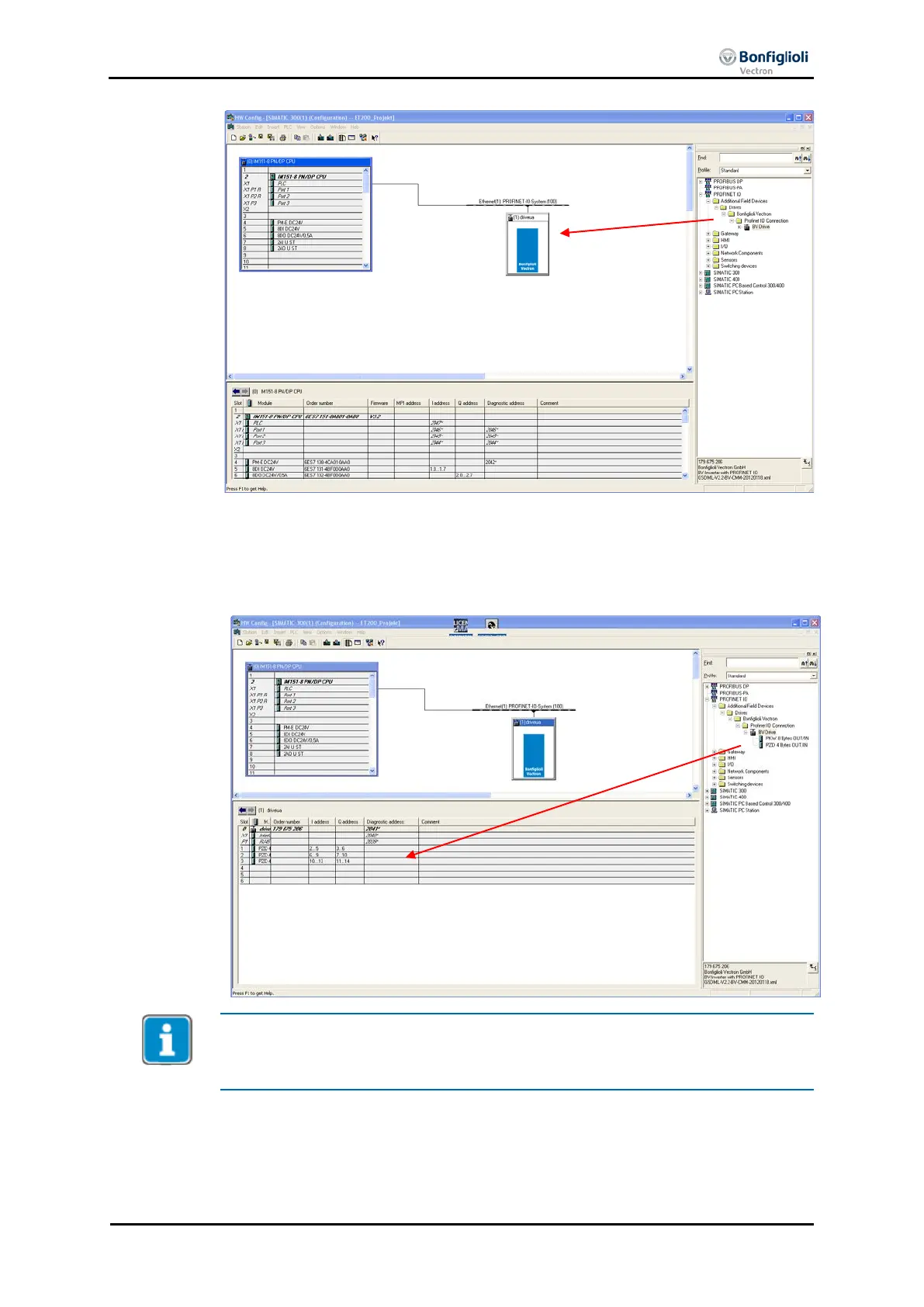

The screen shot of the STEP7 hardware configurator shows a frequency inverter
configured with 3 PZD objects connected to the PROFINET IO system.
• The data flow direction IN/input and OUT/output is given from the PLC's point
of view.
•
Each configured PZD object comprises two word objects (4 bytes) PZDn and
PZDn+1, one for input and one for output.
