Note: The parameterization of the technology controller in the individual data
sets enables an adaptation to various operating points of the application
with the data set change-over via control contacts.
Operation mode standard, parameter Operation Mode 440 = 1
This operation mode can be used, for example, for pressure or volumetric flow control
with linear operation behavior.
The minimum value monitoring prevents an acceleration of the drive if the actual
value is missing.
If the actual value is missing (< 0.5%) the output frequency is guided to the
Mini-
mum frequency
418. This is done using the set Deceleration (clockwise) 421.
If the actual value is available again, the controller continues operation automatically.

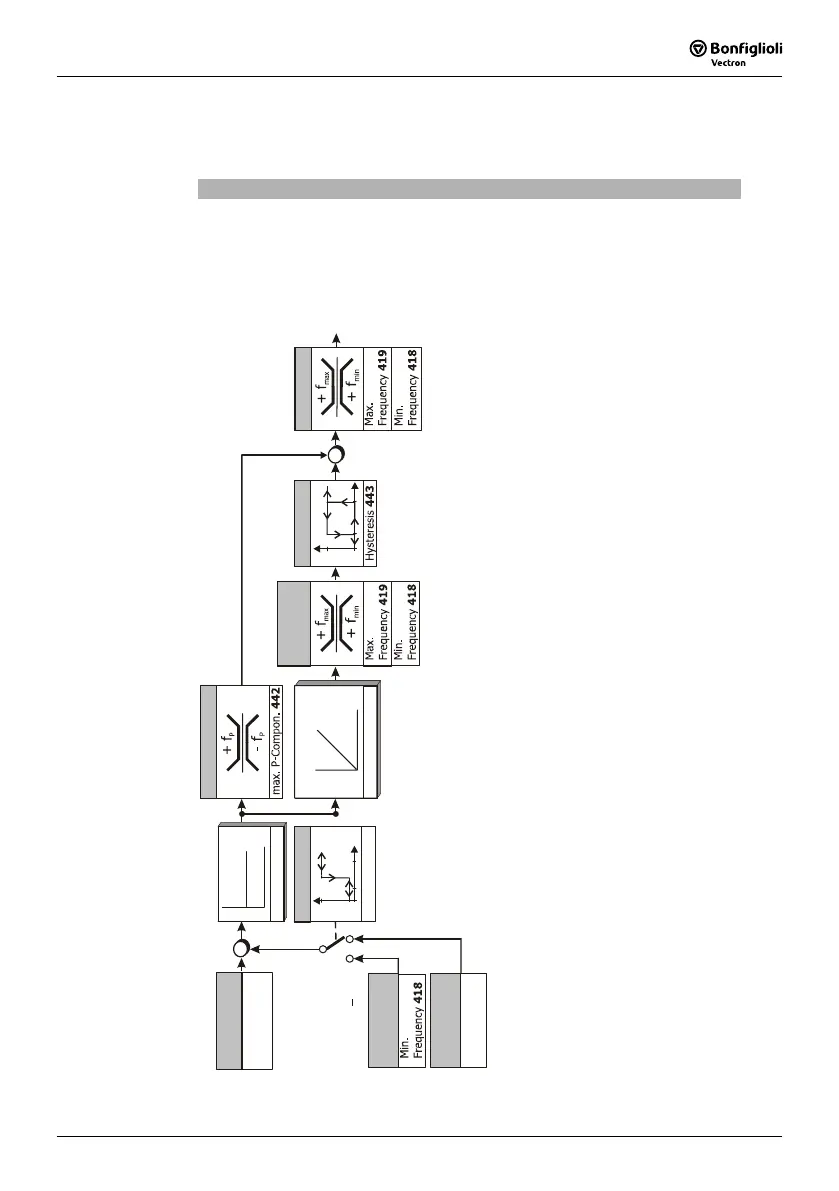

Technology
Controller
Act. Percentage
Source
478
Ref. Percentage
Channel
Ref. Percentage
Source
476
Minimum value
> 0.50%
P. 4 7 8
0.50%
<
Amplification
444
P
I
Integral Time
445
+
+
-
Max. P-Component
Difference
1
0
Limitation
Max.
I-Component
Fixed
Frequency
