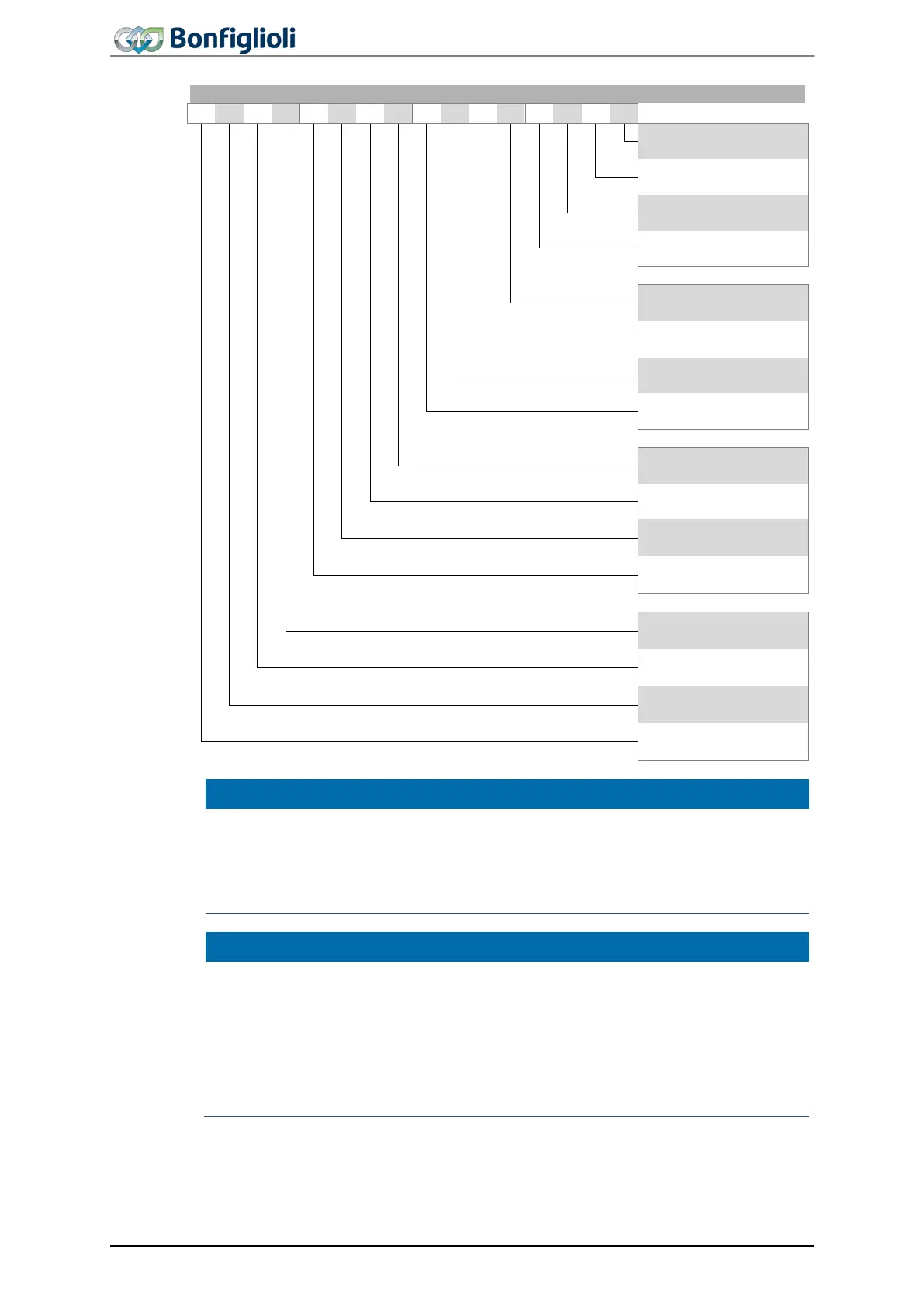

Status word
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Bit
0
Ready to switch on
1
Switched on
2
Operation enabled
3
Fault
4
Voltage enabled
5
Quick stop (Low ac-
tive)
6
Switch on disabled
7
Warning
8
-
9
Remote
1
0
Target reached
1
1
Internal limit active
1
2
-
1
3
-
1
4
-
1
5
Warning 2
NOTE
“Move away from limit switch mode” will always work with hardware limit switches. In
the case of software limit switches, the mode will only work if a software limit switch
Fault reaction 1144 with error stop was selected. If a setting with warning (e.g. “10-
Warning”) was selected, the software limit switch will not trigger an error, thus “Move
away from limit switch mode” will not clear the software limit switch.
NOTE
“Move away from limit switch mode” must not be used when one of the following
error messages occurs:
• F1444 Pos. limit switch < Neg. limit switch
• F1445 Both limit switches at the same time
• F1446 Wrong limit switch wiring
If one of these errors has occurred, the wiring and
parameter settings must be
checked first before resuming operation.
106
ACU Modbus/TCP 10/13
