BONFIGLIOLI Active Cube

Relationships between objects, parameters and conversions
Velocity [vl]

Velocity mode [rpm]
Velocity [pv]

Profile Velocity mode [u/s]

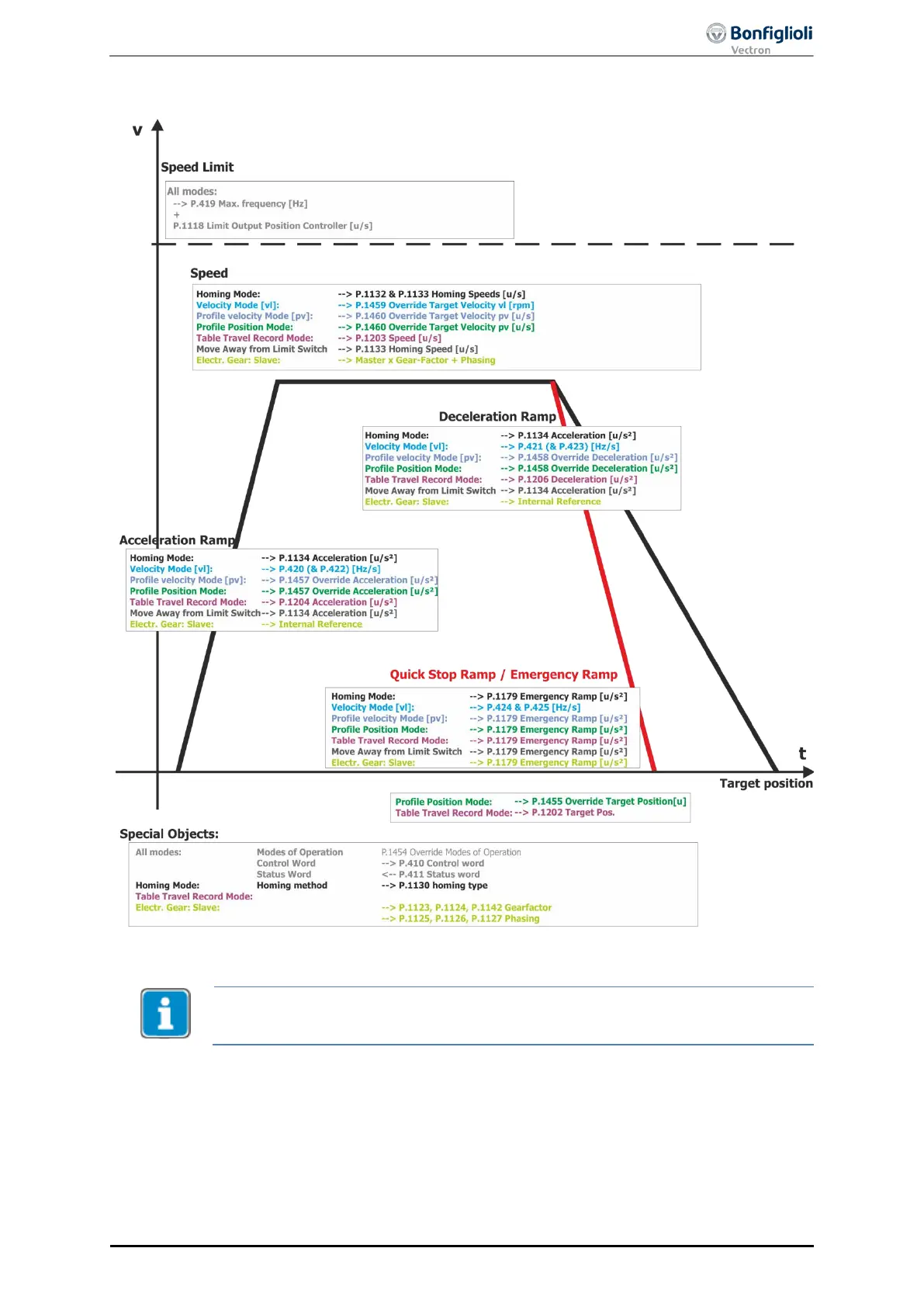

The graphical overview shows the most important objects which are used. Other ob-
jects are available in the different modes; for additional
information, refer to the d
e-
scriptions of the objects and modes.
10/13
ACU Modbus/TCP 57
