(2) Selecting the number.
Press a Number pedal (1 – 10). The number pedal indicator
will light, and the Program number will change. At the same
time, the VF-1 Patch number will change.
* If you wish to select a program number which has the same
Bank number as the previous selection, it is not necessary to re-
select the Bank.
* In addition to this procedure, it is also possible to change
program numbers just by selecting a different Bank, or to use
the number pedals as numeric keys when selecting a Bank. For
details refer to the manual of the FC-200.
Control Assign operations
using the FC-200
Using the control pedal
When the FC-200’s CTL pedal is pressed, Control Change
messages (controller number 80) will be transmitted from the
FC-200.
The VF-1 can receive these Control Change messages as one
of the “control assign sources” specified in each Patch, and
control the specified target parameters.
* The CTL pedal can be used when the FC-200 is in “Program
change mode” or “Control change mode.”
For example by making the following control assign settings
for a control source, you can use the control pedal to switch
the TUNER ON/OFF.
TARGET: TUNER ON/OFF
TARGET MIN: OFF
TARGET MAX: ON
SOURCE TYPE: MIDI-80
SOURCE MODE: TOGGLE
SOURCE MIN: 0
SOURCE MAX: 127
For details on control assign, refer to “Controlling
parameters in real time (Control Assign)” (p.33).
Using the expression pedal
When the FC-200’s expression pedal is moved, Control
Change messages (controller number 7) will be transmitted
from the FC-200.
The VF-1 can receive these Control Change messages as one
of the “control assign sources” specified in each Patch, and
control the specified target parameters.
* The control pedal can be used when the FC-200 is in “Program
Change mode,” “Control Change mode,” or “Note mode.”
For example by making the following control assign settings
for a control source, you can use the expression pedal to
control the Output Level.
TARGET: MASTER: MASTER LEVEL
TARGET MIN: 0
TARGET MAX: 100
SOURCE TYPE: MIDI-7
SOURCE MODE: NORMAL
SOURCE MIN: 0
SOURCE MAX: 127
For details on control assign, refer to “Controlling
parameters in real time (Control Assign)” (p.33).
Using the FOOT SW/EXP jack
When a separately available foot switch or expression pedal
is connected to an FC-200 FOOT SW/EXP jack, pedal or
switch movements will transmit Control Change messages of
the controller number specified for each jack.
The VF-1 can receive these Control Change messages as one
of the “control assign sources” specified in each Patch, and
control the specified target parameters.
The controller numbers specified for each FC-200 jack are as
follows.

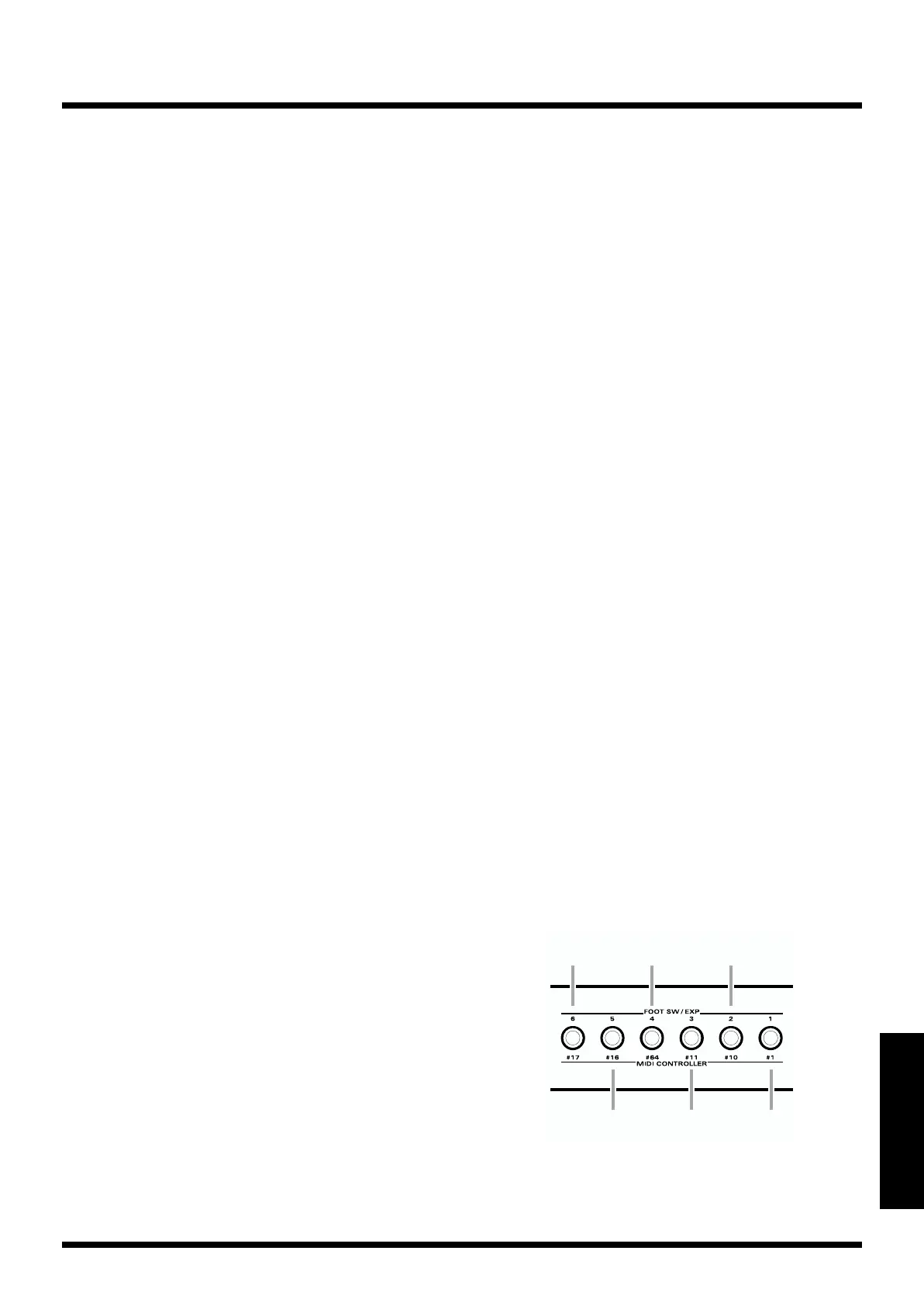

fig.6-04
* Adjust “SOURCE TYPE” to (MIDI-*).
#17
(MIDI-17)
#64
(MIDI-64)
#10
(MIDI-10)
#16
(MIDI-16)
#11
(MIDI-11)
#1
(MIDI-1)
