Algorithm list
P
B
18 REVERB RSS

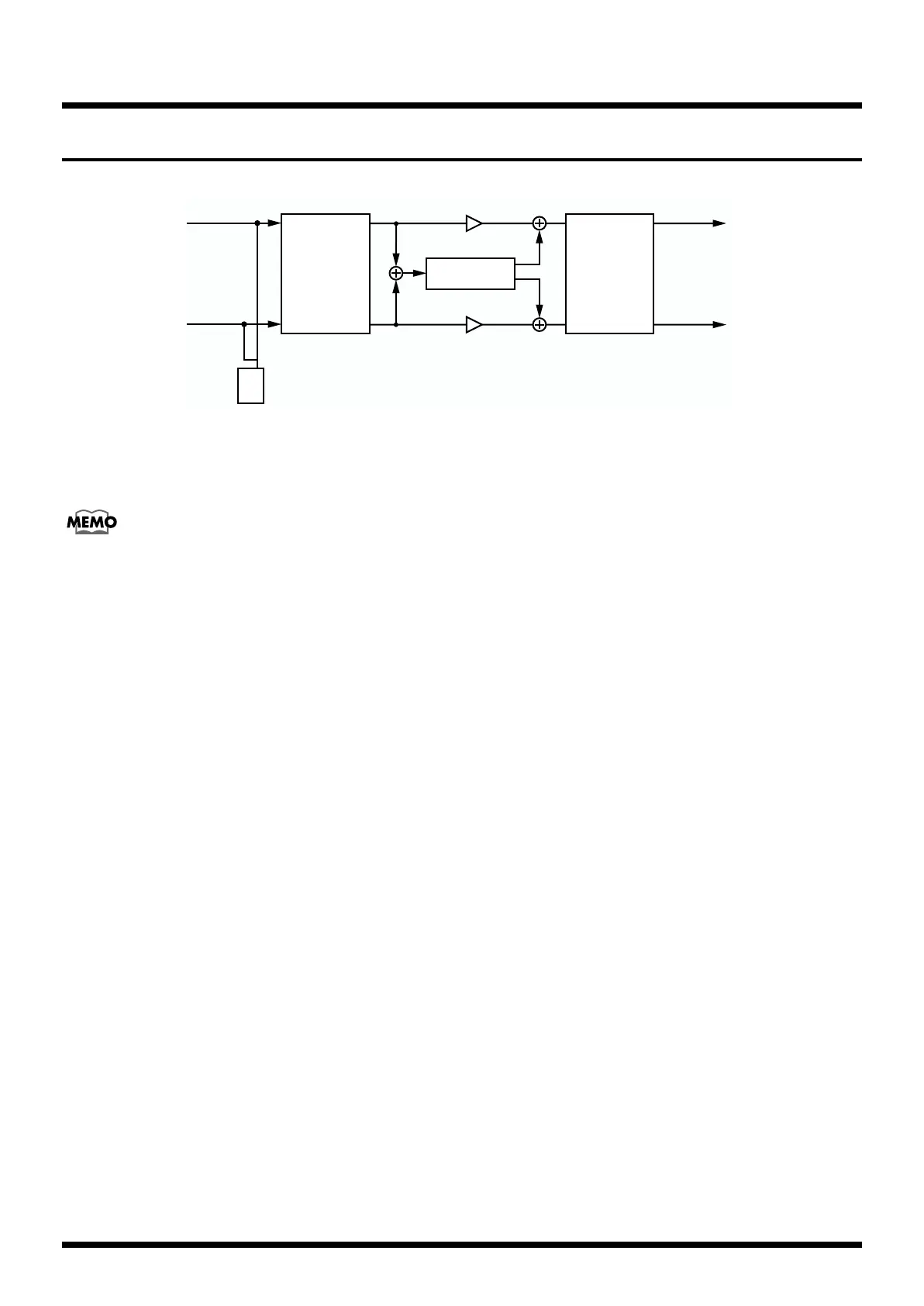

fig.4-235
The output of the reverb is connected to RSS. The left-channel sound is positioned at 90 degrees left, and the right-channel sound
is positioned at 90 degrees right.
A four-band equalizer is provided on the input.
In this Algorithm, what you have set with the DIRECT MIX (p.46) will have effect.
4BAND EQ (Equalizer)
EFFECT OFF, ON
LOW EQ -20–+20 (dB)
HIGH EQ -20–+20 (dB)
LEVEL -20–+20 (dB)
LO-MD F 100–10.0 k (Hz)
LOW-MID Q 0.5–16.0
LOW-MID EQ -20–+20 (dB)
HI-MD F 100–10.0 k (Hz)
HI-MID Q 0.5–16.0
HI-MID EQ -20–+20 (dB)
REVERB
EFFECT OFF, ON
TYPE ROOM, HALL
SIZE 1–10
REVERB TIME 0.1–32.0 (sec)
BALANCE DIR:FX 100:0–0:100
EFFECT LEVEL 0–100
PRE DELAY 0–200 (msec)
DENSITY 0–100
EARLY REF LEVEL 0–100
LOW DAMP GAIN -36.0–0.0 (dB)
LOW DAMP FREQUENCY 55–4.0 k (Hz)
HIGH DAMP GAIN -36.0–0.0 (dB)
HIGH DAMP FREQUENCY 4.0k–20.0 k (Hz)
HIGH CUT FILTER 200–20.0 k (Hz)
RSS SWITCH OFF, ON
MASTER
<MASTER>
LEVEL 0–100
<FV: FOOT VOLUME>
FOOT LEVEL 0–100
Output L
Output R
Direct Level
Direct Level
RSS
4BAND EQ
Input L
Input R
REVERB
FV
