39
Section 2. Creating Sounds
Section 2
Ways to use control assign
Using an expression pedal
Here’s how you can use an expression pedal to control the
PEDAL WAH in realtime.

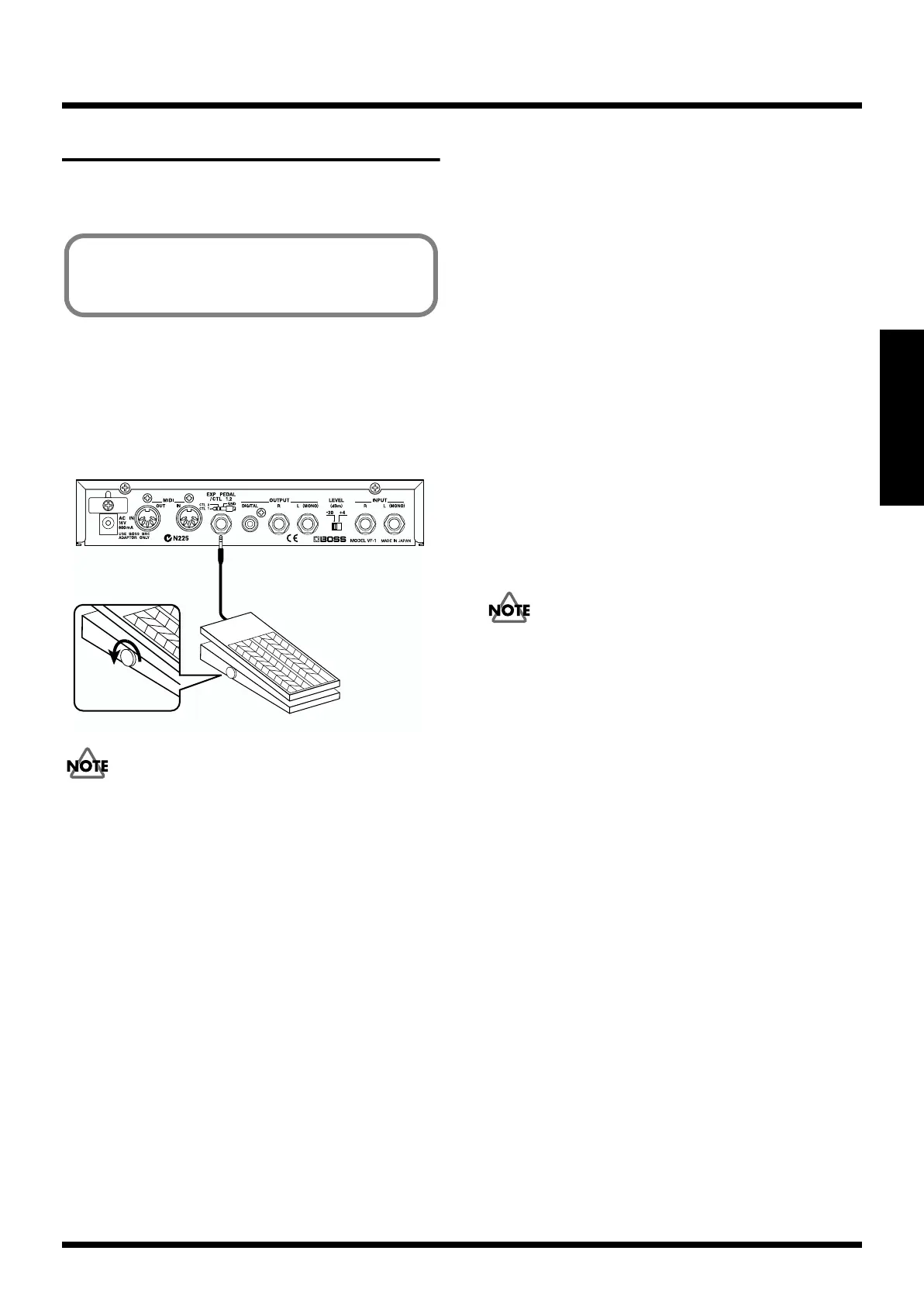

Connections
Make connections as shown in the diagram.
fig.2-44
Use only the specified expression pedal (BOSS FV-300 + PCS-
3 (Roland) or EV-5 (Roland); sold separately). By connecting
any other expression pedals, you risk causing malfunction
and/or damage to the unit.
* Set the minimum volume on the expression pedal connected to
the EXP PEDAL jack to the “MIN” position. Unless the
minimum volume is set to “MIN,” the expression pedal will not
work correctly.
Settings
Use the following procedure to make settings.
1. Set WAH “EFFECT“ to “ON.” (refer to p.28)
2. Set SELECT to “WAH.” (refer to p.29)
3. Set “ASSIGN 1” of the patch. (refer to p.33)
ASSIGN 1: ON
TARGET: WAH (PEDAL WAH): PEDAL
TARGET MIN: 0
TARGET MAX: 100
SOURCE TYPE: ExpPEDAL
SOURCE MODE: NORMAL
SOURCE MIN: 0
SOURCE MAX: 127
* Adjust “TARGET MIN,” “TARGET MAX,” and “SOURCE
MIN,” “SOURCE MAX” as desired.
4. Set “ASSIGN 2,” “ASSIGN 3,” and “ASSIGN 4” to
“OFF.” (refer to p.33)
If you wish to keep your settings, perform the Write
operation (p.38).
Using an expression pedal to operate
PEDAL WAH in the “GUITAR MULTI 1”
algorithm
Roland
Minimum
volume
Expression pedal
To Next Page
