Algorithm list
P
B

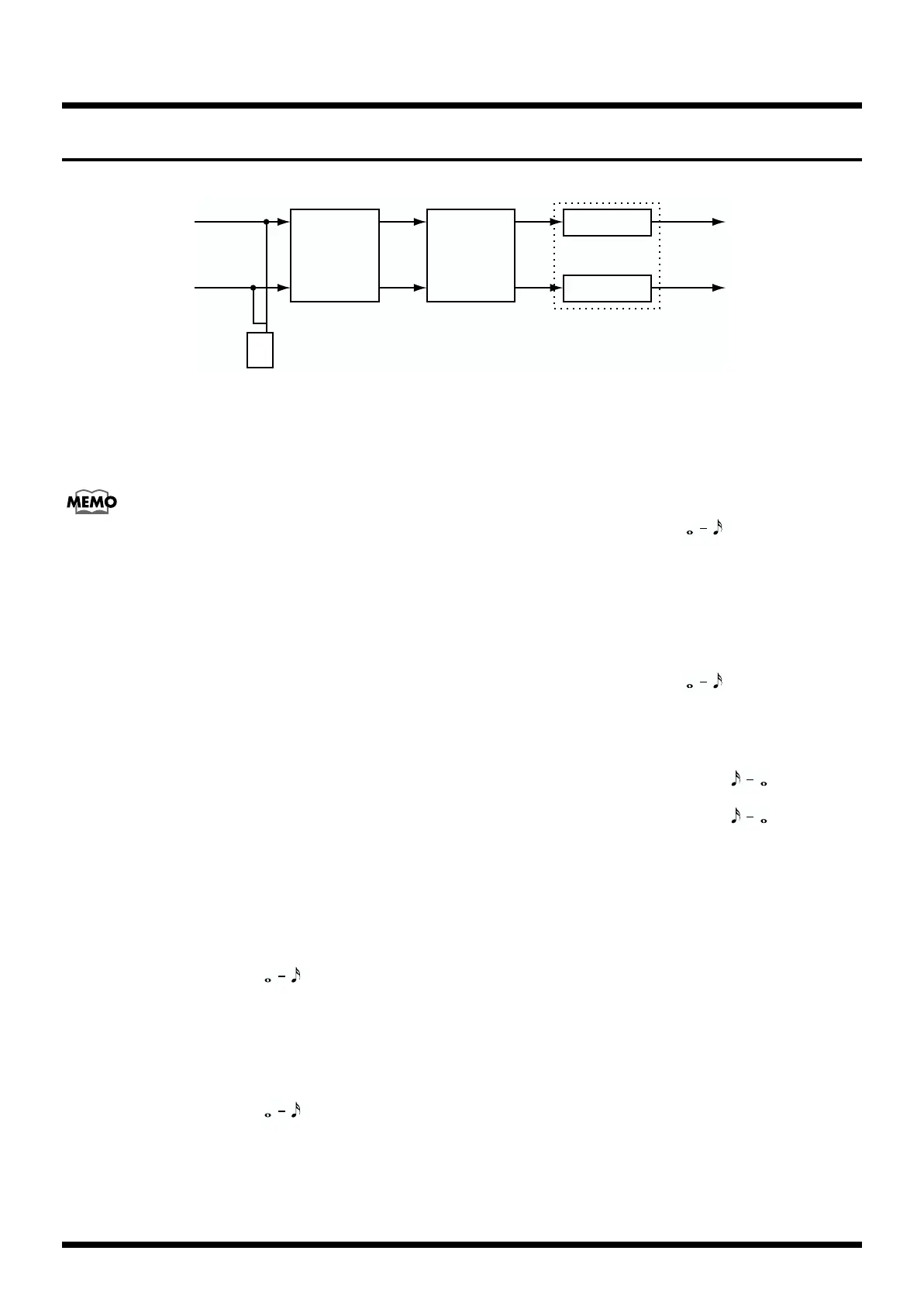

10 ISOLATOR
fig.4-229
A three-band isolator divides the input signal into three frequency bands (low / middle / high), and allows you to extract or
delete each frequency band.
An effect such as chorus or slicer can be applied to the extracted sound.
MOD: MODULATION lets you select one of the
following effects.
MOD: PH (Stereo Phaser)
FL (Stereo Flanger)
CE (Stereo Chorus)
SL (Stereo Slicer)
3 BAND ISOLATER
EFFECT OFF, ON
AntiPHASE LowLEVEL 0–100
AntiPHASE MidLEVEL 0–100
LOW MIX SWITCH OFF, ON
MID MIX SWITCH OFF, ON
LOW LEVEL -60–+4 (dB)
MID LEVEL -60–+4 (dB)
HIGH LEVEL -60–+4 (dB)
MOD (Modulation)
EFFECT OFF, ON
SELECT PH, FL, CE, SL
<PH: STEREO PHASER>
TYPE 4–12 (STAGE)
RATE 0–100, BPM:
DEPTH 0–100
MANUAL 0–100
RESONANCE -100–+100
SEPARATE 0–100
STEP OFF, 1–100
<FL: STEREO FLANGER>
RATE 0–100, BPM:
DEPTH 0–100
MANUAL 0–100
RESONANCE 0–100
SEPARATE 0–100
GATE OFF, 1–100
<CE: STEREO CHORUS>
POLARITY SYNC, INVERT
RATE 0–100, BPM:
DEPTH 0–100
PRE DELAY 0.0–40.0 (msec)
LOW CUT FLAT, 55–800 (Hz)
HIGH CUT 700–11k (Hz), FLAT
EFFECT LEVEL 0–100
<SL: STEREO SLICER>
PATTERN P01–P20
RATE 0–100, BPM:
TRIGGER SENS 0–100
STEREO DELAY
EFFECT OFF, ON
DELAY TIME [L] 0–1400 (msec), BPM:
FINE TIME [L] 0–20 (msec)
DELAY TIME [R] 0–1400 (msec), BPM:
FINE TIME [R] 0–20 (msec)
FEEDBK [L] 0–100
FEEDBK [R] 0–100
FX LEVEL 0–120
DIR LEVEL 0–100
HIGH DAMP GAIN -50–0 (dB)
HIGH CUT FILTER 700–11 k (Hz), FLAT
MASTER
<MASTER>
LEVEL 0–100
BPM 40–250, MIDI, GLOBAL
<FV: FOOT VOLUME>
FOOT LEVEL 0–100
Input L
Input R
Output L
Output R
DELAY L
DELAY R
FV
3 BAND
ISOLATOR
MOD
