44
Section 3. Overall Settings (Utility)

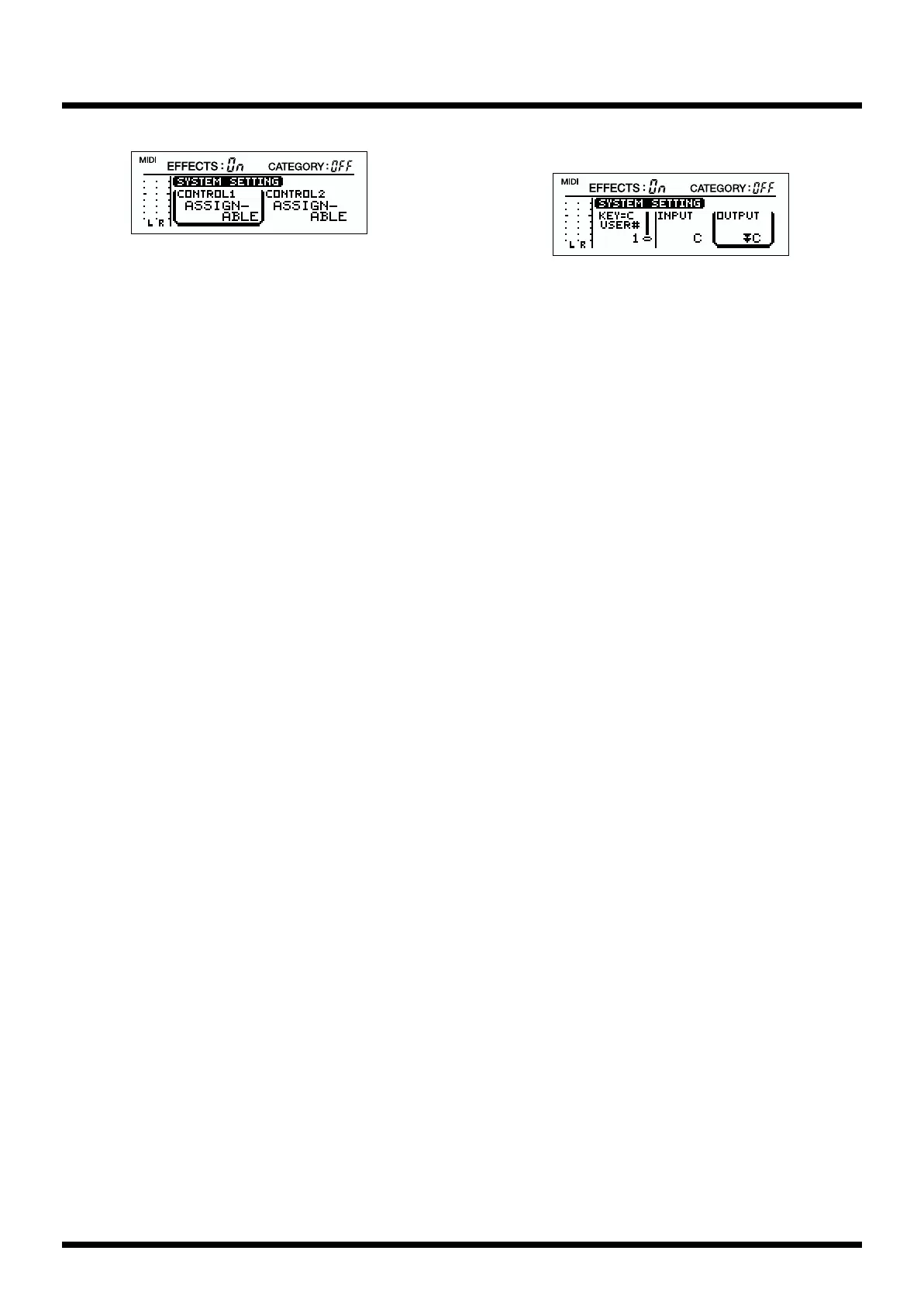

fig.3-10
CONTROL 1, 2
EFFECTS ON/OFF, TUNER, NUMBER DOWN,
NUMBER UP, ASSIGNABLE
You can specify the foot switch functions when the foot
switch is connected to CTL 1,2 jack.
* For foot switch connections and settings, refer to “Connecting
an expression pedal or foot switch” (p. 16) and “The result of
operating a foot switch” (p. 34).
EFFECTS ON/OFF:
The jack will function as a remote jack for turning EFFECTS
on/off. Connect a momentary-type foot switch (optional: FS-
5U etc.)
TUNER:
The jack will function as a remote jack for turning the tuner
on/off. Connect a momentary-type foot switch (optional: FS-
5U etc.)
NUMBER DOWN:
The jack will function as a remote jack for decreasing the
Patch number. Connect a momentary-type foot switch
(optional: FS-5U etc.) (p. 20)
NUMBER UP:
The jack will function as a remote jack for increasing the
Patch number. Connect a momentary-type foot switch
(optional: FS-5U etc.) (p. 20)
ASSIGNABLE:
The jack will function as a controller jack for the Control
Assign function. Connect the type of foot switch that is
appropriate for the control target you select.
Connecting two foot switches (optional) and a
PCS-31 connecting cable (optional)
Two control functions (CONTROL 1 and CONTROL 2) can
be controlled by foot switch.
Connecting one foot switch
One control function (CONTROL 1) can be controlled by foot
switch.
Creating a user scale
fig.3-11
If the Harmonist function (p.101) does not produce the
harmony you intend, you can create your own User Scale to
produce the desired harmonies.
Up to 5 user scales can be created.
For details refer to “HARMONIST: Creating a user scale” (p.
101).
* The user scale will have no effect if you are using a patch whose
algorithm does not include the Harmonist, or if the Harmonist
is turned off.
