9E-926 36 SmartControl™ Meter & TouchPoint™
Operation Instructions

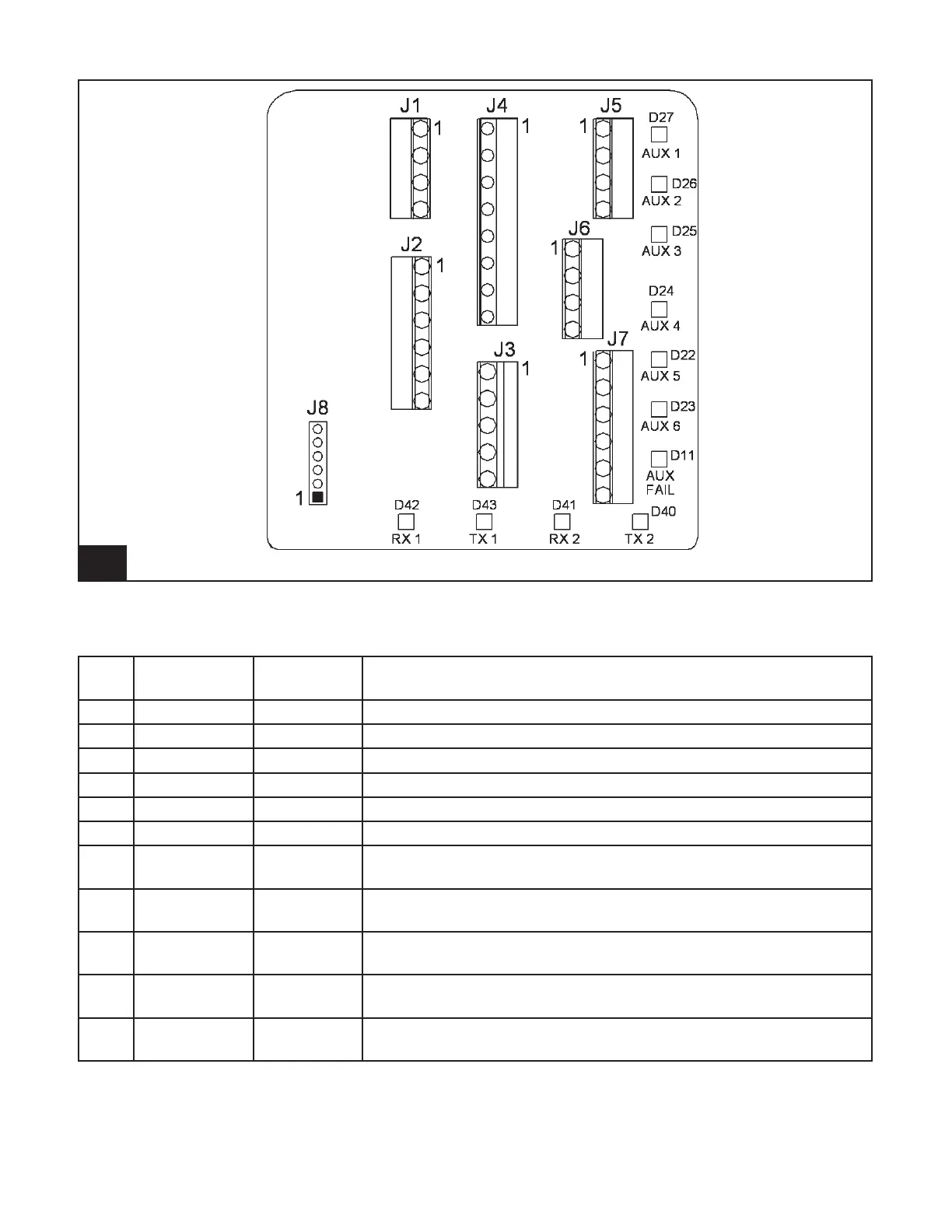

27a. TouchPoint Connector and Diagnostic LED Locations l926_27a
Table 2b: TouchPoint, Diagnostic LED Indicators
Item Reference
Designation
Descrip-
tion
Function
1 D27 AUX 1 Diagnostic LED, turns on when Aux output is on
2 D26 AUX 2 Diagnostic LED, turns on when Aux output is on
3 D25 AUX 3 Diagnostic LED, turns on when Aux output is on
4 D24 AUX 4 Diagnostic LED, turns on when Aux output is on
5 D22 AUX 5 Diagnostic LED, turns on when Aux output is on
6 D23 AUX 6 Diagnostic LED, turns on when Aux output is on
7 D11 AUX FAIL Diagnostic LED, turns on when one of the Aux outputs has a
fault
8 D34 RX 1 Receive LED, turns on when control is receiving data from other
controls on the PRISM-Main
9 D43 TX 1 Transmit LED, turns on when the control is receiving data from
other controls on the PRISM-Main
10 D41 RX 2 Receive LED, turns on when control is receiving data from other
controls on the PRISM-Sub
11 D40 TX 2 Transmit LED, turns on when the control is receiving data from
other controls on the PRISM-Sub
