9E-926 44 SmartControl™ Meter & TouchPoint™
Operation Instructions

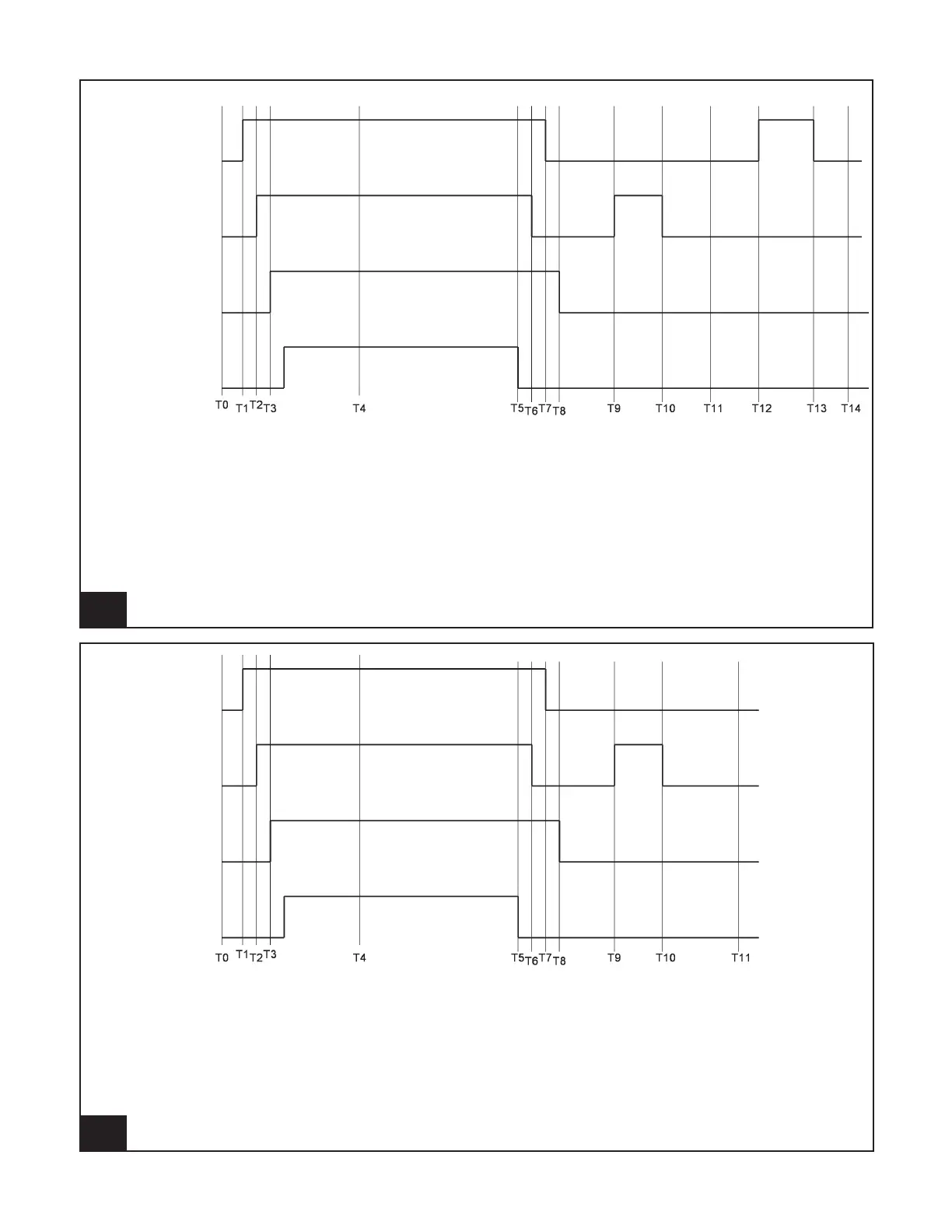

28. Typical Milking with Claw Drop and Claw Lift Enabled l925_9
Extended
Retracted
Open
Closed
On
Off
On
Off
Cylinder
Shutoff
Pulsation
Milk Flow
T0 = detached position and ready to milk a cow
T1 = Attach button pressed or milking unit is raised if using QuickStart
T1 to T2 = Vacuum On Delay
T1 to T3 = Pulsation Start Delay
T1 to T4 = Let Down Delay
T5 = milk ow is below Takeoff Flow Rate
T6 to T7 = Retract Delay
T6 to T8 = xed time that pulsation stays on after detach
T6 to T9 = Milk Sweep Delay
T9 to T10 = Milk Sweep On Time
T1 to T11 = Maximum Milking Time
T13 = Claw Lift that was initiated by previous detacher
T6 to T14 = Claw Lift Timeout
29. Typical Milking without Claw Drop and Claw Lift l925_10
T0 = detached position and ready to milk a cow
T1 = Attach button pressed or milking unit is raised if using QuickStart
T1 to T2 = Vacuum On Delay
T1 to T3 = Pulsation Start Delay
T1 to T4 = Let Down Delay
T5 = milk ow is below Takeoff Flow Rate
T6 to T7 = Retract Delay
T6 to T8 = xed time that pulsation stays on after detach
T6 to T9 = Milk Sweep Delay
T9 to T10 = Milk Sweep On Time
T1 to T11 = Maximum Milking Time
Extended
Retracted
Open
Closed
On
Off
On
Off
Cylinder
Shutoff
Pulsation
Milk Flow
