Page 103 of 113
Name:
Enable the user to define the name for each Profile with the maximum limit of 18
Characters. Select “Name”, then Press “Enter”, soft key, a keyboard with several keys
appears. Press “Shift” to select special characters. Press “Caps” to select capital letters.
Press soft key “OK” after entering a new Profile name.
4.3.1.2.1 Ramp & Dwell:
Many applications need to vary temperature or process value with time. Such
applications need a controller which varies a set point as a function of time. This Process
Control Process Control Card can do this. The set point is varied by using a set point
profiler. The profile is stored as a series of “ramp” and “dwell “segments, as shown below.

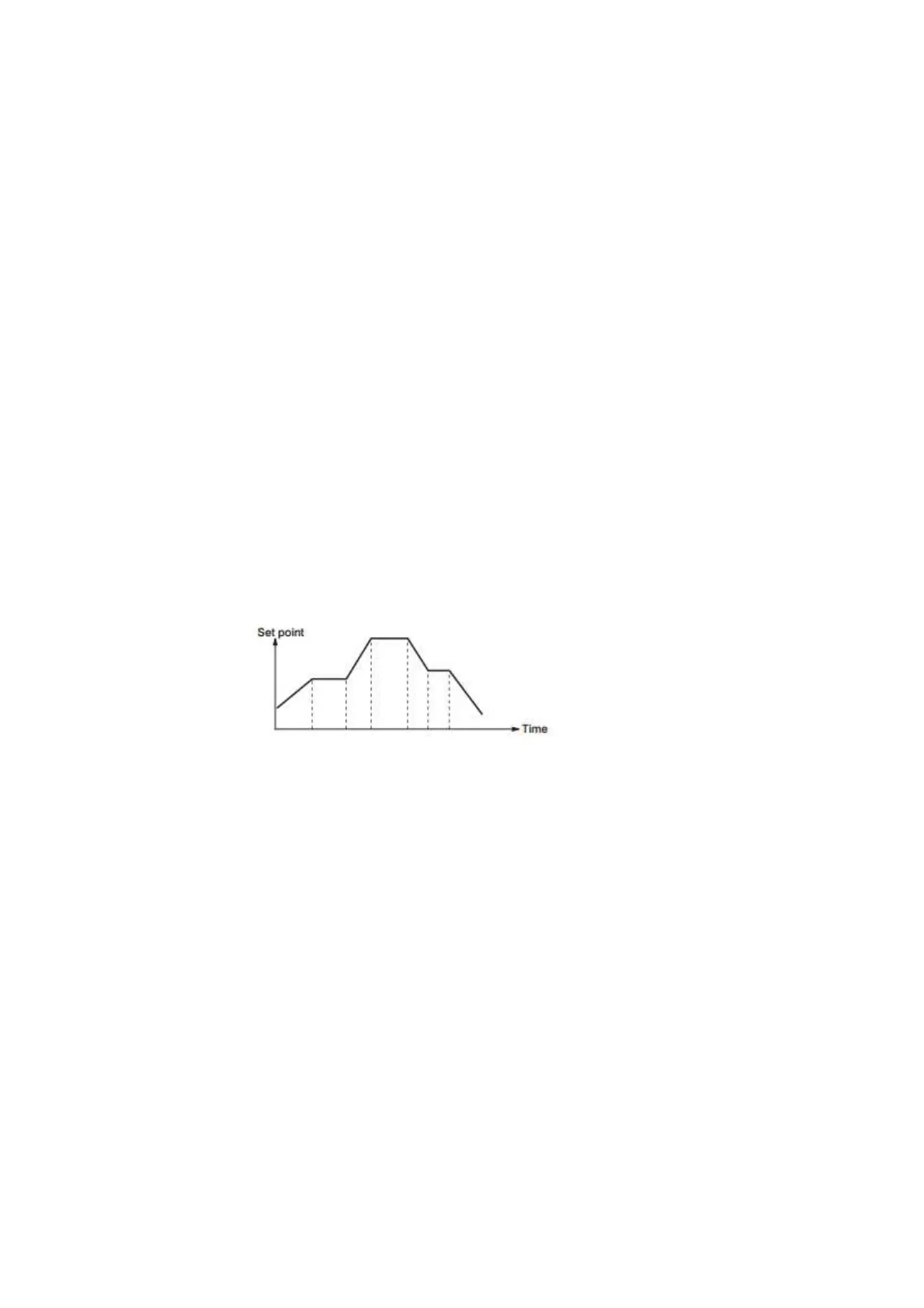

Figure 4-59.Set Point Profile
In each segment you can define the state of up to 3 event outputs which can drive either
relay, logic or triac outputs, depending on the modules installed. A profile is executed either
once, repeated a set number of times or repeated continuously. If repeated a set number of
times, then the number of cycles must be specified as part of the profile.
The below are the available types of segment
Ramp:
Ramp to a new set point at a set rate or in a set time
Time to Target:
Ramp to a segment with a Set point in a set time.
Dwell:
Dwell for a set time
