4.3.1.2.2.5 Time to Target Segment Parameters:

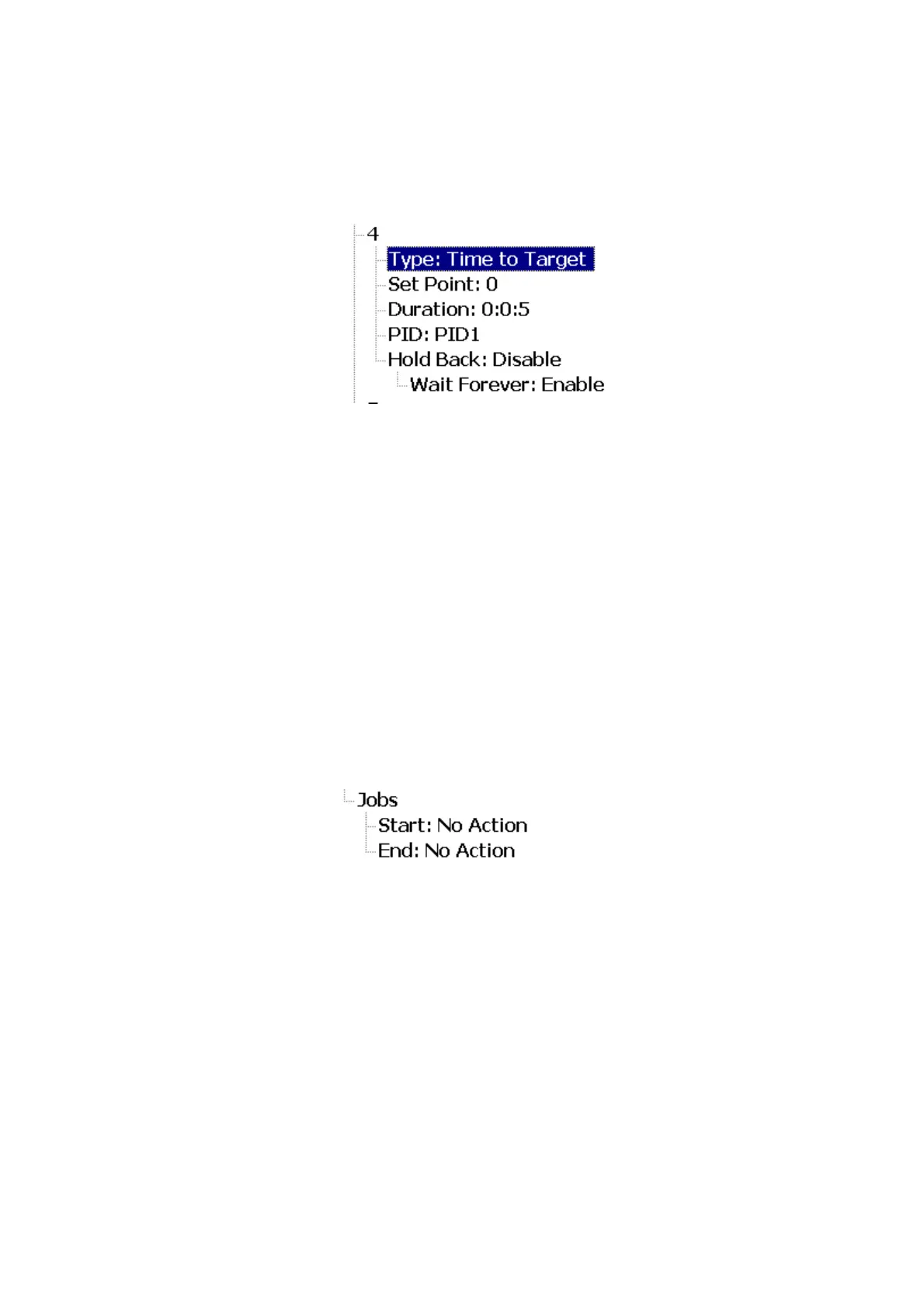

Figure 4-67.Time To Target Segment
This is similar to ramp segment with automatic calculation of ramp rate by the Process
Control Card with the reference of Set point and duration given by the user.
Set Point:
Set Point to be reached in this segment. Of the segment
Duration:
Duration of the segment to reach the set point
PID:
The PID Values to be used for this RAMP is PID1 or PID2.
Holdback:
Hold back actions to be enable or not. Refer the details in Ramp segment section
for detailed explanation.
4.3.1.2.3 Start/End Jobs
Figure 4-68.Profile Start/End Job
Start: Define the job to be done at the start of the Profile(Ramp &Dwell)
End: Define the job to be done at the End of the Profile(Ramp &Dwell)
The details of the jobs available in the Recorder user manual.
4.3.1.2.4 Start/Stop Profile(Ramp &Dwell)
The Profile can be start ,Hold or stop from the Real time display page of process control
module.The Profile can be selected and run from the Run button on the display page.Press Run
and select the profile to be run then press ok to start the Profile.
