3 Process Control Card Features
This Chapter will explain the features of the Process Control Card.
3.1 Configuration
The Process Control Card can be configured by using the tree type configuration layout
of the Paperless Recorder easily. This is much useful for the user to configure all necessary
configurations without missing any configuration.

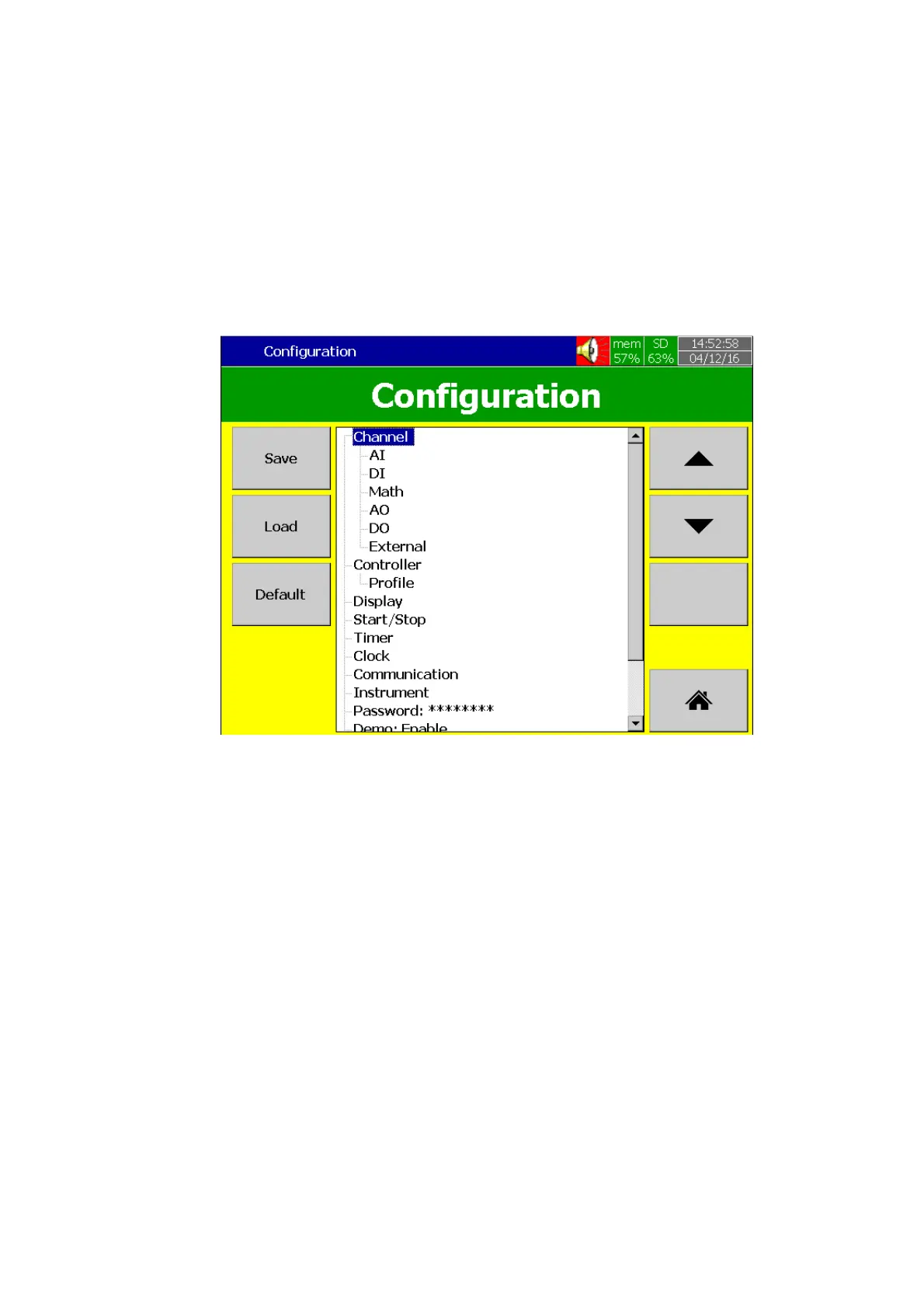

Figure 3-1.Configuration Layout
3.2 Controller
The PID Module includes PID Controller function in the Paperless recorder and log the
data .The PID Control module is used to control the process.
3.3 Ramp & Dwell Function
The PID Control Module includes Ramp & Dwell function. It is useful to control the process
with varying set point time to time. There are 50 different Profiles can be configured with 32
Segments/Profile with the limit of 1000 Segments totally.
3.4 On Field Calibration
The Device allows the user to do on field calibration for the device. No need to send the
device to factory for Calibration
