Brainchild PR Series User Guide

Page 36 of 113

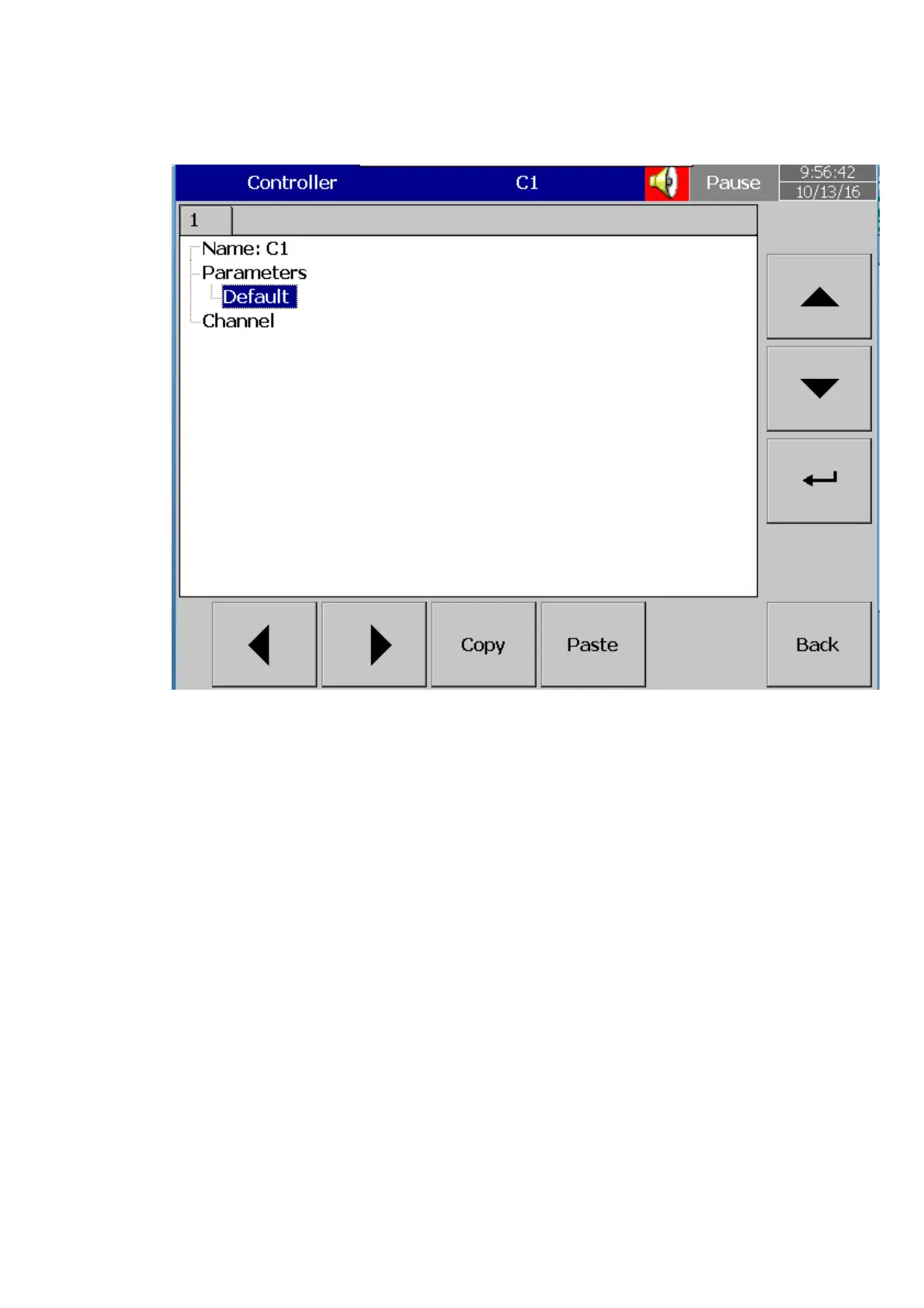

Figure 4-21.Process Control Card Channel Configuration
4.3.1.1.1 Name
Enable the user to define the name for each channel with the maximum limit of 18
Characters.
Select “Name”, then Press “Enter”, soft key, a keyboard with several keys appears. Press
“Shift” to select special characters. Press “Caps” to select capital letters. Press soft key “OK” after
entering a new channel name.
4.3.1.1.2 Parameter
This will allow the user to configure the PID Control function on the Process Control Card.
Press Parameter and then press Enter Soft key to access the parameter configuration table. In
the Configuration table the user can edit the parameters of the Process Control Card as per their
requirement by selecting the desired parameter using the UP DOWN key and then press the
Enter Soft Key. The Enter Soft key will be disabled for the restricted parameters.
