Page 74 of 113

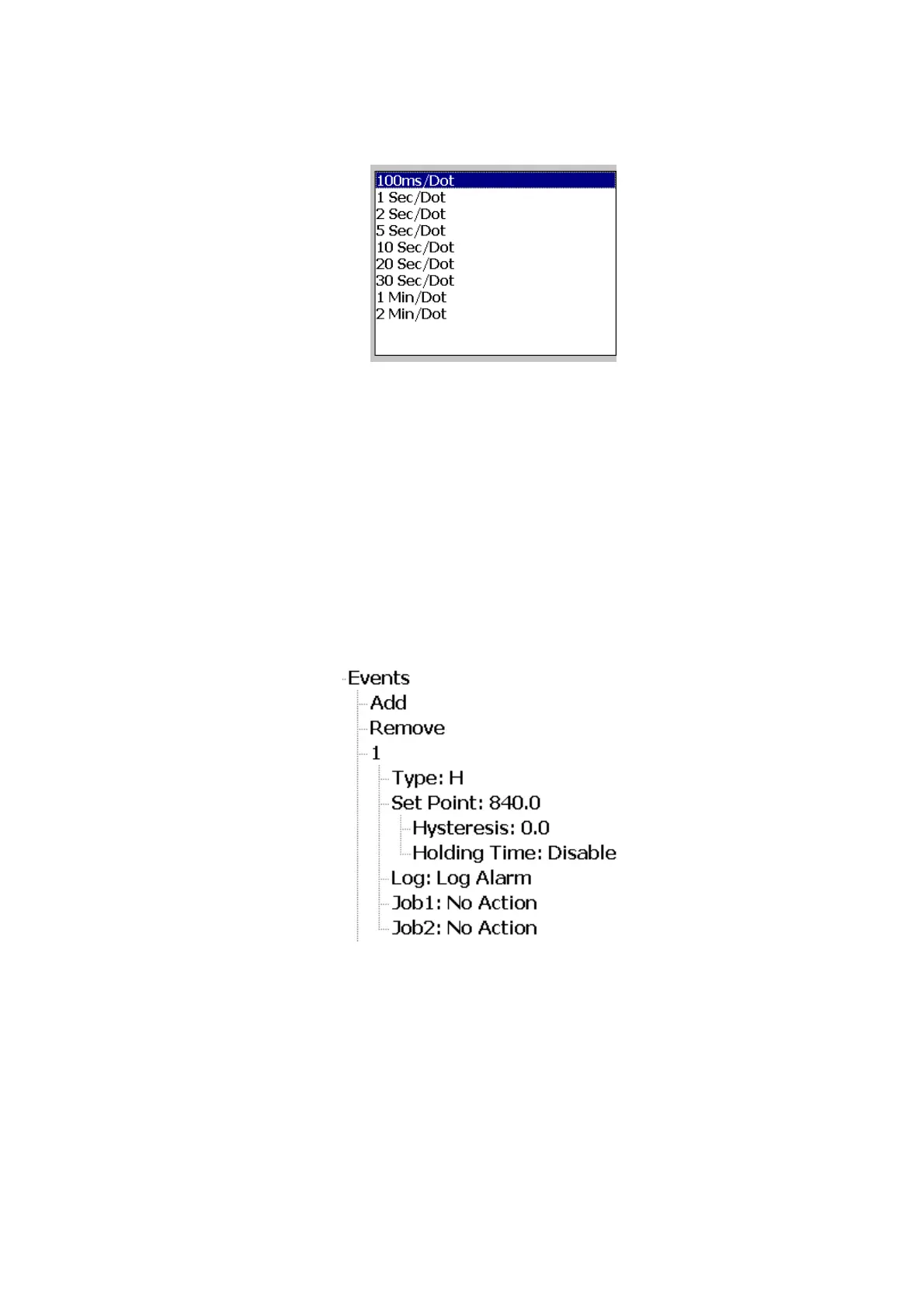

Figure 4-25.Log Speed
Modbus Scale:
Scale for reading the Analog Input Values through Modbus
Events
Events are generally used to generate Alarms. The Events can also be used to process
Digital Output, Timer, Counter, Totalizers and to generate report.
There are maximum 5 Events can be added for Analog Inputs.
Press Add to Add the Events. Press Remove to Remove the Events.
Figure 4-26.Events with Job
Type:
There are different types are available to select for Job of Event or Alarm. The available
types are H, L, HH, LL, Dev+, Dev-, and Error
H: High limit. When the process is over high limit, the alarm or job is actuated.
