Page 23 of 113
4 Process Control Card Functions
This Section will explain the functions of Process Control Card. The user can configure the
device as per their requirement by using the user friendly configuration menu.

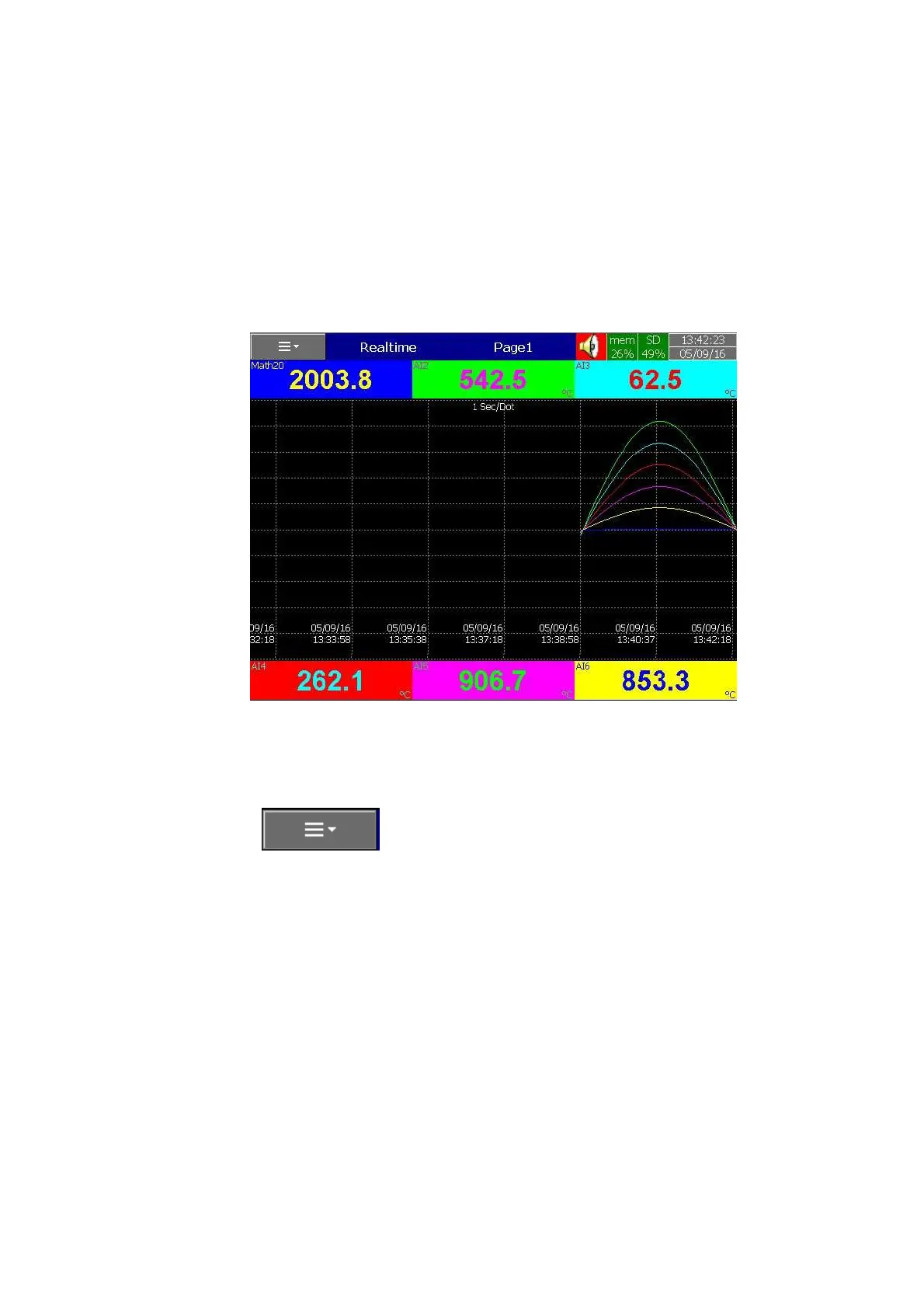

The below is the home screen of paperless recorder. This screen will be displayed when
the device powered on.
Figure 4-1.Home Screen
4.1 Menus
Press Soft key to access the menu in the furnace controller. The below
menu screen will show the available menus.
