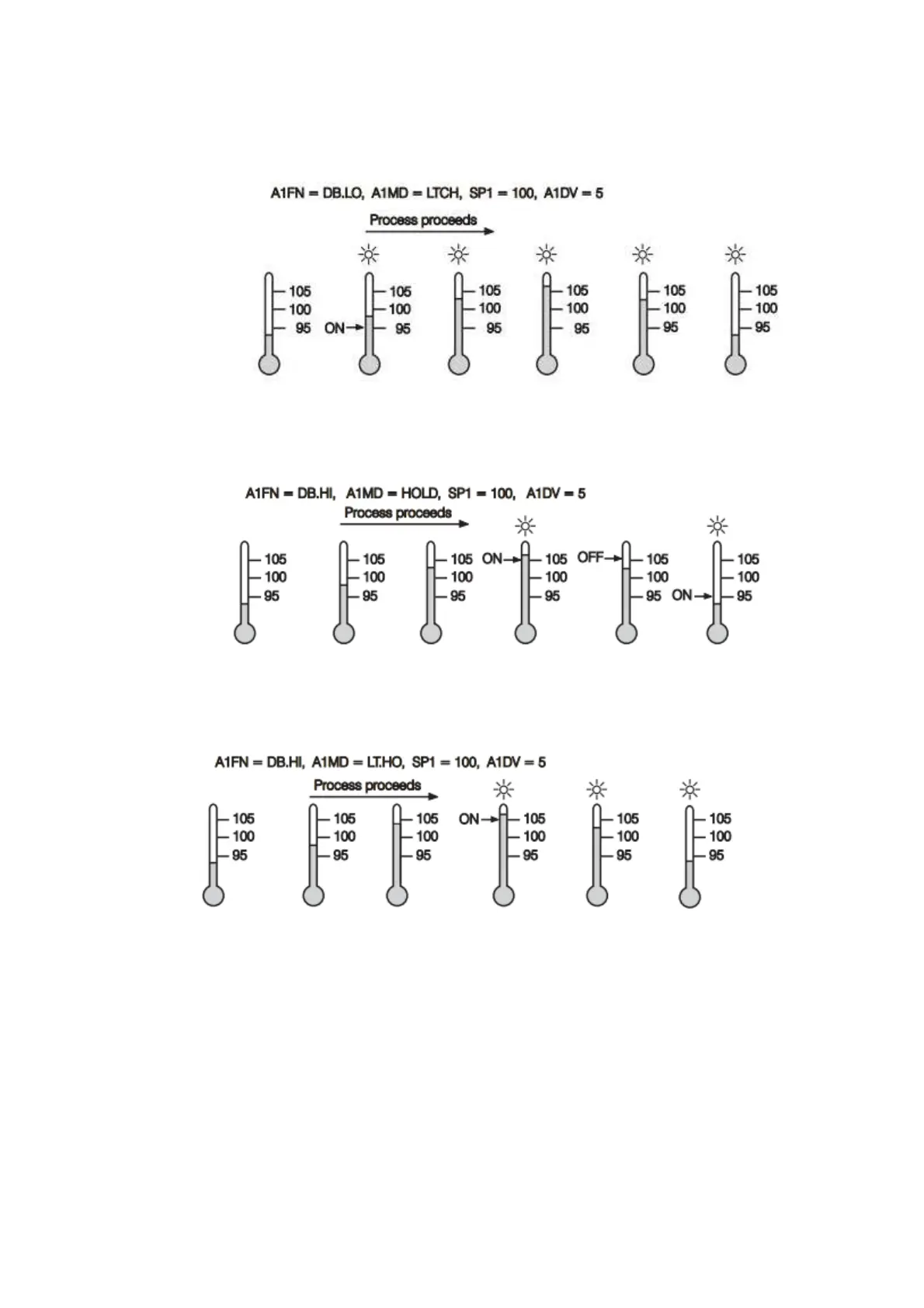

Figure 4-45.Latching Deviation Band Alarm
Figure 4-46.Holding Deviation Band Alarm
Figure 4-47.Latching/Holding Deviation Band Alarm
4.3.1.1.4.15 Event Input
The Event input accepts a digital type signal. Three types of signals can be connected to
event input. These are
Relay or switch contacts
Open collector pull low
