To achieve th
is function set
the following p
arameters
in the
PID Contro
l setup m
enu and co
nfigure
the Reco
rder as
per the r
ecording r
equireme
nts.
FUNC=BA
SC (Basic functio
n )
IN1=K_TC
IN1U= C
DP1=1_D
P
OUT1=REVR
O1TY=RELY
CYC1=1
8.0
O1FT=BPLS
A1FN=TIMR
A1FT=ON
SELF=NON
E

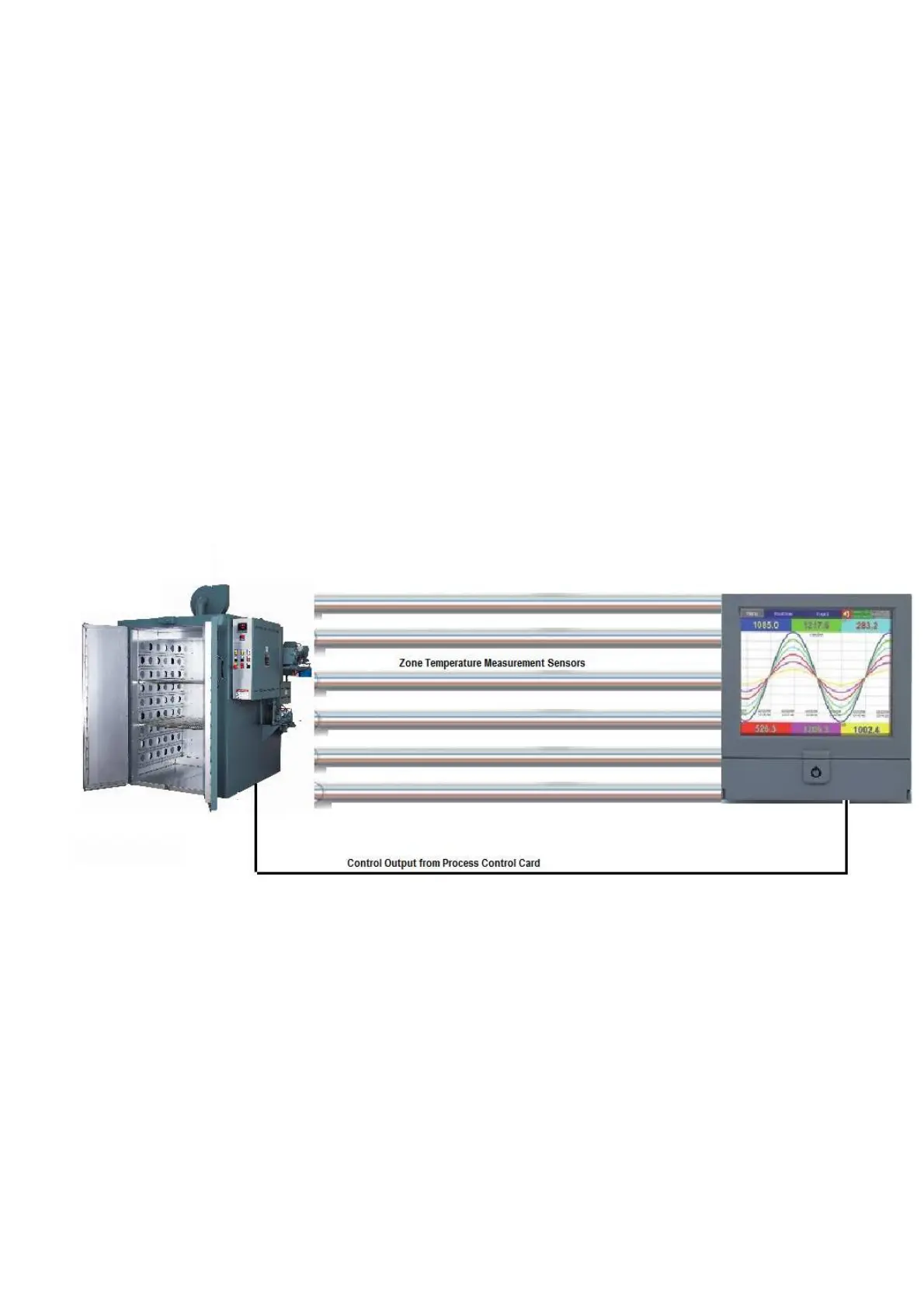

Figure 5-2. Oven Control
with Zone Temperature Recording
Sy
