4.3 Process Control Card Configuration
This Section will explain the configuration for Process Control Card functions. Press
(Menu) and then press More then press Config to Enter to Configuration Screen. A
Tree type configuration will be displayed for the easy configuration. In addition to that Save Load,
Default and Home Soft keys also available.

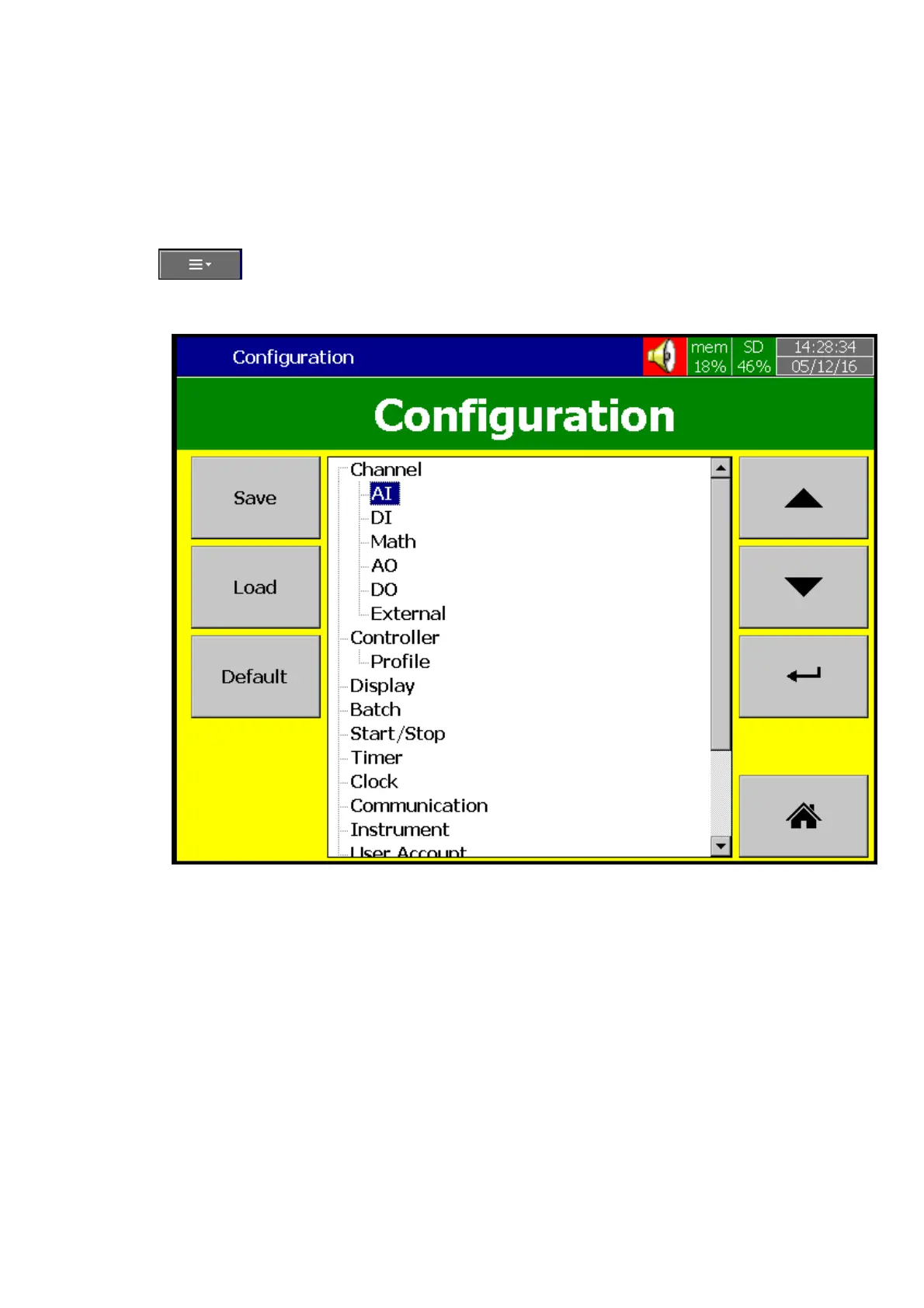

Figure 4-19.Tree Type Configuration Layout
Soft Keys
The below Soft Keys are available for the user to configure.
