Brainchild PR Series User Guide

Page 32 of 113

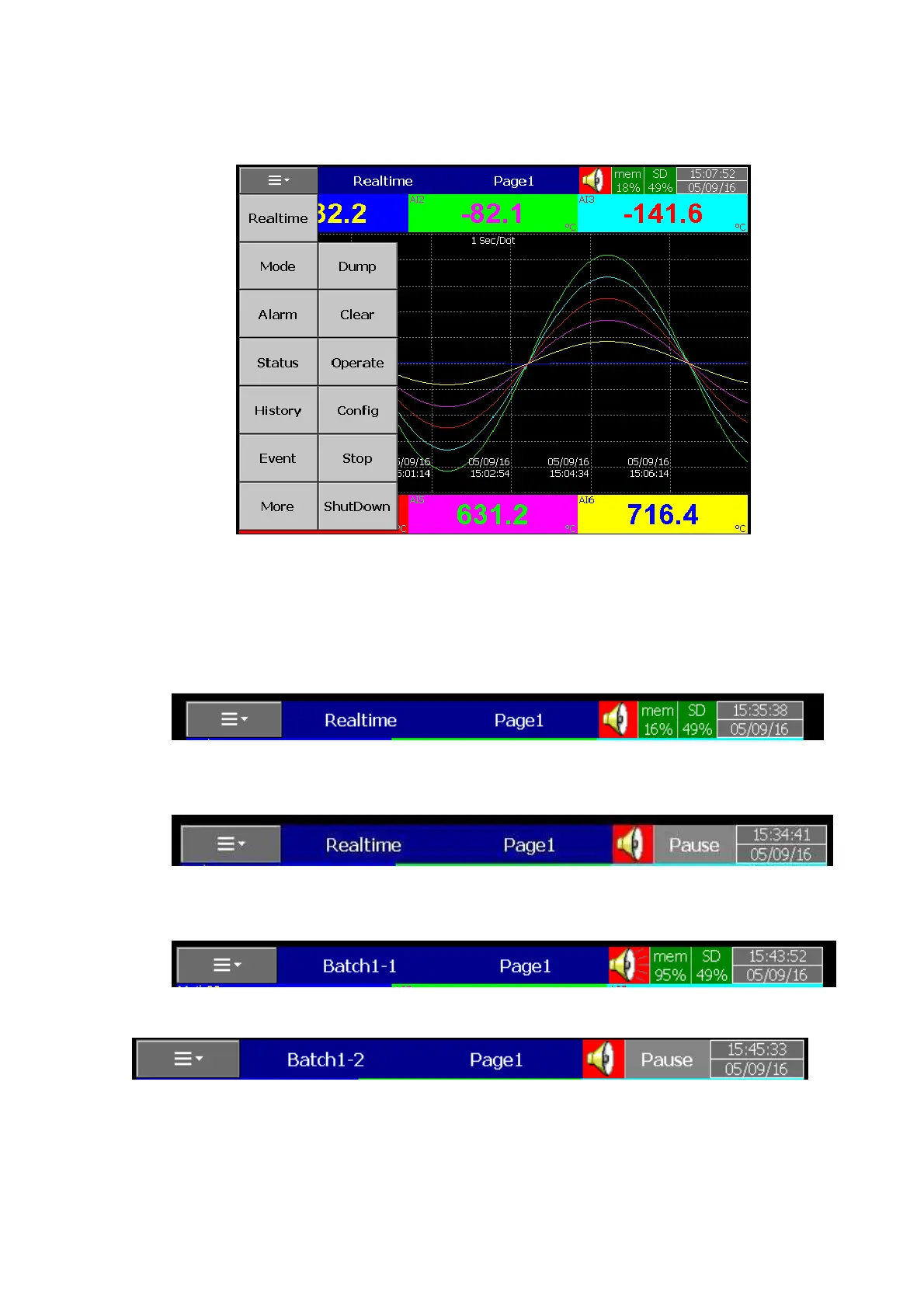

Figure 4-14.More Menu
4.2 Status Bar
The Status bar will be shown on top of every page. This will show the status of the memory,
Alarm, logging status with real time Date and Time of the System.
Figure 4-15.Status Bar During Logging
Figure 4-16.Status Bar During Logging Stopped
Figure 4-17.Status Bar during Logging with Batch function
Figure 4-18.Status Bar During Logging Stopped with Batch Function
