4.3.2 Cooling System
The chassis is equipped with six long-life fans that suck in air from front of the chassis.
The air exits at the back of the unit. The fans are temperature controlled, allowing
them to run at an optimum speed. Venting holes at the sides of the chassis provide an
optional air intake, ensuring good aerodynamical properties of the cooling air flow. It
is recommended, but not essential, that these venting holes are not covered.
4.3.3 ECDC Power Supply
The ECDC unit is equipped with two -48V DC / 50W power inlet connectors. The power
plug is a male 3-PIN D-sub(15) connector. Matching female plugs are supplied with the
ECDC unit. This plug should be soldered to the power cable in accordance with the
drawing below.

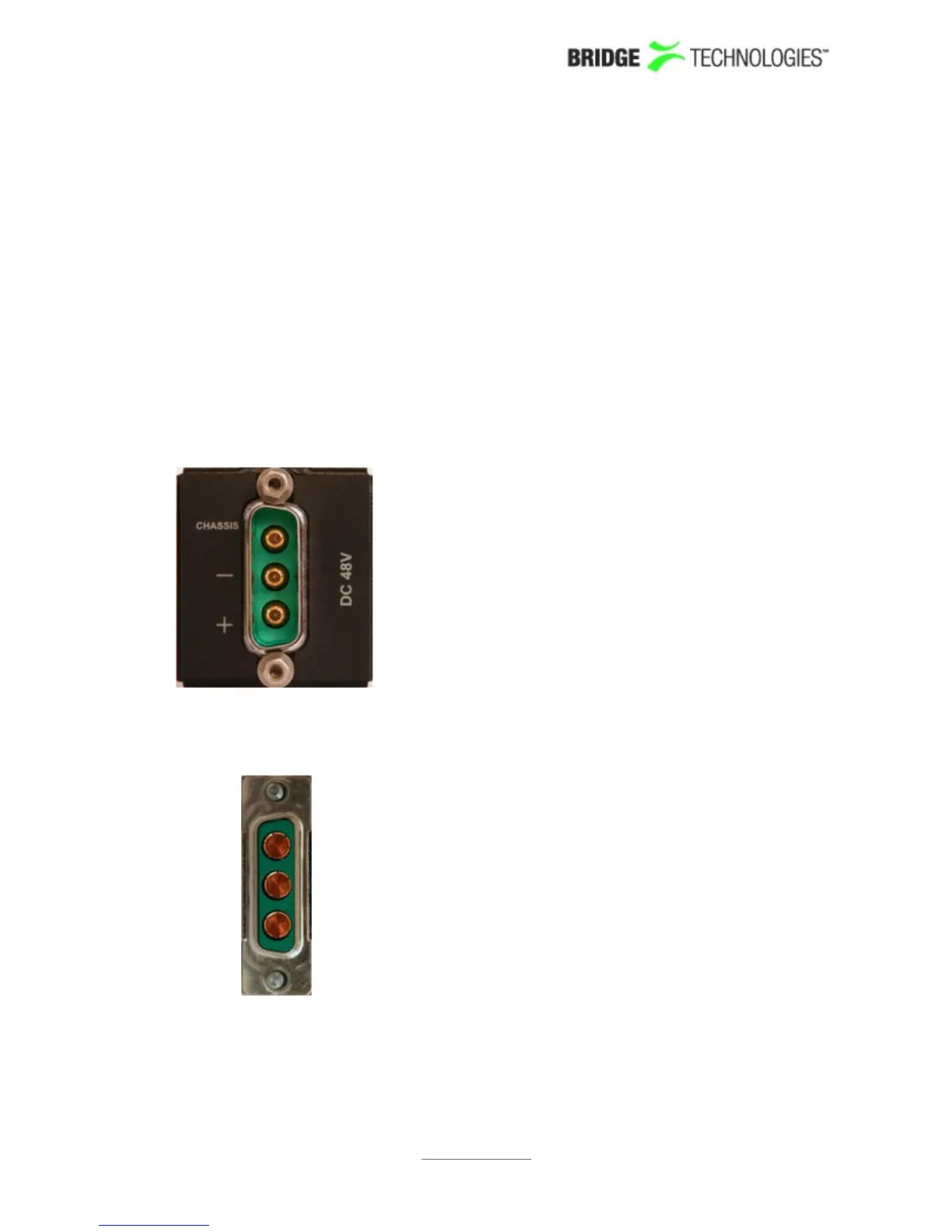

The DCC Power conector on the chassis.
------------- A3 - Gnd
------------- A2 - Minus
--------------A1 - Plus
Soldering the Female 3-PIN D-sub(15) Connector to the Power Cable.
