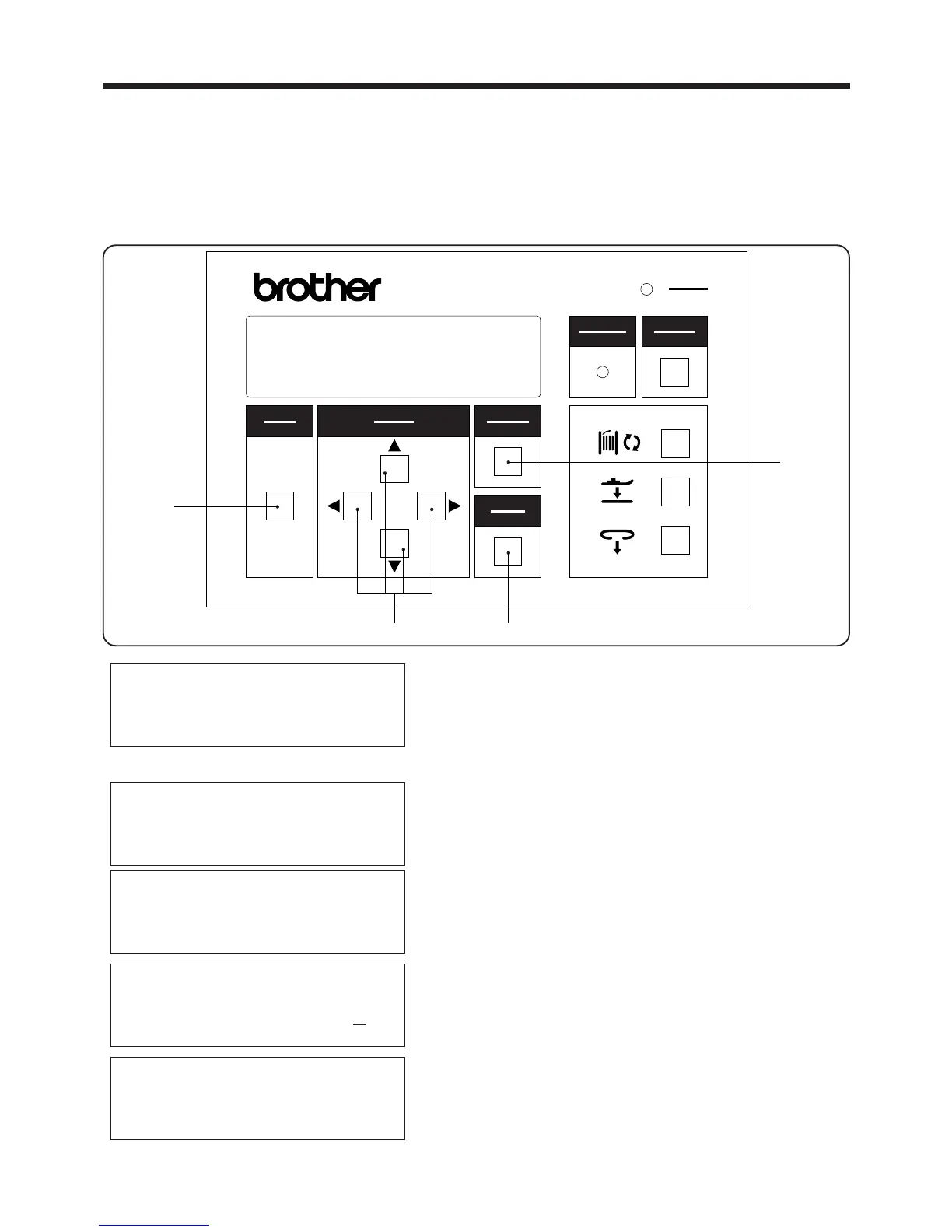

3. PANEL OPERATION
3-2-7. Setting the X scale and Y scale
1. Press the MODE switch w to select AUTO mode.
2. While pressing the SELECT switch e, press the
MODE switch w.
* This will change the mode to ADJUSTMENT
mode.
3. Use the▲and ▼SELECT switches e to move the
pointer "◆" so that "X-Y/program" is selected, and
then press the ENTER switch t.
4. Use the ▲ and ▼ SELECT switches e again to
move the pointer "◆" so that "X scale" or "Y scale"
is selected.
5. While using the SELECT switch eto move the
cursor "-" , press the ▲ and▼SELECT switches e
to set the scale setting.
* If the CANCEL switch r is pressed, the
old previously-set scale ratio will appear again
on the display.
6. Press the ENTER switch t.
* The new scale ratio setting for the X scale or Y
scale will appear on the display.
* At this time, the feed mechanism will return to
the sewing home position.
・ This procedure is used to set the enlargement and reduction ratios for the sewing pattern in
the X direction and Y direction.
・ The setting ranges for both the X scale and Y scale are between 45% - 150%. However,because
the size of the pattern will be checked against the sewing area, it may not be possible to set
the scale to the maximum setting in this range.
▲
▲
AUTO MODE
◆ 2nd bobbin counter
Speed
Loop length
ADJUSTMENT(/)
Loop/feed
◆ X-Y/program
X-Y/test feed
X-Y/PROGRAM/(ADJ)
Program No.
◆ X scale (%)
Y scale (%)
X-Y/PROGRAM/(ADJ)
Program No.
◆ X scale (%) zz/
Y scale (%)
― 20 ―
BAS-705
選択
SELECT
モード
MODE
確定
ENTER
リセット
RESET
電源
POWER
取り消し
CANCEL
警告
WARNING
BAS-705

r
te
w
X-Y/PROGRAM/(ADJ)
Program No.
◆ X scale (%) z//
Y scale (%)
