2. PREPARATION
2-4.Installing the auxiliary legs
― 5 ―
BAS-705

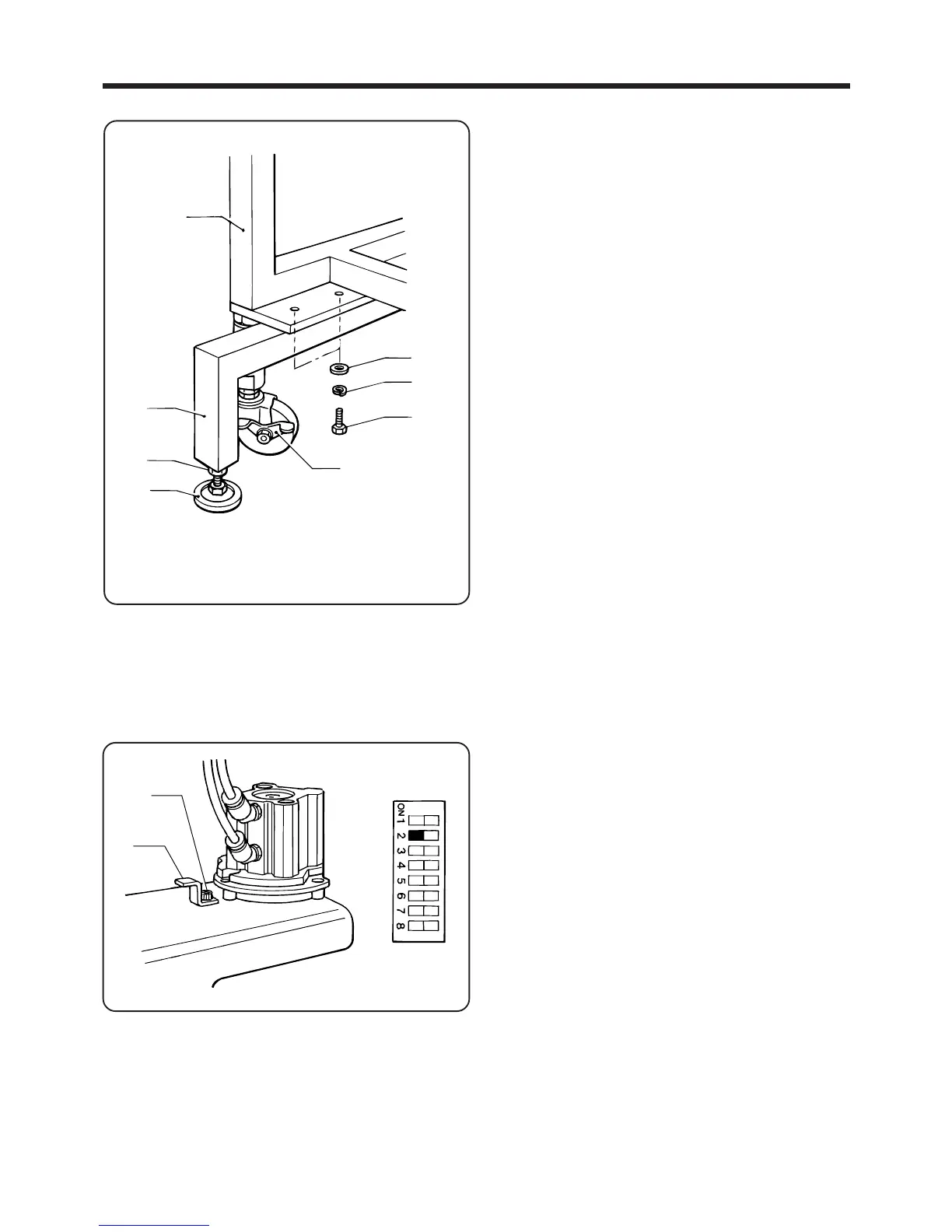

1. Remove the two auxiliary legs w which are secured
to leg frame q.
2. Re-install the two removed legs w as shown in the
illustration at left, and secure them with the bolts e,
spring washers r and flat washers t which were
removed before.
3. Loosen the nuts u (in two places) and turn the level
adjusters i to adjust the height of the casters y
above the floor.
NOTE: After adjusting, securely tighten the nut u.
q
w

i
t
r

y 
e
u
2-5. Checking the loop cutting
NOTE: At the time of shipment from the factory, the V-
cutting cylinder is in the lock position (flat-end
cutting).
■ Changing to V-shaped cutting
1. Remove the q, set the knife stopper w to the posi-
tion shown in the illustration at left, and then re-tighten
the bolt q.
2. Check that DIP switch No.1-2 on the panel is set to
“ON”.
No 1
w
q
