Brother BAS-705 - X-Y Movement

3. PANEL OPERATION
3-2-10. X-Y movement
― 23 ―
BAS-705
・ This procedure lets you set the parallel movement of the pattern in the X feed direction
and Y feed direction.
・ The setting range is from -1 to +1 in both the X direction and Y direction. However, it may
not be possible to change the setting within this range because an area check will be
carried out when the setting is changed.
AUTO MODE
◆ Loop length
1st bobbin counter
2nd bobbin counter
ADJUSTMENT(/)
Loop/ program
◆ X-Y/ test feed
X-Y/ feed

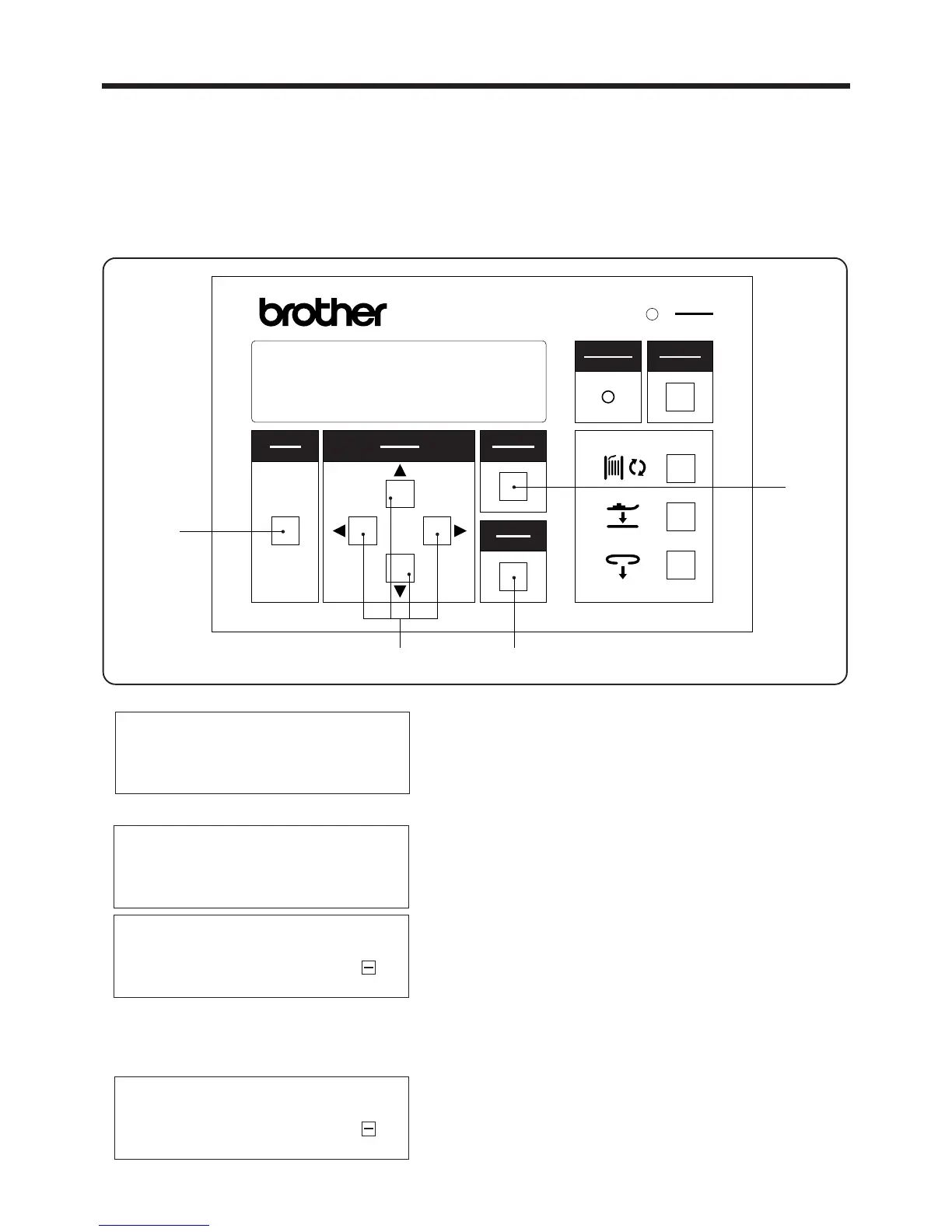

1. Press the MODE switch w to select AUTO mode.
2. While pressing the SELECT switch e, press the
MODE switch w.
* This will change the mode to ADJUSTMENT
mode.
3. Use the▲and ▼SELECT switches e to move the
pointer "◆" so that "X-Y/program" is selected, and
then press the ENTER switch t.
4. Use the ▲ and ▼ SELECT switches e again to
move the pointer "◆" so that "X move" or "Y move"
is selected.
5. While using the SELECT switch e to move the
cursor "-" , press the ▲ and ▼ SELECT switches
e to set the amount of movement.
* If the CANCEL switch r is pressed, the
old previously-set scale ratio will appear again
on the display.
6. Press the ENTER switch t.
* The new scale ratio setting for the X move or Y
move will appear on the display.
▲
X-Y/MOVE/ (ADJ)
Program No.
◆Xmove (mmx10) z/
▲
選択
SELECT
モード
MODE
確定
ENTER
リセット
RESET
電源
POWER
取り消し
CANCEL
警告
WARNING
BAS-705

r
te
w
X-Y/MOVE/ (ADJ)
Program No.
◆Xmove (mmx10) z/
