2. PREPARATION
2-6. Lubrication
CAUTION
― 6 ―
BAS-705
●
Turn off the power switch before starting lubricating, otherwise the machine may operate if the start
switch is depressed by mistake, which could result in injury.
●
Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that
they do not get into your eyes or onto your skin, otherwise inflammation can result.
Furthermore, do not drink the oil or eat the grease under any circumstances, as they can cause
vomiting and diarrhoea.
Keep the oil out of the reach of children.

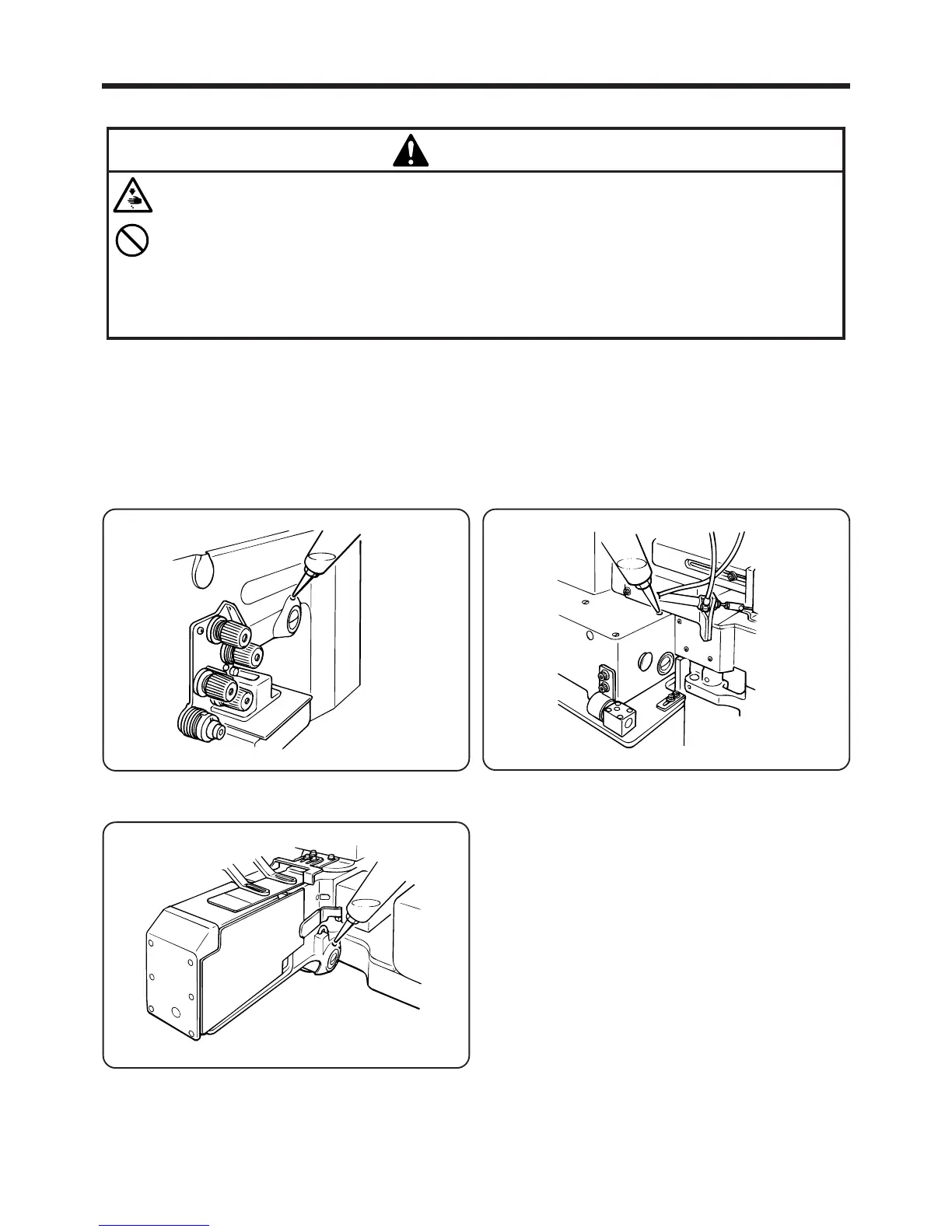

1. Fill the arm-side oil tank with oil. 2. Fill the bed-side oil tank with oil.
3. Fill the oil tank at the side of the lower shaft module
base with oil.
2-6-1. Machine mechanism
NOTE ・Fill the machine with oil when the oil level is down to about one-third full in the oil sight glass.
If oil is not added and the oil drops below this level, there is the danger that the machine may seize
during operation.
・Be sure to let the machine operate for a while after adding the oil.
・Use only specified Brother oil (Nisseki Sewing Lube 10) for the machine oil.
To Next Page
