Brother BAS-705 - Main Circuit Board DIP Switch Functions

SW1
SW2
SW3
SW4 
OFF
Normal operation
Normal operation
ON
Setup function
Sewing data is initialized on startup.
Not available (Should be set to OFF)
Not available (Should be set to OFF)

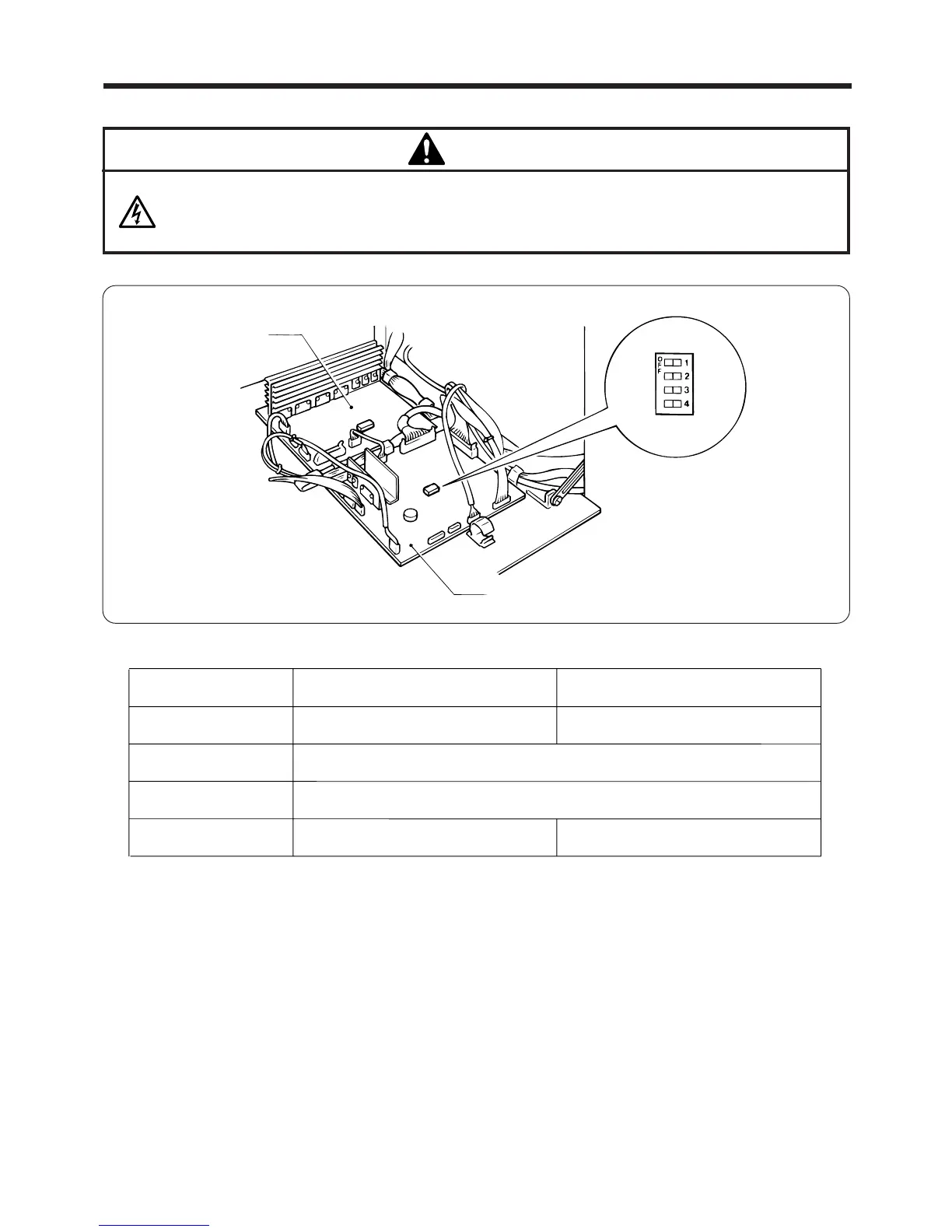

8. DIP SWITCH
8-2.Main circuit board DIP switch functions
― 70 ―
BAS-705
DANGER
・ Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from
the wall outlet before opening the face plate of the control box. Touching areas where high volt
ages are present can result in severe injury.
NOTE: The DIP switches on the X-Y feed circuit board should all be set to OFF.
X-Y feed
circuit board
main circuit board
